HS-2001C can quickly identify the screen 1D/2D code and with very large reading window.
HS-2001C can quickly identify the screen 1D/2D code and with very large reading window.

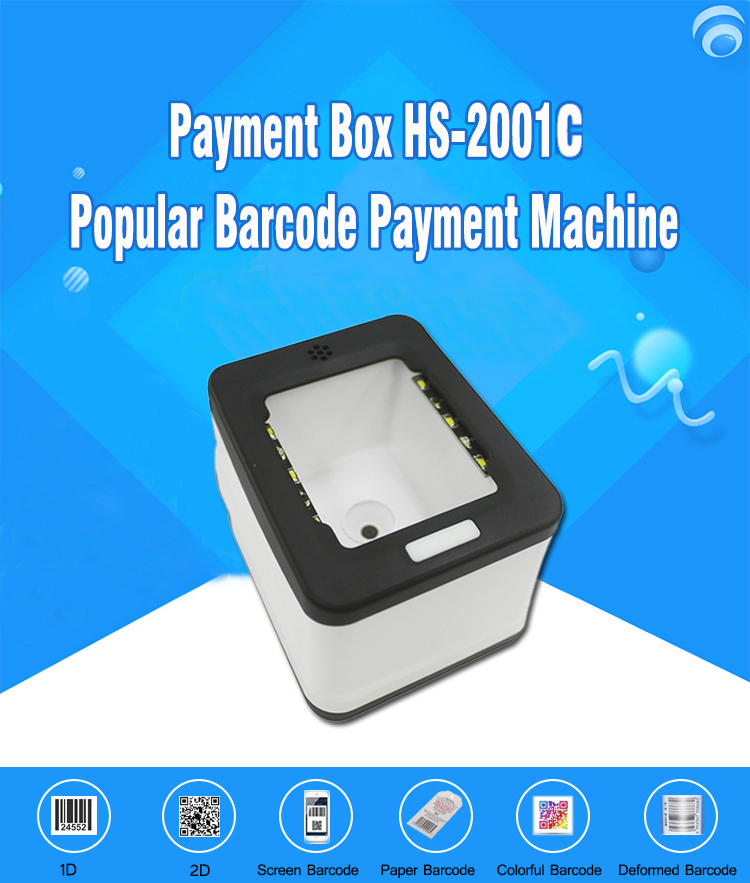

Large Scanning Window Auto Sensing Mobile Payment Box HS-2001C
HS-2001C is an image platform launched by HCCTG and it is especially designed for mobile payment.It's with image-sensing and automatic wake-up function, it can effectively reduce power consumption and wear and tear of core components. No plugins, lightning billing, with non-slip drop design and compatible with a variety of systems, like retail POS, desktop PC, tablets, etc.
Specification
|
Performance |
|
|
Image Sensor |
640×480 CMOS |
|
Ambient light intensity |
0~100000Lux |
|
Symbolize |
1D: Code 128,UCC/EAN-128,AIM 128,EAN-8,EAN-13, ISSN, ISBN,UPC-E,UPC-A,Interleaved 2 of 5,ITF-6,ITF-14,Matrix 2 of 5(European Matrix 2 of 5),Industrial 25,Standard 25,Code 39,Codabar,Code 93,Code 11,Plessey,MSI-Plessey,RSS-14,RSS- Limited,RSS-Expand 2D:PDF417,Data Matrix,QR,Micro QR |
|
Resolution |
≥5mil |
|
Typical Depth of Field |
QR CODE( 30MIL) 0-15CM CODE 128 (10MIL) 0-12CM |
|
Scan Angle |
|
|
Pitch |
±60°@ 0°Roll and 0° Skew |
|
Roll |
360°@ 0°Pitch and 0° Skew |
|
Skew |
±55°@ 0°Roll and 0° Pitch |
|
Symbol Contrast |
≥30% |
|
Interface |
RS-232, USB |
|
Physical |
|
|
Dimensions |
102*82*73 mm(L*W*H) |
|
Weight |
USB:228g RS232:261g |
|
Notification |
Beep,LED indicator |
|
Current |
|
|
Maximum |
<200mA |
|
Operating |
150mA±15mA |
|
Standby |
80mA±2mA |
|
Environmental |
|
|
Operating Temperature |
-20℃~50℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Humidity |
5%~95%(non-condensing) |
