iDPRT 2inch performance barcode printer iE2P features small spave-saving design, touch LDC display for easy operation and high printing speed at 8inches per second.Your best choice for the printing solution of wristband, retail tags, fine text, etc.
iDPRT 2inch performance barcode printer iE2P features small spave-saving design, touch LDC display for easy operation and high printing speed at 8inches per second.Your best choice for the printing solution of wristband, retail tags, fine text, etc.
Product Information:

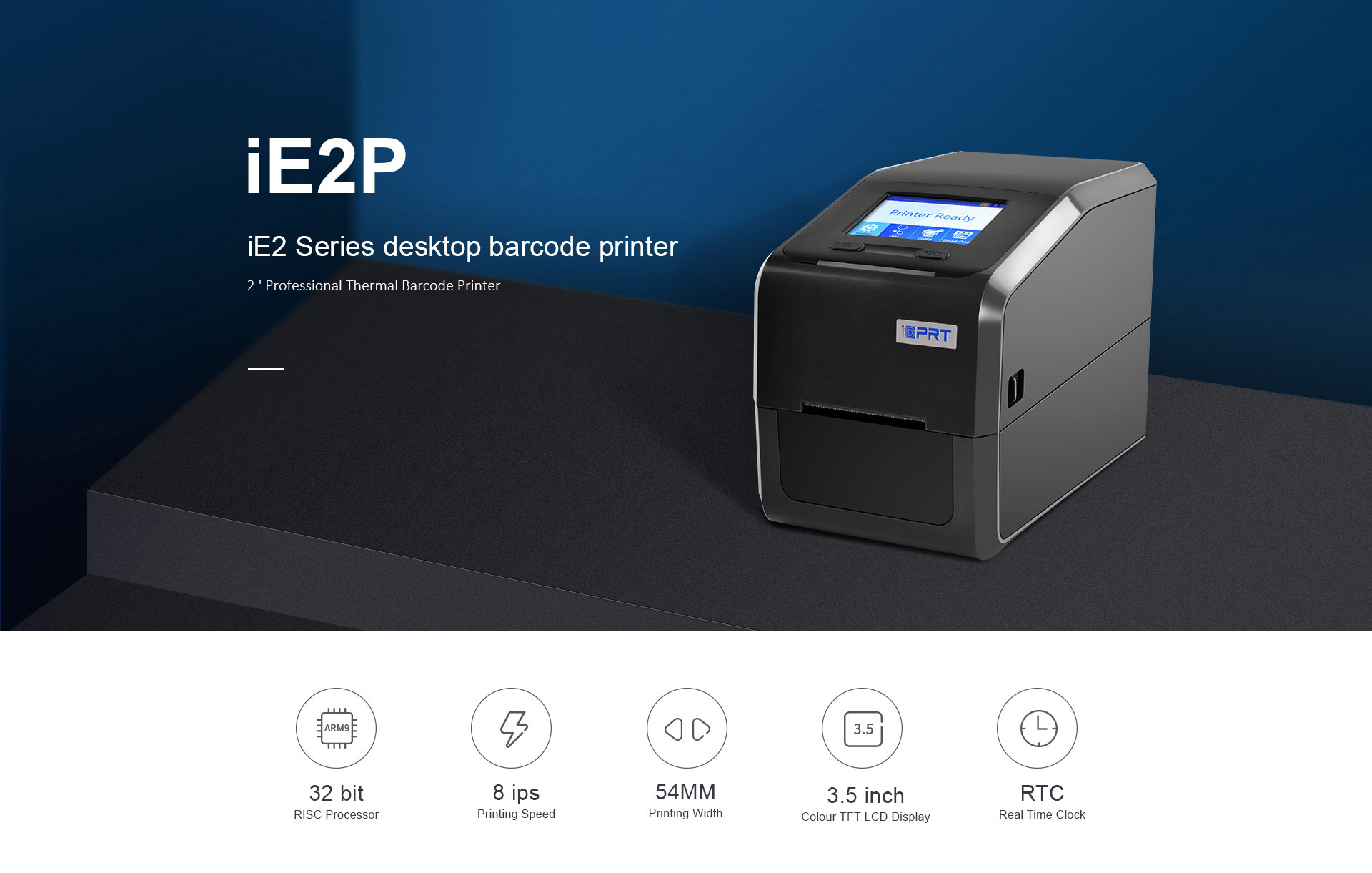

Model: iE2P High performance thermal transfer barcode printer
Product Features：
Product Advantages:
TOUCH LCD display
iDPRT compact thermal transfer barcode label printer is equipped with a 3.5 inches big TOUCH LCD display, which is used to show all important information about printing job status and parameter setting, which brings a higher level of ease of use to the users.
Full communication ports
2inch performance label printer iE2P is built with full communication interfaces, USB, Ethernet, RS232 and USB host. It can be widely fit into almost all environment.
Applied for wide range of industries and applications
iDPRT 2inch desktop barcode printer brings the market a compact and affordable desktop printer. iE2P can be widely implemented in a wide range of industries and application: retail tags, healthcare writstband, coffee shop labels, small product labels and items, etc.
Product Specification:
|
Model |
iE2P |
|
|
Printing |
Printing Method |
Thermal/ Thermal transfer |
|
|
Resolution |
203dpi / 300dpi |
|
|
Max.Printing Speed |
8ips (203dpi) |
|
|
|
6ips (300dpi) |
|
|
Printing Width |
54mm(203dpi) / 56.9mm(300dpi) |
|
|
Max.Pringting Length |
2,286mm(203dpi),1,524mm(300dpi) |
|
Model |
Protocols |
ZPL-II,EPL-II,TSPL |
|
Media |
Types |
Continuous paper, label, black mark paper, punched Label (fold or roll paper) |
|
|
Width |
20mm-60mm |
|
|
Thickness |
60um-250um |
|
|
Label Roll Diameter |
127mm |
|
Ribbon |
Types |
Wax, Wax/Resin, Resin |
|
|
Width |
58mm |
|
|
Internal diameter |
12.7mm |
|
|
Max.Length |
100m |
|
Fonts |
Resident fonts |
Alphanumeric, Simplified Chinese, Traditional Chinese, 29 US-International. |
|
|
User fonts |
Support |
|
Barcodes |
1D |
Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5, Codabar, Code 128 (subset A, B, C), UCC/EAN 128, MSI, Plessey, Telepen, GS1 DataBar, Standard 2 of 5, Industrial 2 of 5, Code 11, Code 49, POSTNET, ITF14, HIBC, FIM, German Post Code, Planet 11&13, Japanese Postnet, Interleaved 2 of 5, Logmars, Code 11 |
|
|
2D |
Code 49, Codablock, PDF417, Data matrix code, Maxicode, QR code, Micro PDF417, Aztec code |
|
Detection |
Gap label sensor |
Transmittance, Medium, 2 pcs |
|
|
Black mark sensor |
Reflective, removable whole range |
|
|
Other |
Paper out detection, open cover detection, TPH head overheating detection |
|
Interfaces |
Standard |
Type-B USB, USB HOST, RS232, Ethernet |
|
|
Optional |
Wi-Fi, Bluetooth |
|
Memory |
RAM |
32MB |
|
|
Flash |
16MB |
|
Power Supply |
Input |
AC 100~240V, 50/60Hz |
|
|
Output |
DC 24V, 2.5A |
|
Environment |
Operation |
5 to 50℃@ humidity 25% to 85% non-condensing |
|
|
Storage |
-40 to 60℃@ humidity 10% to 90% non-condensing |
|
Software |
Driver |
Windows 7,8.1,10, windows Server 2008,2012, 2016 Linux, MACOS, Bartender 2019 UltraLite |
|
Options & Accessory |
Cutter Module, External Label Roll Holder |
|
|
Dimension(L*H*W) |
250*140*180mm |
|
|
Weight(kg) |
1.6 |
|
|
Agency Approval |
CE EMC (EN 55022 Class B), FCC EMC (Class A), CCC, RoHS |
|
Product Overview：
