2inch desktop thermal transfer barcode label printer iE2X delivers premium performance for most retail, medical and office applications at an affordable price. The best option to replace TSC TTP-225 and TTP-323 2inch desktop thermal transfer barcode printer.
Product Information:
Model: iE2X 2inch desktop thermal transfer barcode label printer
Product Features：
Product Advantages:
Available with 203dpi resolution and 300dpi resolution versions
iDPRT 2inch desktop thermal transfer barcode label printer series have the standard 203dpi or higher 300dpi resolution. The 230dpi iE2X resolution can print at max 8inches per second, and the 300dpi version 2inch desktop thermal transfer barcode printer iE2X is good for the printing of fine text, small graphics, 2D barcodes, etc.
Compact design for space-saving applications
iDPRT 2inch desktop thermal transfer label printer iE2X is with a user-friendly chamshell design, a large 5 inches OD center biased media capacity. The compact design is just the pefect choice when you need a space-saving printer to print 2inch wide tagas or labels.
Stable Lead Time
With more than 2000 employees, we provide the stable lead time for all iDPRT desktop barcode label printers. Especially for the standard models like 2inch and 4inch wide thermal transfer barcode printers, normally iDPRT have the standard models in safety stock, which can fit any project in time. For other special requirements, the normal lead time is 4weeks to 6weeks.
If you cannot stand the long and unreliable lead time for Zebra label printer, TSC label printer, Argox label printer, Godex label printer, SATO label printer, it is the right time to contact iDPRT.
Product Specification:
Model
iE2X
Printing
Printing Method
Thermal/ Thermal transfer
Resolution
203dpi / 300dpi
Max. Printing Speed
8ips (203dpi)
6ips (300dpi)
Printing Width
54mm(203dpi) / 56.9mm(300dpi)
Max. Printing Length
2,286mm(203dpi),1,524mm(300dpi)
Model
Protocols
ZPL-II,EPL-II,TSPL
Media
Types
Continuous paper, label, black mark paper, punched Label (fold or roll paper)
Width
20mm-60mm
Thickness
60um-250um
Label Roll Diameter
127mm
Ribbon
Types
Wax, Wax/Resin, Resin
Width
58mm
Internal diameter
12.7mm
Max. Length
100m
Fonts
Resident fonts
Alphanumeric, Simplified Chinese, Traditional Chinese, 29 US-International.
User fonts
Support
Barcodes
1D
Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5, Codabar, Code 128 (subset A, B, C), UCC/EAN 128, MSI, Plessey, Telepen, GS1 DataBar, Standard 2 of 5, Industrial 2 of 5, Code 11, Code 49, POSTNET, ITF14, HIBC, FIM, German Post Code, Planet 11&13, Japanese Postnet, Interleaved 2 of 5, Logmars, Code 11
2D
Code 49, Codablock, PDF417, Data matrix code, Maxicode, QR code, Micro PDF417, Aztec code
Detection
Gap label sensor
Transmittance, Medium, 2 pcs
Black mark sensor
Reflective, removable whole range
Other
Paper out detection, open cover detection, TPH head overheating detection

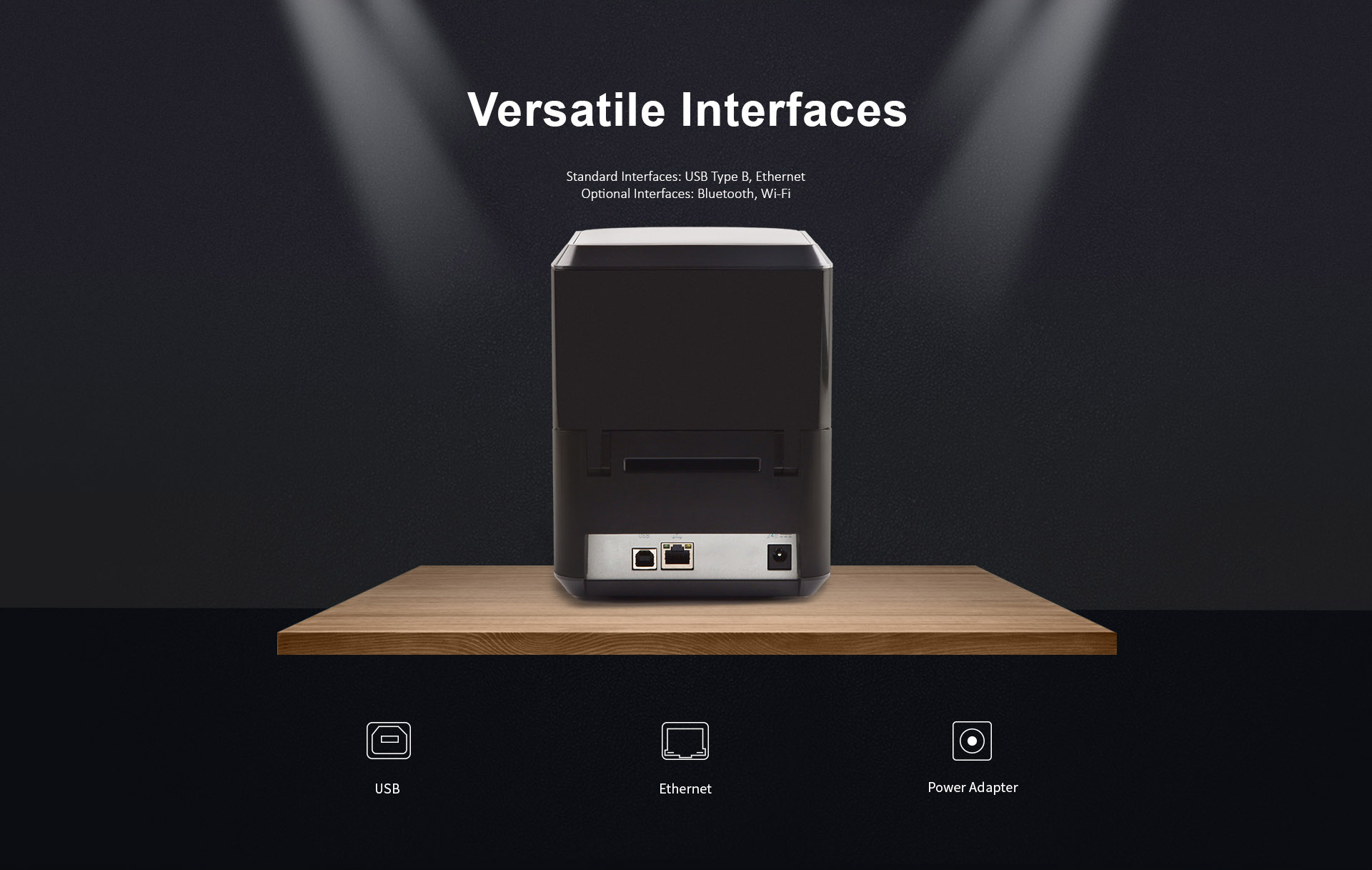

Interfaces
Standard
Type-B USB, Ethernet
Optional
Wi-Fi, Bluetooth
Memory
RAM
32MB
Flash
16MB
Power Supply
Input
AC 100~240V, 50/60Hz
Output
DC 24V, 2.5A
Environment
Operation
5 to 50℃@ humidity 25% to 85% non-condensing
Storage
-40 to 60℃@ humidity 10% to 90% non-condensing
Software
Driver
Windows 7,8.1,10, windows Server 2008,2012, 2016 Linux, MACOS, Bartender 2019 UltraLite
Options & Accessory
Cutter Module, External Label Roll Holder
Dimension(L*H*W)
250*140*180mm
Weight(kg)
1.6
Agency Approval
CE EMC (EN 55022 Class B), FCC EMC (Class A), CCC, RoHS
Product Overview：
