iDPRT 2inch performance barcode printer iD2P features small spave-saving design, touch LDC display for easy operation and high printing speed at 8inches per second.Having multiple interfaces, such as USB HOST, Serial port, Type-B USB, Ethernet port (Standard), Wi-Fi and Bluetooth (Optional)
Product Information:
Model: iD2P High performance direct thermal barcode printer
Product Features：
Product Advantages:

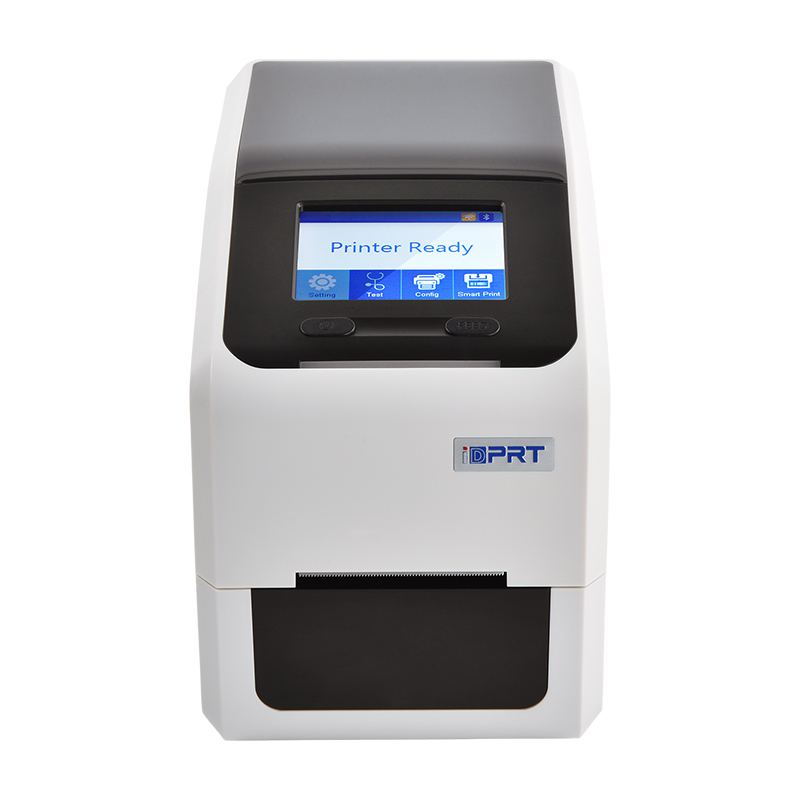

TOUCH LCD display
iDPRT compact direct thermal barcode label printeris equipped with a 3.5 inches big TOUCH LCD display, which is used to show all important information about printing job status and parameter setting, which brings a higher level of ease of use to the users.
Full communication ports
2inch performance label printer iD2P is built with full communication interfaces, USB HOST, Serial port, Type-B USB, Ethernet port (Standard), Wi-Fi and Bluetooth (Optional). It can be widely fit into almost all environment.
Applied for wide range of industries and applications
iDPRT 2inch desktop barcode printer brings the market a compact and affordable desktop printer. iD2P can be widely implemented in a wide range of industries and application: retail tags, healthcare writstband, coffee shop labels, small product labels and items, etc.
Product Specification:
| Model | iD2P | |
| Product Photos | ||
| Printing | Printing Method | Direct thermal |
| Resolution | 203dpi / 300dpi | |
| Max. Printing Speed | 8ips (203dpi) | |
| 6ips (300dpi) | ||
| Printing Width | 54mm(203dpi) / 56.9mm(300dpi) | |
| Max. Printing Length | 2,286mm(203dpi),1,524mm(300dpi) | |
| Protocols | ZPL-II,EPL-II,TSPL | |
| Media | Types | Thermal paper (Punched Label, fold paper, roll paper), Continuous Paper (or Black Mark) |
| Width | 20mm-60mm | |
| Thickness | 60um-250um | |
| Label Roll Diameter | 127mm | |
| Fonts | Resident fonts | Alphanumeric, Simplified Chinese, Traditional |
| Chinese, 29 US-International. | ||
| User fonts | Support | |
| Barcodes | 1D | Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC |
| A/E (add on 2 & 5), I 2 of 5, Codabar, Code | ||
| 128 (subset A, B, C), UCC/EAN 128, MSI, Plessey, | ||
| Telepen, GS1 DataBar, Standard 2 of 5, Industrial | ||
| 2 of 5, Code 11, Code 49, POSTNET, ITF14, HIBC, | ||
| FIM, German Post Code, Planet 11&13, Japanese | ||
| Postnet, Interleaved 2 of 5, Logmars, Code 11 | ||
| 2D | Code 49, Codablock, PDF417, Data matrix code,Maxicode, QR code, Micro PDF417, Aztec cod | |
| Detection | Gap label sensor | Transmittance, Medium, 2 pcs |
| Black mark sensor | Reflective, removable whole range | |
| Other | Paper out detection, open cover detection, TPH head overheating detection | |
| Interfaces | Standard | Type-B USB, USB HOST, RS232, Ethernet |
| Optional | Wi-Fi, Bluetooth | |
| Memory | RAM | 32MB |
| Flash | 16MB | |
| Power Supply | Input | AC 100~240V, 50/60Hz |
| Output | DC 24V, 2.5A | |
| Environment | Operation | 5 to 50℃@ humidity 25% to 85% non-condensing |
| Storage | -40 to 60℃@ humidity 10% to 90% non-condensing | |
| Software | Driver | Seagull Driver：Windows7,8,10 |
| iDPRT Driver：Windows XP, Vista, 7, 8, 10, Linux ,MacOS | ||
| Options & Accessory | Cutter Module, External Label Roll Holder | |

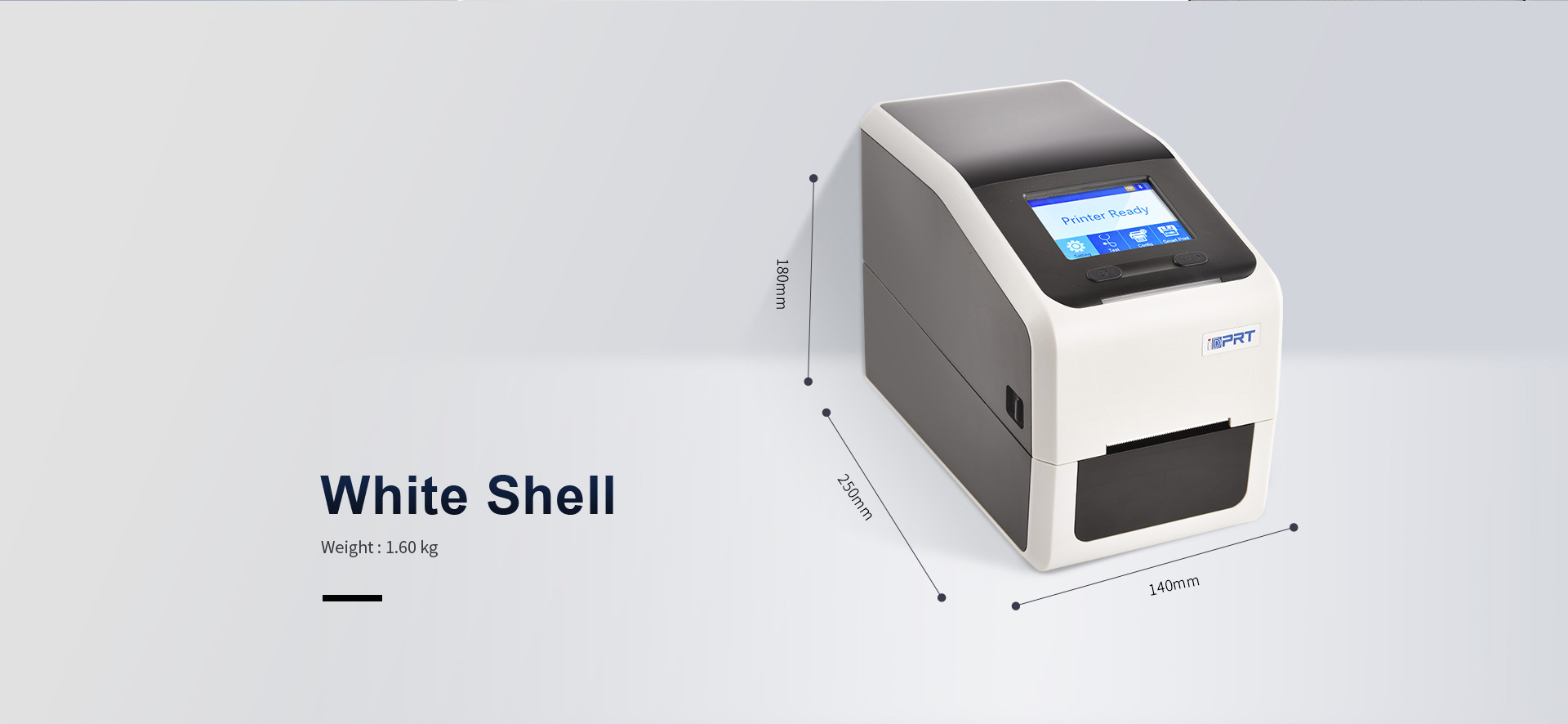

| Dimension(L*H*W) | 250*140*180mm | |
| Weight(kg) | 1.6 | |
| Agency Approval | CE EMC (EN 55022 Class B), FCC EMC (Class A), CCC, RoHS | |
Product Overview：
