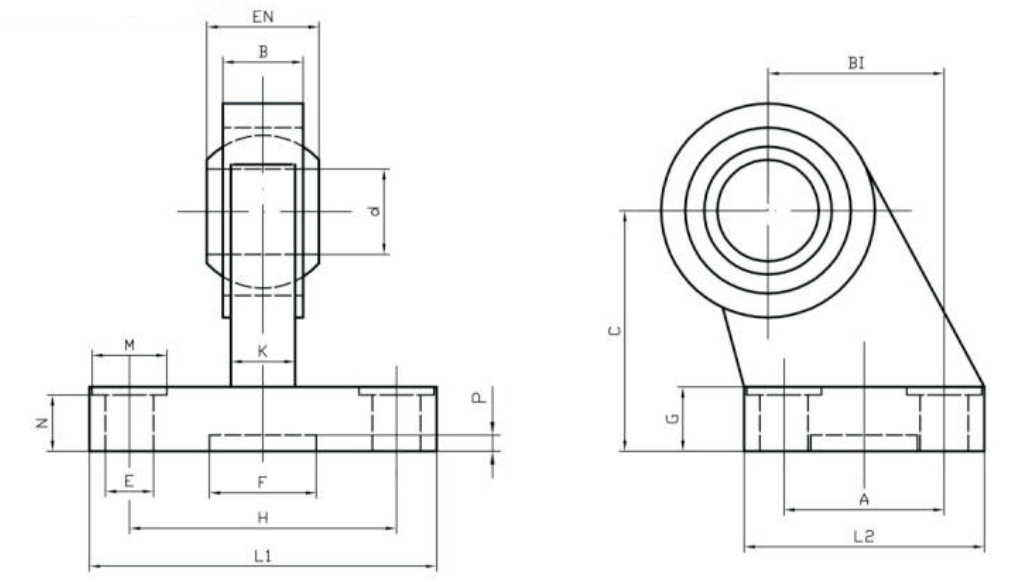

MP8 Square Joint DIN648K
|
Bearing
NO.
|
Dimensions(mm) |
Weight
≈kg
|
||||||||||||||||
|
d
H7
|
A
JS14
|
B
max
|
C
JS15
|
EN |
ER
max
|
F
H13
|
G |
E
H13
|
L1 |
M
H13
|
N
0～+0.5
|
P |
L2
max
|
BI
JS15
|
H
JS15
|
K | ||
| MP8-32 | 10 | 18 | 10.5 | 32 | 14 | 15 | 20 | 10 | 6.6 | 51 | 11 | 8.5 | 3 | 31 | 21 | 38 | 8.5 | 0.178 |
| MP8-40 | 12 | 22 | 12 | 36 | 16 | 18 | 20 | 10 | 6.6 | 54 | 11 | 8.5 | 3 | 35 | 24 | 41 | 10 | 0.268 |
| MP8-50 | 16 | 30 | 15 | 45 | 21 | 20 | 20 | 12 | 9 | 65 | 15 | 10.5 | 3 | 45 | 33 | 50 | 12 | 0.458 |
| MP8-63 | 16 | 35 | 15 | 50 | 21 | 23 | 20 | 12 | 9 | 67 | 15 | 10.5 | 3 | 50 | 37 | 52 | 12 | 0.550 |
| MP8-80 | 20 | 40 | 18 | 63 | 25 | 27 | 20 | 14 | 11 | 86 | 18 | 11.5 | 3 | 60 | 47 | 66 | 14.5 | 0.970 |
| MP8-100 | 20 | 50 | 18 | 71 | 25 | 30 | 20 | 15 | 11 | 96 | 18 | 12.5 | 3 | 70 | 55 | 76 | 14.5 | 1.326 |
| MP8-125 | 30 | 60 | 25 | 90 | 37 | 40 | 20 | 20 | 13.5 | 124 | 20 | 17 | 3 | 90 | 70 | 94 | 20 | 3.000 |
