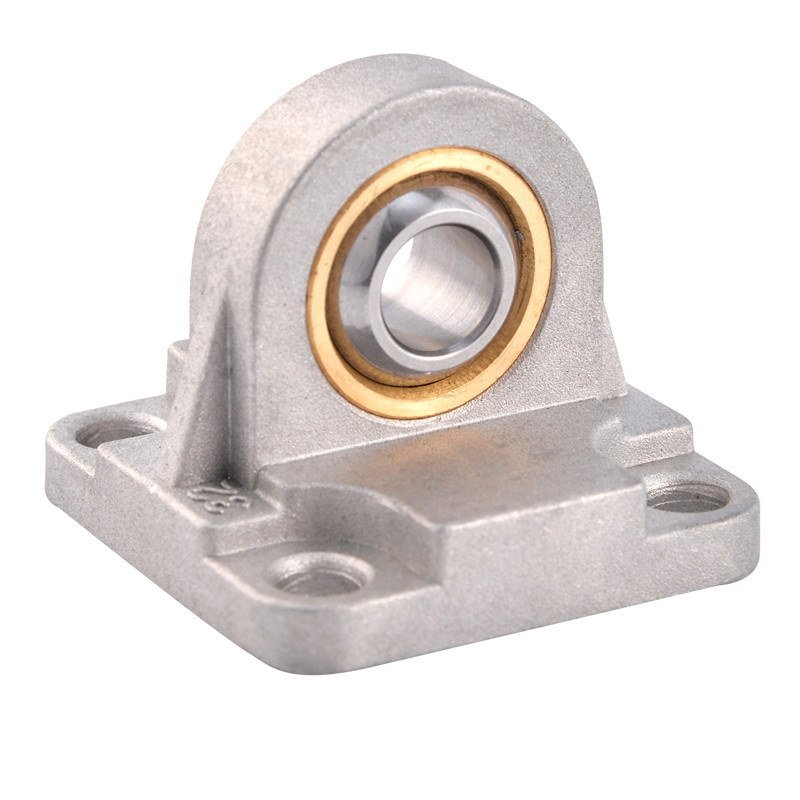

MP6 Male Hinge DIN648K
|
Bearing
NO.
|
Dimensions(mm) |
Weight
≈kg
|
|||||||||||||||||
|
d
H7
|
A
±0.2
|
B
max
|
C
JS15
|
EN |
ER
max
|
F
H11
|
G |
E
H13
|
L |
M
H13
|
N
±0.5
|
P |
H
±0.5
|
R
±0.5
|
S | Z | T | ||
| MP6-32 | 10 | 32.5 | 10.5 | 22 | 14 | 16 | 30 | 9 | 6.6 | 45 | 11 | 5.5 | 5 | - | - | 4 | 32.5 | 6.25 | 0.062 |
| MP6-40 | 12 | 38 | 12 | 25 | 16 | 19 | 35 | 9 | 6.6 | 52 | 11 | 5.5 | 5 | - | - | 6 | 39 | 7 | 0.100 |
| MP6-50 | 16 | 46.5 | 15 | 27 | 21 | 21 | 40 | 11 | 9 | 65 | 15 | 6.5 | 5 | 51 | 18 | 8 | 47 | 9.25 | 0.180 |
| MP6-63 | 16 | 56.5 | 15 | 32 | 21 | 24 | 45 | 11 | 9 | 75 | 15 | 6.5 | 5 | - | - | 8 | 52 | 9.25 | 0.244 |
| MP6-80 | 20 | 72 | 18 | 36 | 25 | 28.5 | 45 | 14 | 11 | 95 | 18 | 10 | 5 | 72 | 24 | 10 | 67 | 11.5 | 0.476 |
| MP6-100 | 20 | 89 | 18 | 41 | 25 | 30 | 55 | 14 | 11 | 115 | 18 | 10 | 5 | - | - | 10 | 77 | 13 | 0.646 |
| MP6-125 | 30 | 110 | 25 | 50 | 37 | 40 | 60 | 20 | 13.5 | 140 | 20 | 10 | 7 | - | - | 13 | 98 | 13 | 1.410 |
| MP6-160 | 35 | 140 | 28 | 55 | 43 | 45 | 65 | 20 | 18 | 180 | 26 | 10 | 7 | - | - | 14 | 130 | 20 | 2.420 |
| MP6-200 | 35 | 175 | 28 | 60 | 43 | 48 | 75 | 25 | 18 | 220 | 26 | 11 | 7 | - | - | 14 | 155 | 22.5 | 3.840 |
