The Z90-N ramps up the demand for a powerful product that will provide support for contactless & QR code payment applications.

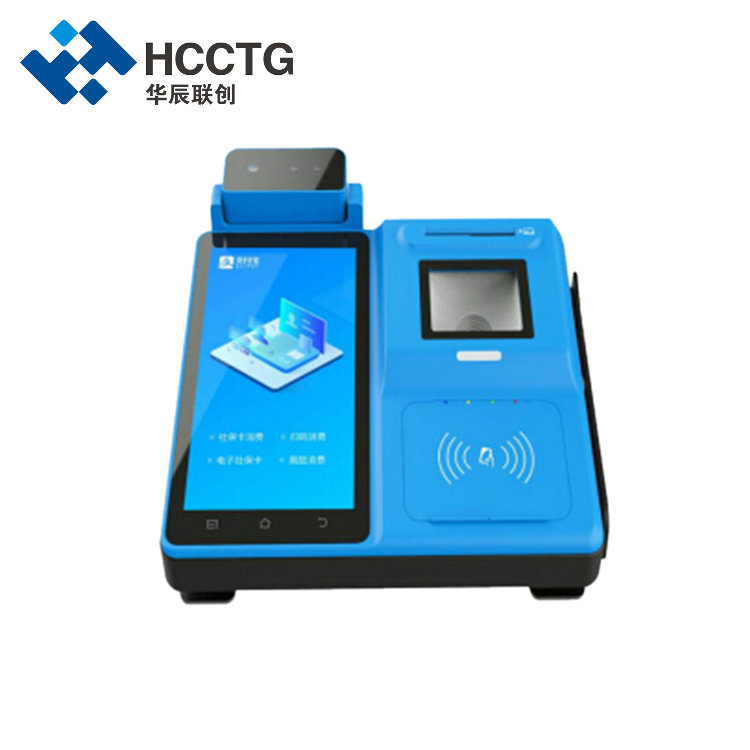

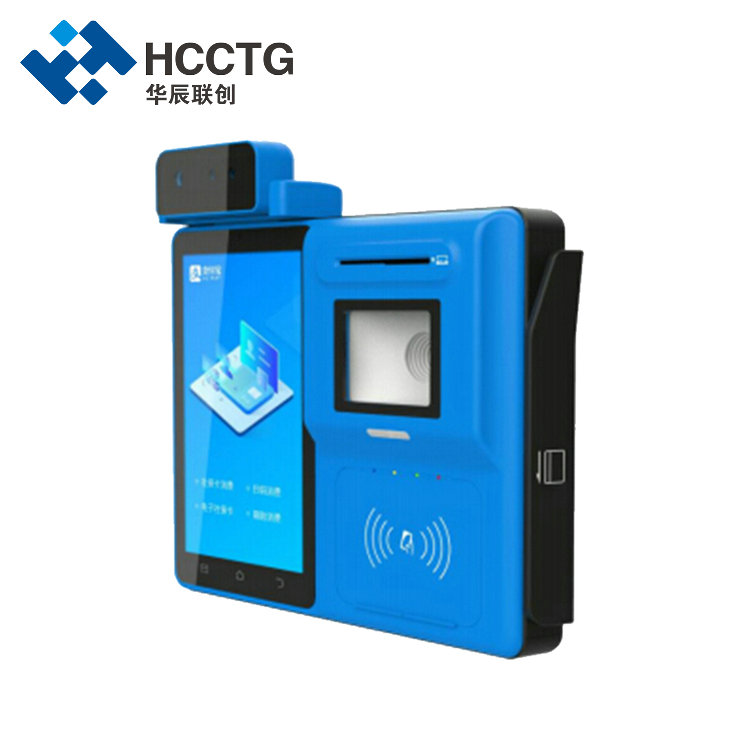

Newly Android 7.1 2D Barocde Payment Terminal Bus Validator Z90-N
The Z90-N Android payment terminal is second generation of Z90. With powerful CPU and big memory, it can install complicated payment application inside. Developed based on Android technology, it supports any contactless card following the ISO 14443-4, any chip card following ISO7816 reading / writing, and Magnetic stripe card reading.
Aside from its reading & writing features, the Z90-N is equipped with touch screen that allows merchants to flash messages.
The Z90-N, will ease movement in checkout counters, since customers can complete payment transactions by simply tapping their cards, show the QR code. This presents an opportunity to revolutionize the shopping experience through faster and more convenient payments. With its special casing, 1D/2D barcode scanning feature and built-in camera, it can be easily installed in different payment terminals, such as parking payment terminal.
Features
Specifications
|
Items |
Description |
|
Operating System |
Android 7.1 |
|
CPU |
ARM Cortex-A53 64 bit(8 core),1.8GHz |
|
Storage |
2GB LPDDR3+16GB eMMC |
|
Display |
7inch capacitive touch sreen,resolution720P(720x 1280),IPS |
|
TP |
G+G,full fitting design |
|
Indicators |
4 colors,blue,yellow, green, red,controllable |
|
Key |
Menu,HOME、back ( touch screen key ) Volume+/- Power key(one-off,working/resting,restart) |
|
Buzzer |
Support |
|
Volume |
Support Can be adjusted |
|
MIC |
Support |
|
Ethernet |
10M/100M,Adaptive |
|
WIFI |
IEEE 802.11 a/b/g/n/ac 2.4G/5G double frequency |
|
Wireless communication |
TD_LTE: B34/38/39/40/41 FD_LTE: B1/3/5/8 TD_SCDMA:B34/39 WCDMA: B1/B8 EVDO: BC0 CDMA: BC0 GSM: 900/1800MHz |
|
Bluetooth |
BT2.1+EDR/3.0/4.1LE/4.2BLE |
|
Physical interface |
1.USB A×1 2.TYPE C USB×1 3.RJ11×1 4.RJ45 |
|
Magnetic stripe card reading |
1/2/3 track card reading support |
|
Chip card reader/writer |
1 IC chip card reader |
|
ISO/IEC 7816 compliance |
|
|
T=0,T=1 CPU card support,AT24 series,4442,4428, T=0:9600-38400bps,T=1:9600-115200bps, 1.8v/3v/5v voltage |
|
|
Contactless card reading/writing |
ISO/IEC 14443 compliance,TypeA/B,Mifare support, Card reading distance5CM-10CM |
|
QR code |
Support |
|
SAM socket |
4 SAM socket,ISO/IEC 7816compliance,5V/3V/1.8Vsupport |
|
SIM socket |
2 SIM socket |
|
TF |
1 TF socket |
|
Built-in front camera |
Resolution500W pixels |
|
3D camera (Optional) |
USB 3D camera support, USB2.0 compliance,working voltage:5V±5% |
|
GPS |
GPS support |
|
RTC |
Support |
|
Battery |
3.7V 5000mAH |
|
Power |
5V/4A,TYPE C |
|
Working environment |
Temperature:-20℃～70℃ |
|
Relative Humidity:5℅～95℅ (non-condensing) |
|
|
Storage environment |
Temperature:-20℃～70℃ |
|
Relative Humidity:5℅～95℅ (non-condensing) |
