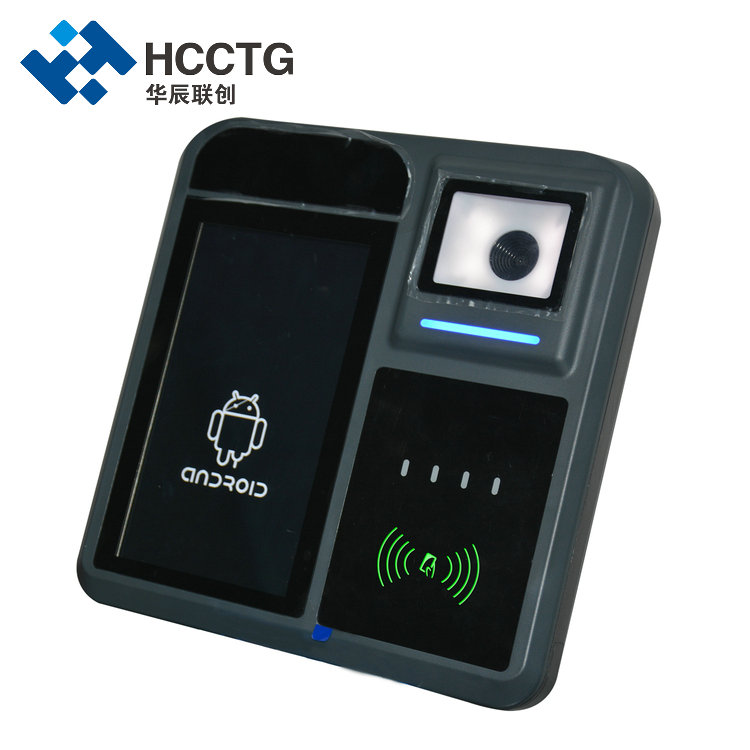

P18-Q is a smart Android 9.0 based bus validator for the bus fare collection, black body shell is sturdy and wear-resistant, making it easy to adapt to special conditions.
P18-Q is a smart Android 9.0 based bus validator for the bus fare collection, black body shell is sturdy and wear-resistant, making it easy to adapt to special conditions.
Android 9.0 NFC GPS Public Transport Ticket Machine Bus Validator P18-Q
The industrial level terminal P18-Q Bus Validator with robust design for long-term front-line use supports all smart cards compliant to ISO14443 Type A & B, Mifare Classic, DESFire, FeliCa, P2P NFC, built-in the embedded powerful KunT11 4 Cores Cortex-A53 processor. P18-Q is designed with pole mount kit with quick release mechanism for easy access for bus payment which with complex unstable environment.
Feature:
NFC Reader
EMV Chip and NFC/Contactless Payment.
Public transit cards or payments by e-wallet or smart watches.

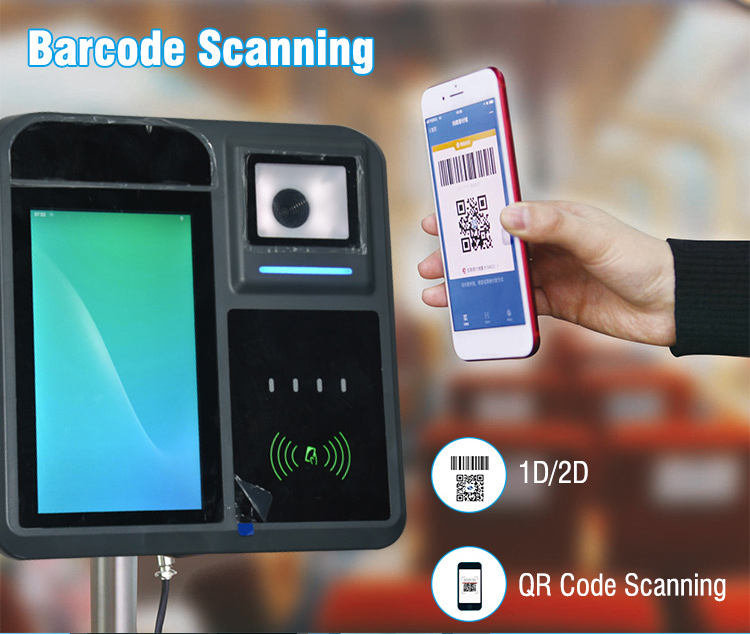

Qr-code Scanner
QR code scanning window adopt bevel design,enable quickly scanning payment code.Inbuilt professional QR
code reader can normal use even at bad condition.
Application scenario: Bus, subway, expressway, station, retail store, payment, canteen, campus
|
Physical Specifications |
|
|
Case Color |
Black |
|
Processor |
KunT11,4Cores Cortex-A53,2.0Ghz |
|
Operating System |
Android 9.0 |
|
Memory |
LPDDR4 2GB eMMC 16 GB TF 1* |
|
Power |
|
|
Supply Voltage |
9-48 V DC |
|
Supply Current |
Max. 2A |
|
Over Voltage Protection |
Supported |
|
Over Current Protection |
Supported |
|
Connectivity |
|
|
RS232 |
2 RS232 interface |
|
Ethernet |
Built-in 10/100-base-T with RJ45 connector |
|
USB |
2 USB 2.0 Host Full Speed |
|
USB TypeC |
OTG interface |
|
WiFi |
IEEE 802.11 b/g/n/ac |
|
GPS |
Supported |
|
Bluetooth (Optional) |
BT4.0 + BR/EDR + BLE |
|
Barcode Scanner |
1D Barcode Scanning |
|
2D Barcode Scanning |
|
|
QR Code Scanning |
|
|
Contactless Smart Card Interface |
|
|
Standard |
ISO-14443 A & B part 1-4 |
|
Protocol |
Mifare® Classic Protocols, T=CL |
|
Operating Distance |
Up to 50 mm |
|
Operating Frequency |
13.56 MHz |
|
SAM Card Interface |
|
|
Number of Slots |
4 ID-000 slots |
|
Card Connector Type |
Contact |
|
SIM |
1* |
|
Standard |
ISO/IEC 7816 Class A, B (5V, 3V, 1.8V) |
|
Protocol |
T=0 or T=1 |
|
Firmware Upgradeable through |
OTA |
|
Built-in Peripherals |
|
|
LCD Display |
600×1024 TFT LCD display with backlight, 6.95 inch (optional touchscreen) |
|
Speaker |
Supported |
|
Buzzer |
Supported |
|
LED Status Indicators |
4 LEDs for indicating status (from left most: blue, yellow, green, red) |
|
Other Features |
Real Time Clock |
|
Work Conditions |
Temperature: -40°C~80°C Humidity: 5% to 93%, non-condensing |
|
Certifications/Compliance |
QPBOC L1, qPBOC L2, CE/FCC, RoHS, CCC, Contactless EMV L1/L2, IP54, Visa-VCTKS, Mastercard-Paypass |
