GROWATT Grid Converter 50KW 60KW 70KW 80KW PV System Inverter Three Phase Solar Inverter Wildly Used In Commercial.
500V Converter MAX 50KTL3 LV 60KTL3 LV 70KTL3 LV 80KTL3 LV.
GROWATT Grid Converter 50KW 60KW 70KW 80KW PV System Inverter Three Phase Solar Inverter Wildly Used In Commercial.
500V Converter MAX 50KTL3 LV 60KTL3 LV 70KTL3 LV 80KTL3 LV.
Power range :
50kw-80kwWarranty :
5YearsCertificate :
ALLSize :
860*600*300mmOutput Type :
Three PhaseOn Grid Solar Inverter 3 Phase
Growatt 50KW 60KW 70KW 80KW Three Phase On-grid AC Frequency Solar Power Inverter
Suitable for both large scale commercial rooftop and ground mounted solar plants. Growatt Max series grid-tied incerter is with up to 80KW big capacity. First quad-core inverter in the industry, provides it fast processing capability to handle transient grid fault, with
with optimlzed design, it also brings 98.67% high weighted China efficiency, 0.3% higher than industry level, along with extraording 6 MPP trackers, ensures high yield of system.
Product Detail :
|
Datasheet
|
MAX 50KTL3 LV
|
MAX 60KTL3 LV
|
MAX 70KTL3 LV
|
MAX 80KTL3 LV
|
|
Input Data
|
||||
|
Max.DC power
|
65000W
|
78000W
|
91000W
|
104000W
|
|
Max.DC voltage
|
1100V
|
1100V
|
1100V
|
1100V
|
|
Start Voltage
|
250V
|
250V
|
250V
|
250V
|
|
PV voltage range
|
200V-1000V
|
200V-1000V
|
200V-1000V
|
200V-1000V
|
|
Nominal voltage
|
585V
|
585V
|
600V
|
685V
|
|
Full load DC voltage range
|
500V-850V
|
520V-850V
|
600V-850V
|
685V-850V
|
|
Max. input current per MPPT
|
25A
|
25A
|
25A
|
25A
|
|
Number of MPP trackers /
strings per MPP tracker
|
6/2
|
6/2
|
6/2
|
6/2
|
|
Output (AC)
|
||||
|
Rated AC output power
|
50000W
|
60000W
|
70000W
|
80000W
|
|
Max. AC apparent power
|
55500VA
|
66600VA
|
77700VA
|
88800VA
|
|
Max. output current
|
80.5A
|
96.6A
|
112.7A
|
128.8A
|
|
AC nominal voltage
|
230V/400V
|
230V/400V
|
230V/400V
|
230V/400V
|
|
AC grid frequency
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
|
Power factor
|
0.8leading ...0.8lagging
|
0.8leading ...0.8lagging
|
0.8leading ...0.8lagging
|
0.8leading ...0.8lagging
|
|
THDi
|
<3%
|
<3%
|
<3%
|
<3%
|
|
AC grid connection type
|
3W+N+PE
|
3W+N+PE
|
3W+N+PE
|
3W+N+PE
|
|
Efficiency
|
||||
|
Max.efficiency
|
98.80%
|
98.80%
|
99.00%
|
98.80%
|
|
Eurp-eta
|
98.30%
|
98.30%
|
98.40%
|
98.3%
|
|
MPPT efficiency
|
99.90%
|
99.90%
|
99.90%
|
99.9%
|
|
Protection Devices
|
||||
|
DC reverse polarity protection
|
yes
|
yes
|
yes
|
yes
|
|
DC Switch
|
yes
|
yes
|
yes
|
yes
|
|
DC Surge protection
|
Type II
|
Type II
|
Type II
|
Type II
|
|
Ground fault monitoring
|
yes
|
yes
|
yes
|
yes
|
|
Output short circuit protection
|
yes
|
yes
|
yes
|
yes
|
|
AC Surge protection
|
Type II
|
Type II
|
Type II
|
Type II
|
|
String fault monitoring
|
yes
|
yes
|
yes
|
yes
|
|
Anti-PID protection
|
opt
|
opt
|
opt
|
opt
|
|
AFCI protection
|
opt
|
opt
|
opt
|
opt
|
|
General Data
|
||||
|
Dimensions (W / H / D) in mm
|
860/600/300
|
860/600/300
|
860/600/300
|
860/600/300
|
|
Weight
|
82kg
|
82kg
|
82kg
|
82kg
|
|
Operating temperature range
|
-25°C ... +60°C
|
-25°C ... +60°C
|
-25°C ... +60°C
|
-25°C ... +60°C
|
|
Noise emission (typical)
|
≤55dB(A)
|
≤55dB(A)
|
≤55dB(A)
|
≤55dB(A)
|
|
Self-Consumption
|
< 1W*
|
< 1W*
|
< 1W*
|
< 1W*
|
|
Topology
|
Transformerless
|
Transformerless
|
Transformerless
|
Transformerless
|
|
Cooling concept
|
Smart cooling
|
Smart cooling
|
Smart cooling
|
Smart cooling
|
|
Environmental Protection Rating
|
IP65
|
IP65
|
IP65
|
IP65
|
|
Altitude
|
4000m
|
4000m
|
4000m
|
4000m
|
|
Relative Humidity
|
0-100%
|
0-100%
|
0-100%
|
0-100%
|
|
Features
|
||||
|
Display
|
LED/WIFI+APP
|
LED/WIFI+APP
|
LED/WIFI+APP
|
LED/WIFI+APP
|
|
Interfaces:USB/R485/GPRS
|
yes / yes / opt
|
yes / yes / opt
|
yes / yes / opt
|
yes / yes / opt
|
|
Warranty:5 years / 10 years
|
yes / opt
|
yes / opt
|
yes / opt
|
yes / opt
|
|
Certification |
CQC, CE, VDE 0126-1-1, UTE C 15-712, VDE-AR-N4105, EN50438, DRRG, CEI 0-16, BDEW, IEC 62116, IEC61727, IEC 60068, IEC 61683, AS 4777
|
|||

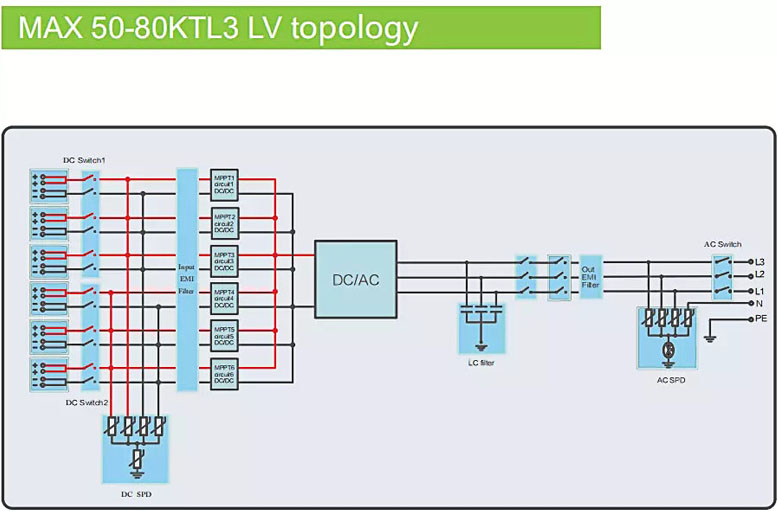

MAX 50-80KTL3 LV topology
|
-- 6 MPPTs
|
|
-- Smart diagnosis
|
|
-- High efficiency up to 99%
|
|
-- Local WIFI connection
|
|
-- String monitoring
|
|
-- AC& DC type II SPD |

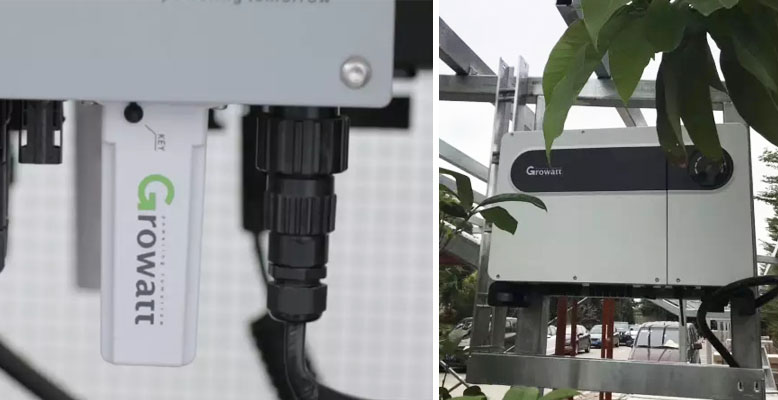

Product Application :
Q & A :
Q: What is a solar inverter and how does it work?
A: A solar inverter converts the DC (Direct Current) output of a PV solar panel into a utility frequency AC (alternating current) that can be fed into a commercial electrical grid (or) used by a local, off-line electrical n/w. In this proposed system, the solar energy is stored in the battery from PV cells.
Q: How does your factory do regarding quality control?
A: Quality is priority. people attach great importance to quality controlling from the very beginning to the very end. Our factory has gained BV, Intertek,TUV, ISO9001:2008 authentication.Our customers including Hallmark, Homebase, Coca-cola, ITS solar, Mobisol..
