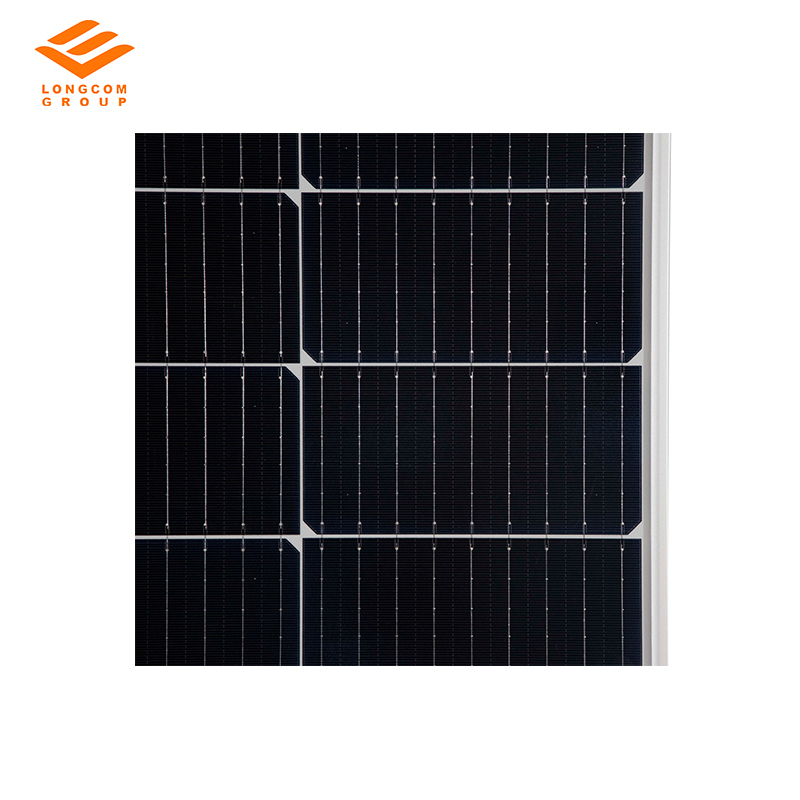

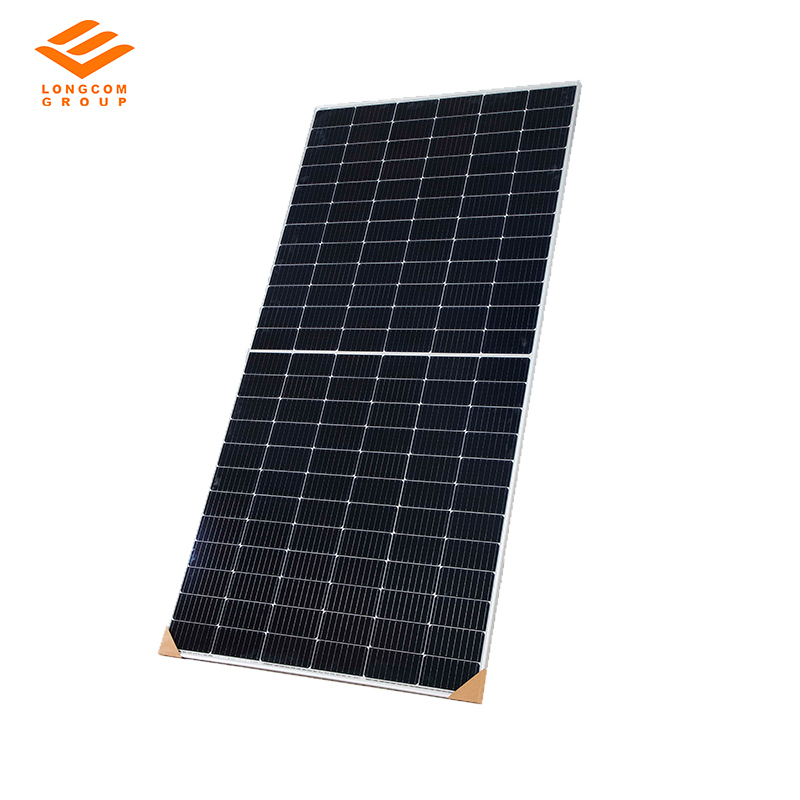

Mono Solar Panel 530w With 144 Cells Half Cut Type

530w With 144 Cells Half Cut Type Mono Crystalline

Features and benefits

Warranty :
25YERAS
Certification :
TUV CE ISO
Number Of Cells: :
144cells
Solar Cell: :
mono 9bb
Power Range :
520-550
Brand :
Longcom Group

Request A Quote

Product Details

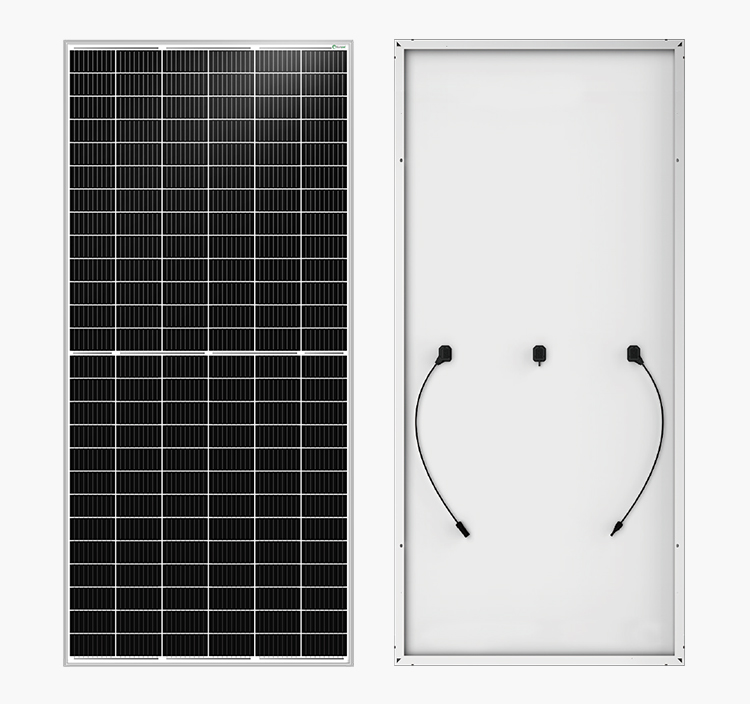

SOLAR PANEL 530W WITH 144 CELLS HALF CUT TYPE

Parameter of solar panel:

Model Number	530-144M		535-144M		540-144M
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power(Pmax/W)	530	395.8	535	399.5	540	403.3
Open Circuit Voltage(Voc/V)	49.20	46.03	49.35	46.17	49.50	46.31
Short Circuit Current(Isc/A)	13.71	11.08	13.78	11.14	13.85	11.19
Voltage at Maximum Power(Vmp/V)	41.35	38.55	41.50	38.69	41.65	38.83
Current at Maximum Power (Imp/A)	10.80	8.65	10.87	8.70	10.93	8.76
Module Efficiency(%)	20.7%		20.9%		21.1%
STC(Standard Testing Conditions):Irradiance 1000w/m²,Cell Temperature 25℃,Spectra at AM1.5. NOCT(Nominal Operating Cell Temperature)

Pmax/W	Voc/V	Isc/A	Vmp/V	Imp/A	Pmax gain
467	49.4	12.09	41.2	11.34	5%
490	49.4	12.67	41.2	11.88	10%
512	49.5	13.24	41.3	12.42	15%
534	49.5	13.82	41.3	12.96	20%
556	49.5	14.40	41.3	13.50	25%
Electrical characteristics with different rear side power again (reference to 445W front)

Product Details

Glass

*Anti-reflective glass

*High-transmittance and low reflection Increase model efficiency
*High mechanical strength

Solar Cell

*High model efficiency up to 20%

*High shunt-resistance: adapt the several environmental conditions
*High PID resistant
* Low breakage rate

*Uniform color

Frame

*Optional silvery or black frame
*Tensile Strength Frame
*Boost bearing capability and prolong service life

Junction Box

*Waterproof Junction Box

*Innovative Full-Glue-Filled Combination of series circuit and parallel circuit,

reduced internal power loss Quality diode ensures module running safety

*Heat dissipation
*Long service life

Production & QC

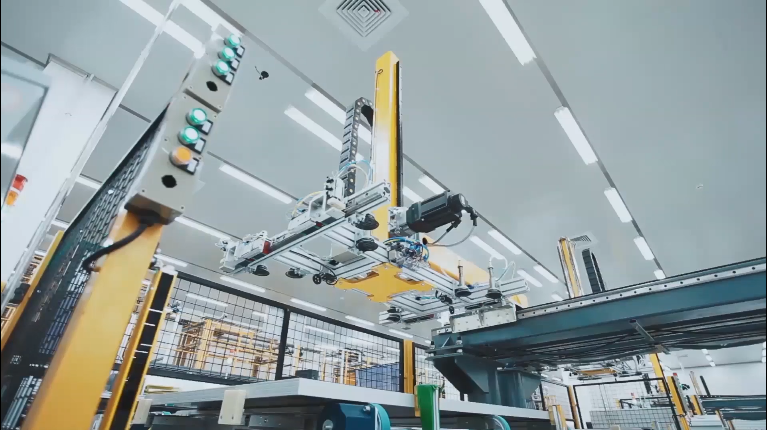

Automatic typesetting machine

After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically
typeset the battery string. High precision, high efficiency, low defect rate

Solar cell Welding

Use automatic welding machine to connect solar cells in series

All the solar cells are made by top class brand, like TW Solar, Longi Solar

Automatic welding

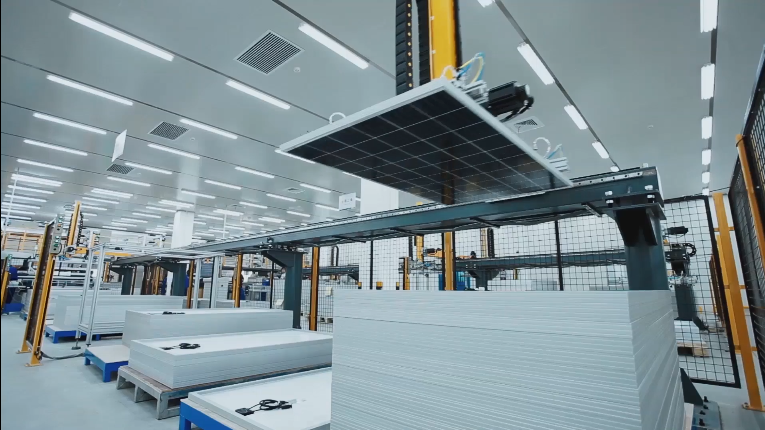

Automatic laying of EVA, backing, automatic cutting of excess backing material 100% automation of the entire production process

100% Cells Sorting

Ensure Colour and Power Difference. Ensure high yields,consistent performance and durability, First of 52 steps strict quality control and inspection process.

Visual Inspection

Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the previous process

100% Optimal Testing

Ensure 3% Positive Power Tolerance Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.
