360W PV system equipment
360W PV system equipment
Warranty :
25YEARSCertification :
TUV CE ISOSolar Cell: :
5bb monoNumber Of Cells: :
72Power Range :
360wBrand :
Longcom GroupMonocrystalline Solar Panel

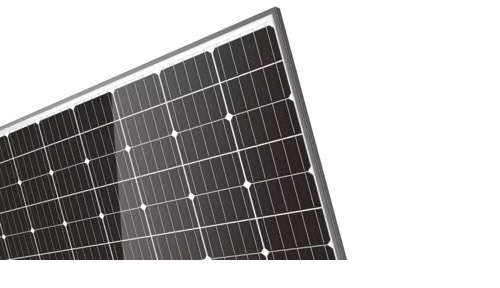

72PCS 360W 48V Monocrystalline Pallet Package Solar Panel
|
Solar Cell: |
Monocrystalline Cell 156*156 |
Number Of Cells: |
72PCS |
|
Power Range: |
360W |
Size: |
1956*992*35mm |
|
Weight: |
21.5KG |
Waterproof Grade: |
IP 68 |
|
Warranty: |
25 Years |
Payment: |
T / T , L / C |
|
High Light: |
360W Monocrystalline Solar Panel 48V Monocrystalline Solar Panel 48V monocrystalline cells |
||
|
Maximum Power at STC [Pmax] |
360 |
|
Open Circuit Voltage [Voc] |
48.00 |
|
Short Circuit Current [Isc] |
9.51 |
|
Voltage at Maximum Power Point [Vm] |
39.50 |
|
Current at Maximum Power Point [Im] |
9.12 |
|
Power Tolerance |
0~+5W |
|
Module Efficiency |
18.55 |
|
Maximum Power at NOCT [Pmax] |
270 |
|
Open Circuit Voltage [Voc] |
46.5 |
|
Short Circuit Current [Isc] |
7.61 |
|
Voltage at Maximum Power Point [Vm] |
37.7 |
|
Current at Maximum Power Point [Im] |
7.17 |
|
Values at Standard Test Conditions STC |
Air Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃ |
|
NOCT |
Irradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s |
Feature
Brief introduction
Solar panel refers to a panel designed to absorb the sun's rays as a source of energy for generating electricity or heating. Solar Photovoltaic panels constitute the solar array of a photovoltaic system that generates and supplies solar electricity in commercial and residential applications. A single solar module can produce only a limited amount of power; most installations contain multiple modules.
1. All solar module produces without any aberration or bubble.
2. Back sheet is TPT&PET, and the thickness is 0.3mm.
3. The thickness of EVA is 0.4mm,better than other company use 0.3mm or 0.35mm.We use new EVA material, not the overdue, the overdue EVA will influence the performance and lifespan of solar panel.
4. New aluminum with 1.00mm thickness, high hardness, good impact resistance. Some company will use bad recycle aluminum.
5. Tempered glass with 3.2mm has advantages of high strength, impact resistance,good light transmittance.
6. The solar cells made in Taiwan, high efficiency, low attenuation,the attenuation is less than 10% within 5 years and less than 15% within 10 years.
7. The junction box has good waterproof, good anti-aging,PV wire. The PV wire is good for anti-aging and anti-corrosion, it's better than the normal wire.
8. Package by 7 layers thick carton, moisture proof and anti-cracking. Two pieces in one carton, easy to delivery.
Manufacturing Technique
Antireflective glass
Translucency of normal luminance is increased 2%
Module efficiency is increased 2%
Self-clean function
Service life 25 years
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer Durability
Solar Cells
* A Grade Solar Cells
* High Efficiency PV Cells, Anti-Pid
* Appearance Consistency
Frame
Stock-size
Silvery
Thickness 30/35/40/50mm
Stress test
Solar Juction Box
Conventional standalone edition and engineering custom edition
Quality diode ensures module running safety
IP68 protection level
Heat dissipation
Long service life
PV Connector
* 4mm2 Qualified cable with PV Connector
* 500N Tensile Strength
Our service
1. All your inquiry,we reply whitin 12 Hours.
2: Fast produce and delivery to our world customers.
3: Offer customer the lowest price with good quality.
