Mono PERC 1/3 Cut Bifacial Solar Panel 540W Price

Sunerise 210 mm mono bifacial pv panels series power range 530w 535w 540w 545w 550w 555w with competitive price for grid-tied, off grid & hybrid solar power system.
Features and benefits
  • Packing :

    31pcs/pallet, 620pcs/40HQ
  • Lead Time :

    15 Days
  • Junction Box :

    IP68, 3 Bypass Diodes
  • Warranty :

    30 years
  • Dimension :

    2384*1096*35mm
  • Numble of Cells :

    110 Cells
  • Solar Cell :

    Mono 10BB 210mm
  • Certificate :

    TUV, ISO, CE, ETL, CQC
Product Details

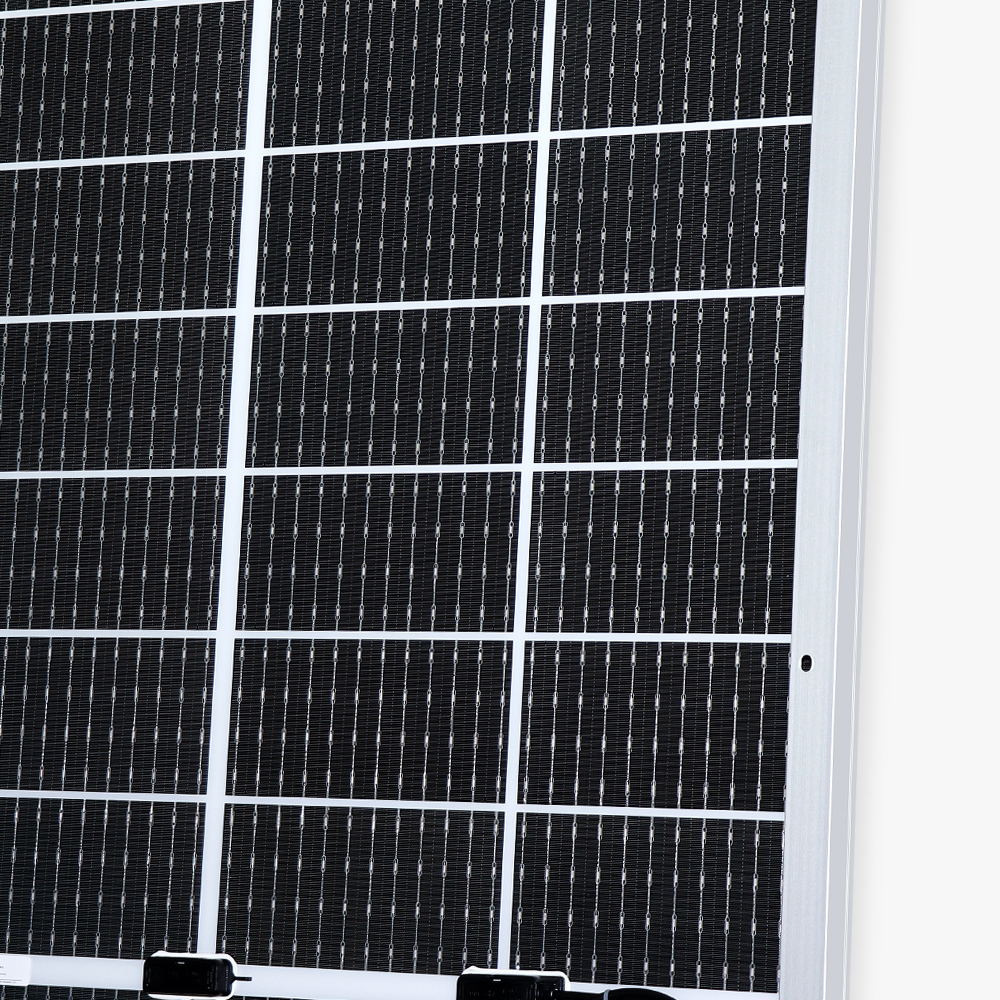

Mono PERC 1/3 Cut Bifacial Solar Panel 540W Price


This 110cells bifacial solar panel has a rated power of up to 540 watt, a conversion efficiency of up to 20.7%, and a 30-year product and performance warranty. This 540w mono bifacial solar panel arrays are widely used for residential self-consumption, industrial and commercial facilities.



JC(525-555)-110MG Solar Panel Features


  • 1/3-Cut Technology help to achieve higher power while minimizing hotspot issues
  • EL tested solar modules; Minimizes micro-cracks; PERC Solar Cells; Low power loss in cell connection; Better shading tolerance.
  • Capable of withstanding heavy snow load up to 5400 pa, wind load up to 3600 pa; Corrosion-resistant aluminum frame for extended outdoor use.
  • Anti-reflective, high transparency, low iron tempered glass with enhanced stiffness and impact resistance.
  • IP68 rated junction box provides complete protection against environmental particles and low-pressure water jets.



Electrical Characteristics(STC)

Module

JC(525~550)-110MG

Module Type

JC525M

JC530M

JC535M

JC540M

JC545M

JC550M

Maximum Power (Pmax)

535W

530W

535W

540W

545W

550W

Maximum Power Voltage (Vmp)

30.8V

31.0V

31.2V

31.4V

31.6V

31.8V

Maximum Power Current (Imp)

17.04A

17.11A

17.16A

17.21A

17.24A

17.29A

Open-circuit Voltage (Voc)

37.1V

37.3V

37.5V

37.7V

37.9V

38.1V

Short-circuit Current (Isc)

18.14A

18.19A

18.24A

18.30A

18.35A

18.39A

Module Efficiency (%)

20.1%

20.3%

20.5%

20.7%

20.9%

21.0%

Power Tolerance

0~+5W

Temperature Coeffcient of Isc

0.05%/℃

Temperature Coeffcient of Voc

-0.25%/℃

Temperature Coeffcient of Pmax

-0.34%/℃



Warranty
