Packing :
31pcs/pallet, 620pcs/40HQCertificate :
TUV, ISO, CE, ETL, CQCLead Time :
15 DaysJunction Box :
IP68, 3 Bypass DiodesWarranty :
30 yearsDimension :
2384*1096*35mmNumble of Cells :
110 CellsSolar Cell :

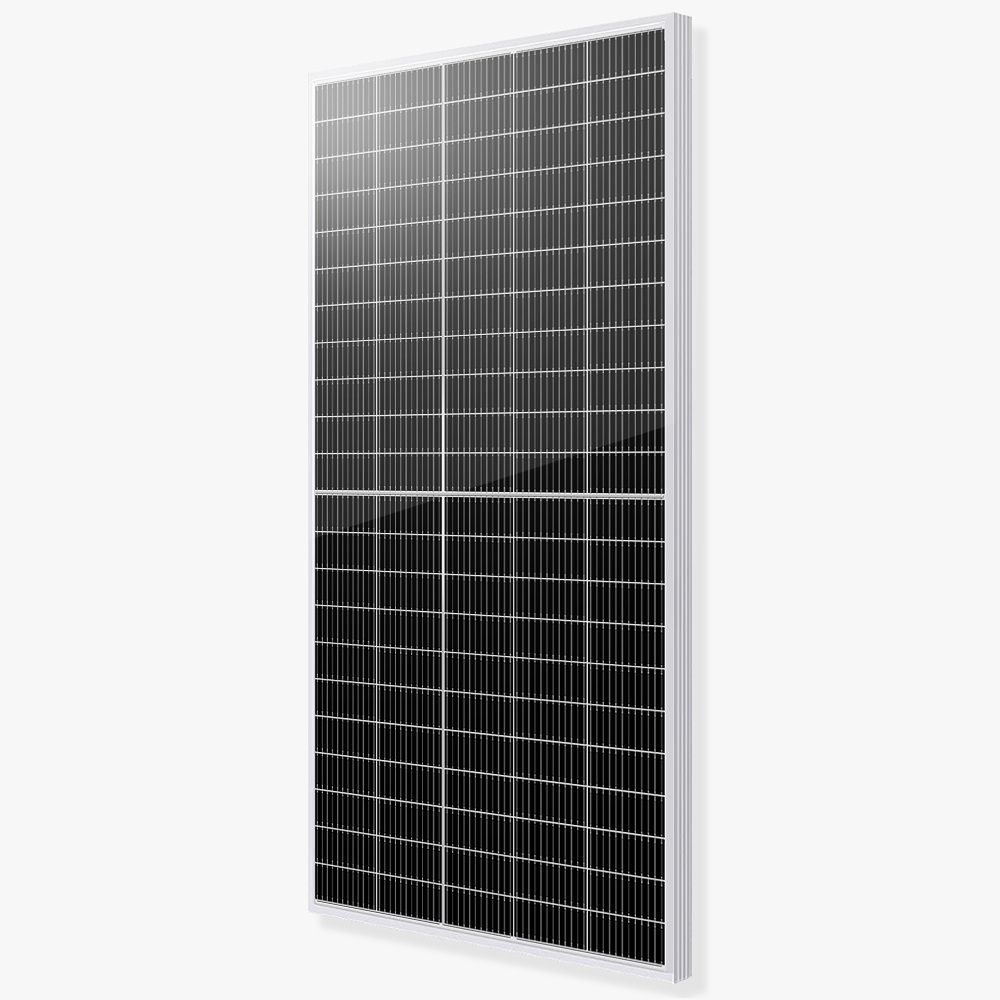

Mono 10BB 210mmMonocrystalline 550 watt Solar Panel with High Reliability
This 110cells monocrystalline solar panel has a rated power of up to 550 watt, a conversion efficiency of up to 21%, and a 30-year product and performance warranty. This 550w solar panel is an ideal for residential and commercial rooftop systems; ground mount compatible; compatible with on-grid and off-grid inverters.
JC(530-555)-110M Solar Panel Features
|
Electrical Characteristics(STC) |
||||||
|
Module |
JC(530~555)-110M |
|||||
|
Module Type |
JC530M |
JC535M |
JC540M |
JC545M |
JC550M |
JC555M |
|
Maximum Power (Pmax) |
530W |
535W |
540W |
545W |
550W |
555W |
|
Maximum Power Voltage (Vmp) |
30.8V |
31.0V |
31.2V |
31.4V |
31.6V |
31.8V |
|
Maximum Power Current (Imp) |
10.36A |
10.44A |
10.52A |
10.61A |
10.69A |
10.77A |
|
Open-circuit Voltage (Voc) |
37.1V |
37.3V |
37.5V |
37.7V |
37.9V |
38.1V |
|
Short-circuit Current (Isc) |
18.31A |
18.36A |
18.41A |
18.47A |
18.52A |
18.56A |
|
Module Efficiency (%) |
20.3% |
20.5% |
20.7% |
20.9% |
21.0% |
21.2% |
|
Power Tolerance |
0~+5W |
|||||
|
Temperature Coeffcient of Isc |
0.05%/℃ |
|||||
|
Temperature Coeffcient of Voc |
-0.25%/℃ |
|||||
|
Temperature Coeffcient of Pmax |
-0.34%/℃ |
|||||
