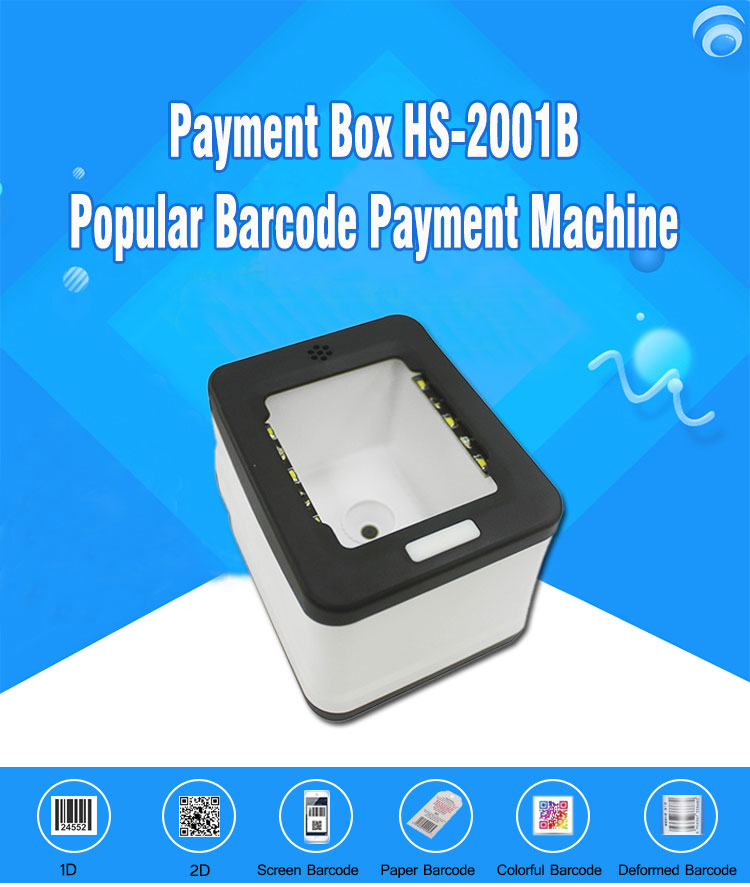

Wechat QR Code Mobile Payment Box For Supermarkets HS-2001B
HS-2001B is a desktop code scanner box customized for mobile payment and quick payment. Designed for code scanning, to create the ultimate code scanning experience. Quickly and intelligently recognize 1D and 2D screen code. The continuous reading scan interval can be set. Ultra low power consumption and energy saving.
Feature:
Specification
|
Performance |
|
|
Image Sensor |
640×480 CMOS |
|
Ambient light intensity |
0~100000Lux |
|
Symbolize |
1D: Code 128,UCC/EAN-128,AIM 128,EAN-8,EAN-13, ISSN, ISBN,UPC-E,UPC-A,Interleaved 2 of 5,ITF-6,ITF-14,Matrix 2 of 5(European Matrix 2 of 5),Industrial 25,Standard 25,Code 39,Codabar,Code 93,Code 11,Plessey,MSI-Plessey,RSS-14,RSS- Limited,RSS-Expand 2D:PDF417,Data Matrix,QR,Micro QR |
|
Resolution |
≥5mil |
|
Typical Depth of Field |
QR CODE( 30MIL) 0-15CM CODE 128 (10MIL) 0-12CM |
|
Scan Angle |
|
|
Pitch |
±60°@ 0°Roll and 0° Skew |
|
Roll |
360°@ 0°Pitch and 0° Skew |
|
Skew |
±55°@ 0°Roll and 0° Pitch |
|
Symbol Contrast |
≥30% |
|
Interface |
RS-232, USB |
|
Physical |
|
|
Dimensions |
102*82*73 mm(L*W*H) |
|
Weight |
USB:228g RS232:261g |
|
Notification |
Beep,LED indicator |
|
Current |
|
|
Maximum |
<200mA |
|
Operating |
150mA±15mA |
|
Standby |
80mA±2mA |
|
Environmental |
|
|
Operating Temperature |
-20℃~50℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Humidity |
5%~95%(non-condensing) |
