1. Product Features
● Printing speed Max. 8 ips.
● Automatically identify the printer head with 203 dpi and 300 dpi and automatically configure the printer without PC settings.
● with RFID function to support UHF RFID
● The modular design of printer head for easily replaced TPH
● With super large storage, DDR2 RAM 128 MB, Flash 256MB.
● Versatile interfaces, USB HOST, B-type USB, Ethernet port for standard, Wi-Fi and Bluetooth module for optional.
● 3.5-inch color LCD touch screen, can easily achieve offline operation with USB HOST.
● With free label editing software Bartender to make the label editing convenient and easy.
2. Our Advantages
· Easy Replacement of the printer head
In order to prolong the service life of the barcode printer and provide the better user experience, iDPRT makes the printer head into the modular type, which is easy for the users to change the printer head only by two screws.
· High-performance processor and mass memory
iDPRT barcode printers are equipped with 32-bit RICS high-speed processor and 128MB RAM and 256MB flash memory for excellent printing experience.
· Extensive application of media
iDPRT barcode printer applies to a wide range of media, such as the continuous paper, gap paper, black mark paper, perforated paper, wrist band and washing marks. It is widely used in the area of government, health-care, retail, manufacture and logistics, etc.
· Strong compatibility
Compatible with various mainstream printing emulation: ZPL-II,TSPL, EPL2,DPL
· Standalone function to connect with various USB devices through USB Host
Except for connecting PC for editing the printing content and transferring data, intelligent iDPRT barcode printer is also able to get the input data from the connected keyboards, scanners, USB flash disc, etc., to support the standalone function.
· Free label editing software and Seagull driver
Through the deep cooperation with Seagull Inc., iDPRT offers free label editing software BarTender and Seagull driver, which is easy for the users to complete editing printing content according to simple setting.
· Intelligent identification for print head resolution
In order to get our printer user friendly, after many years’ R&D experiences, iDPRT enables the printer to identify the printer heads with different solution intelligently and configure itself automatically, and frees the users from the complicated configuration.
3. Products Specifications
Model | iT4R | |
Printing | Printing Method | Thermal transfer/Direct thermal |
Resolution | 203dpi/300dpi | |
Max. Printing Speed | 8 ips (203dpi) | |
6 ips (300dpi) | ||
Max. Printing Width | 108 mm(203dpi),106 mm(300dpi) | |
Max. Printing Length | 2,286 mm(203dpi),1,524 mm(300dpi) | |
Emulation | ZPL-II, TSPL, DPL, EPL | |
Memory | RAM | 128 MB |
Flash | 256 MB | |
Detection | Sensor | Print Frame Open Detect, Ribbon End Detect, Paper Out Detect, |
TPH Over Heating Detect, 2 Fixed See-through sensor, Full Range | ||
Reflective Sensor | ||
Media | RFID Tag | UHF RFID, 860-928MHz,EPC C1G2(ISO18000-6C) |
Types | Continuous Paper, Gap, Black Mark, Punched Hole Label | |
Width | 1''(25.4)-4.65''(118 mm), include the liner | |
Thickness | 0.002''(60um)-0.01''(250um) | |
Label Roll Diameter | 5''(127 mm) Max | |
Core Diameter | 0.5''(12.7 mm), 1''(25.4 mm). 1.5''(38 mm) | |
Ribbon | Type | Wax, Wax/Resin, Resin |
Width | 1.18''(30 mm)-4.33''(110 mm) | |
Length | 984'(300 m) | |
Core Diameter | 1''(25.4 mm) | |
Software | Label Design Software | Bartender Ultralite, iDPRT Label Designer |
Driver | Seagull Driver:Windows7,8,10 | |
iDPRT Driver:Windows XP, Vista, 7, 8, 10, Linux ,MacOS | ||
Resident Fonts | Bitmap fonts | 6, 8, 12, 16, 32, OCR A & B. 90°,180°,270° rotatable and 10 times |
expandable in horizontal and vertical directions | ||
TTF fonts | Monotype CG Triumvirate™. 0°, 90°, 180°, 270° rotatable | |
Download Fonts | Bitmap fonts | 90°, 180°, 270° rotatable and 10 times expandable in horizontal |
and vertical directions | ||
Asian fonts | 16x16, 24x24. Traditional Chinese, Simplified Chinese, Japanese, | |
Korean, 90∘,180∘,270∘, r otatable and 8 times expandable in horizontal | ||
and vertical directions | ||
TTF fonts | 90°, 180°, 270° rotatable | |
Barcodes | 1D | Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), |
I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset | ||
A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random | ||
Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, | ||
FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese | ||
Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, | ||
Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock | ||
2D | PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro | |
QR code, Aztec code | ||
Code Page | 850, 852, 437, 860, 863, 865, 857, 861, 862, 855, 866, 737, 851, 869, | |
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257,UTF-8, UTF-16BE, | ||
UTF-16LE,DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5) | ||
Graphics | Resident graphic file types are BMP and PCX, other graphic formats | |
are converted by the software download | ||
Interfaces | Standard | USB,USB HOST,Ethernet |
Optional | Wi-Fi, Bluetooth | |
Control Panel | Power switch button, FEED button, 2 indicating LEDs | |
LCD Display | 3.5" TFT Color Touch Panel LCD | |
RTC Function | Equipped | |
Power Supply | External AC/DC switching power adapter, AC 100V-240V/DC 24V/2A/48W,Peak 5A | |
Environment | Operation | 5 to 50℃@ humidity 25% to 85% non-condensing |
Storage | -40 to 60℃@ humidity 10% to 90% non-condensing | |

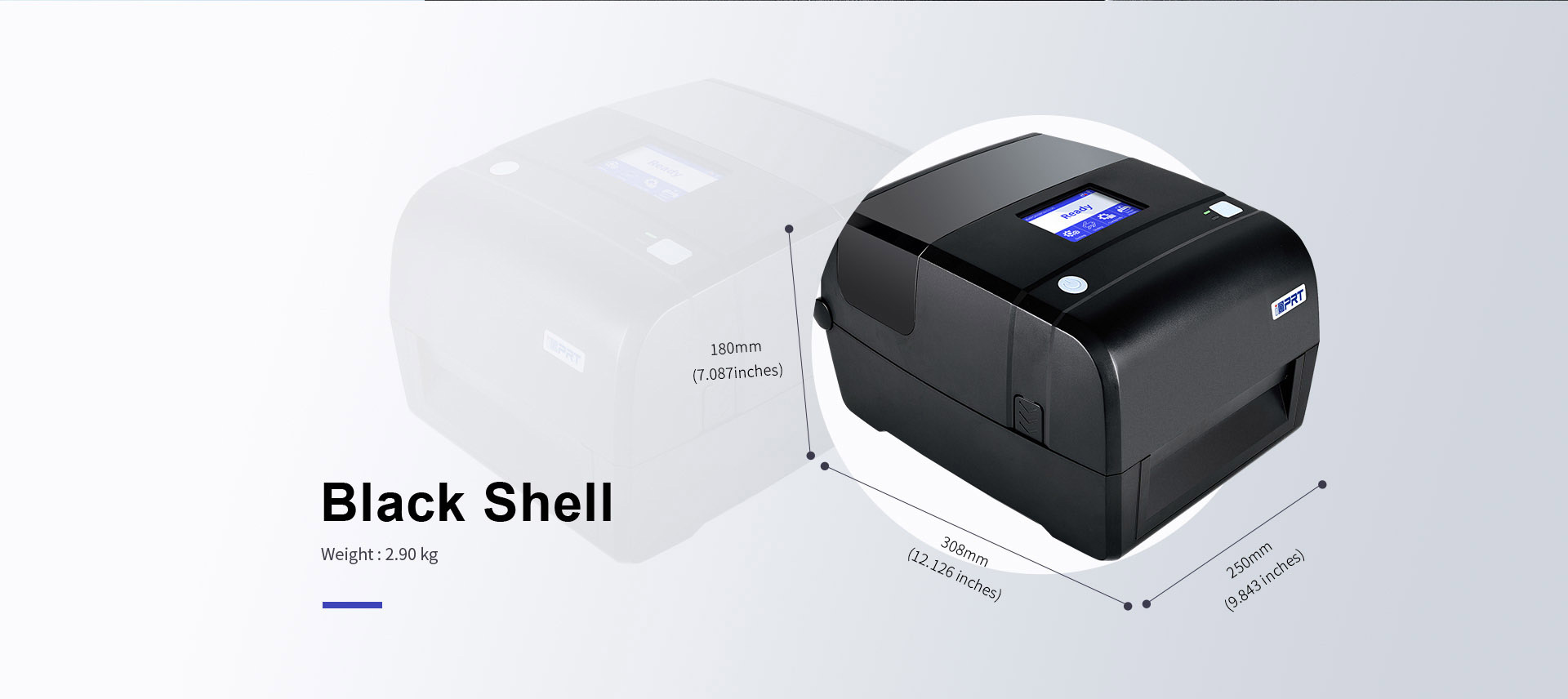

Physical Characteristic | Dimension(L×H×W) | 308×250×180 mm |
Weight | 2.9 kg | |
Options & Accessory | Peeler Module, Cutter Module, External Label Roll Holder | |
Agency Approval | CE EMC(55022 Class B), FCC EMC(Cless A), CCC, RoHS |

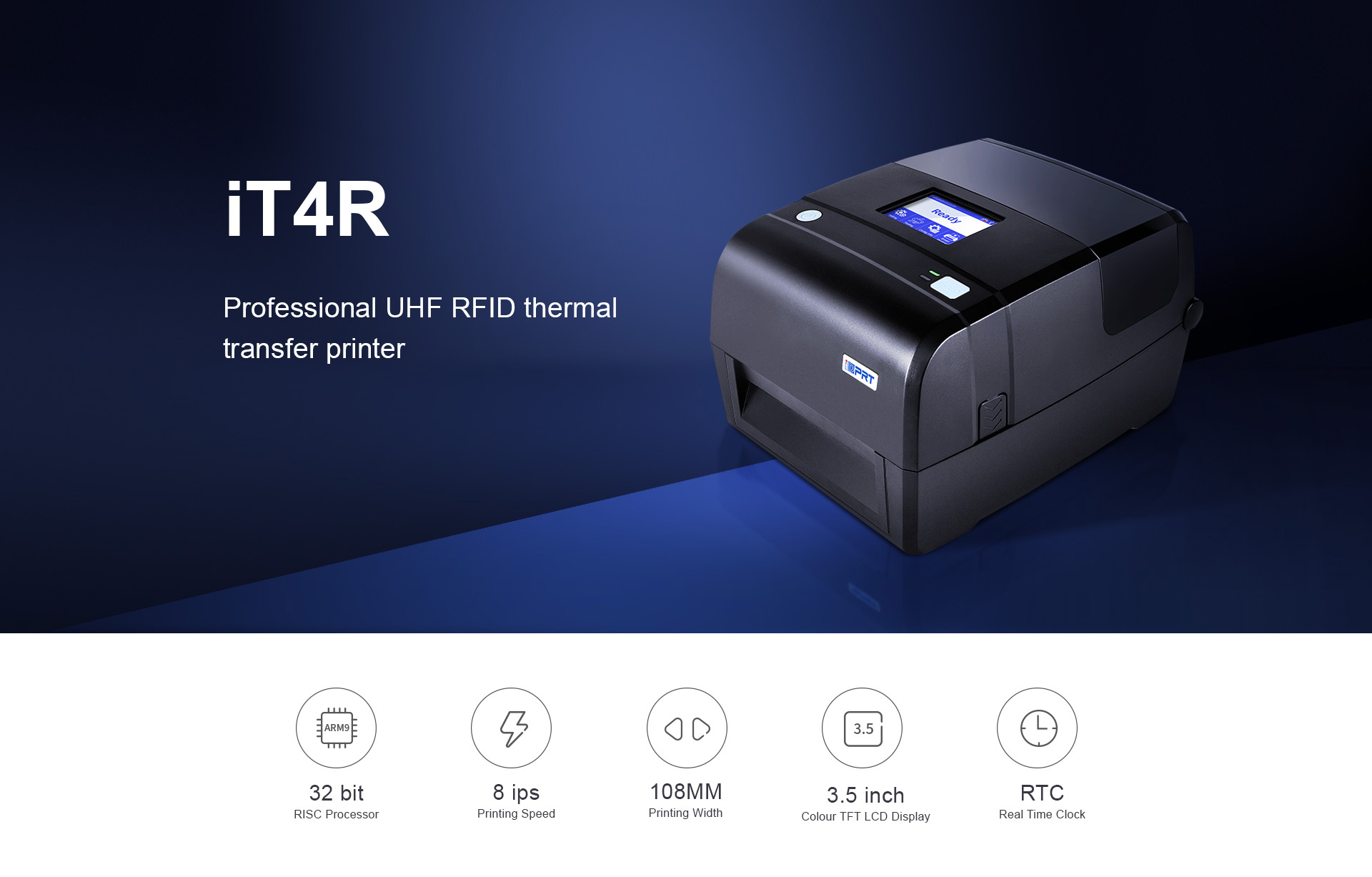

4.Products Pictures
