Product Information:
Model: iE4P 4inch Barcode printer
Product Features：
Product Advantages:
OEM/ODM project supported
We are the manufacturer specialize in barcode printers, thermal printers, PIS printers, barcode scanner, etc. We accept OEM/ODM with your brand or your design with different MOQ for different models.
Standalone function by connecting with various USB devices
Except for connecting PC for editing the printing content and transferring data, iDPRT iE4P barcode printer is able to get the input data from the connected keyboards, scanners, USB flash disc, etc.
Intelligent identification for printhead resolution
It is almost impossible for the users to use the printer heads with different resolutions in one traditional barcode printer. Even though it is able to change the printer head with different resolutions by end user, it still requires the user to make the complicated configuration through PC. After many years’ R&D experiences, iDPRT barcode printer manufacturers solve the problem creatively, which is to enable the printer to identify the printer heads with different resolution intelligently and configure itself automatically, and frees the users from the complicated configuration.
Product Specification:
| Model | iE4P | |
| Printing | Printing Method | Thermal transfer/Direct thermal |
| Resolution | 203dpi/300dpi | |
| Max.Printing Speed | 8 ips (203dpi) | |
| 6 ips (300dpi) | ||
| Max.Printing Width | 108 mm(203dpi),106 mm(300dpi) | |
| Max.Pringting Length | 2,286 mm(203dpi),1,524 mm(300dpi) | |
| Memory | RAM | 128 MB |
| Flash | 256 MB | |
| Detection | Sensor | Printhead up Detect, Ribbon End Detect, Paper Out Detect, TPH Over Heating Detect, Transmissive sensor & Reflective sensor at full range |
| Media | Types | Continuous Paper, Gap, Black Mark, Punched Hole Label |
| Width | 1''(25.4)-4.65''(118 mm), include the liner | |
| Thickness | 0.002''(60um)-0.01''(250um) | |
| Label Roll Diameter | 5''(127 mm) Max | |
| Core Diameter | 0.5''(12.7 mm), 1''(25.4 mm). 1.5''(38 mm) | |
| Ribbon | Type | Wax,Wax/Resin,Resin |
| Width | 1.18''(30 mm)-4.33''(110 mm) | |
| Length | 328'(100 m) | |
| Core Diameter | 1''(25.4 mm) | |
| Software | Label Design Software | Bartender Ultralite, iDPRT Label Designer |
| Driver | Windows 7/8/8.1/10, Windows Server 2008/2012/2016, Linux, MacOS(or macOS) | |
| Resident Fonts | Bitmap fonts | 6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable and 10 times expandable in horizontal and vertical directions |
| TTF fonts | Monotype CG Triumvirate™. 0°, 90°, 180°, 270° rotatable | |
| Download Fonts | Bitmap fonts | 90°, 180°, 270° rotatable and 10 times expandable in horizontal and vertical directions |
| Asian fonts | 16x16, 24x24. Traditional Chinese, Simplified Chinese, Japanese, Korean, 90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions | |
| TTF fonts | 90°, 180°, 270° rotatable | |
| Barcodes | 1D | Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code |
| 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, | ||
| MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable | ||
| check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock | ||
| 2D | PDF417, Data Matrix code, Maxi Code, QR Code, Micro PDF417, MicroQR code, Aztec code | |
| Code Page | 850, 852, 437, 860, 863, 865, 857, 861, 862, 855, 866, 737, 851, 869, WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257,UTF-8, UTF-16BE, UTF-16LE,DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5) | |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are converted by the software download | |
| Interfaces | Standard | USB Type B, Serial Port, Ethernet, USB Host |
| Optional | Wi-Fi and Bluetooth | |
| Control Panel | Power switch button, FEED button, 2 indicating LEDs | |

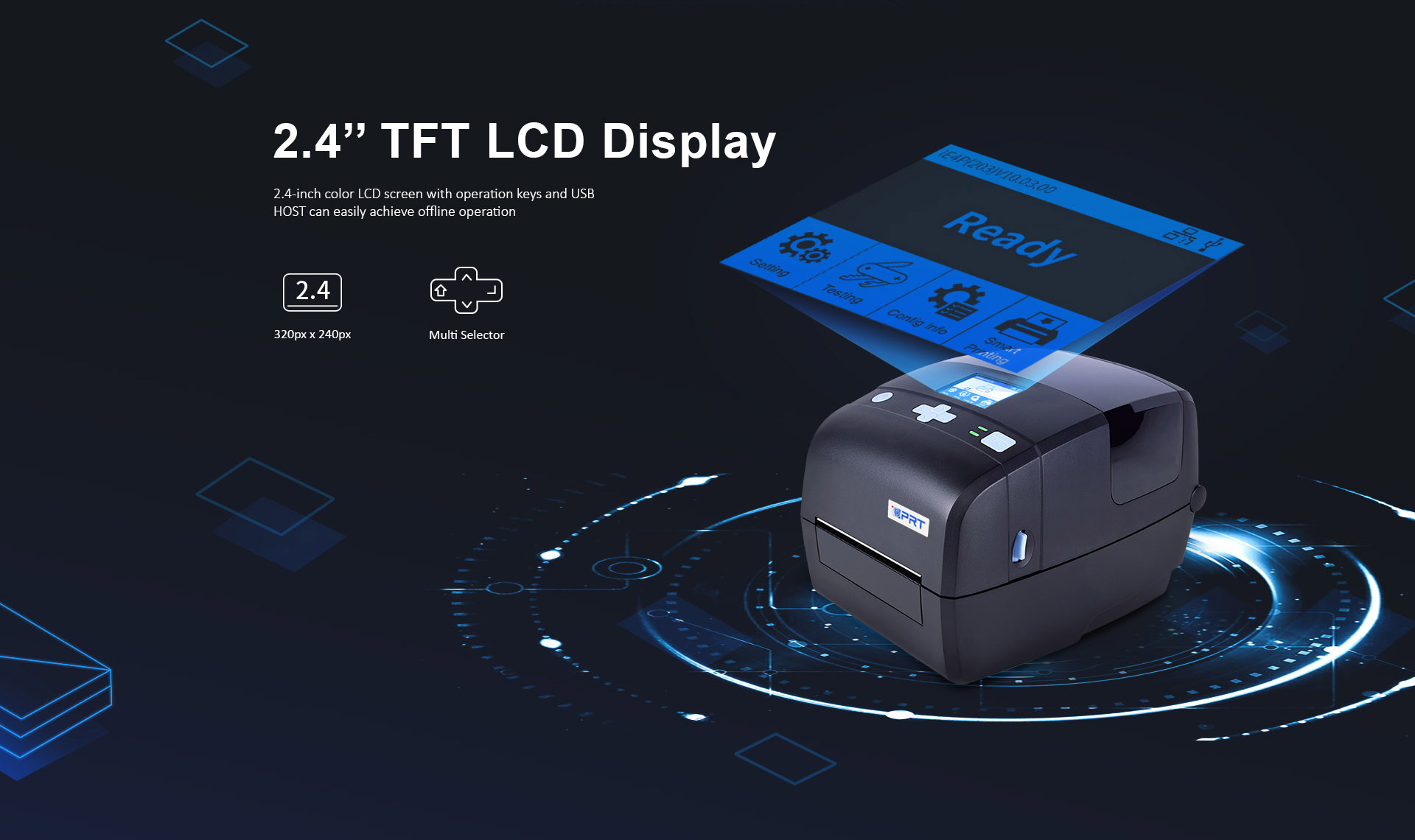

| LCD Display | 2.4" TFT LCD with Navigation Button | |
| RTC Function | Equipped | |
| Power Supply | External AC/DC switching power adapter, AC 100V-240V/DC 24V/2A/48W,Peak 5A | |
| Environment | Operation | 5 to 50℃@ humidity 25% to 85% non-condensing |
| Storage | -40 to 60℃@ humidity 10% to 90% non-condensing | |
| Physical Characteristic | Dimension(L×H×W) | 252×201×181mm |
| Weight | 1.8 kg | |
| Options & Accessory | Peeler Module, Cutter Module, External Label Roll Holder | |
| Agency Approval | CE EMC(55022 Class B), FCC EMC(Cless A), CCC, RoHS | |
Product Overview：
