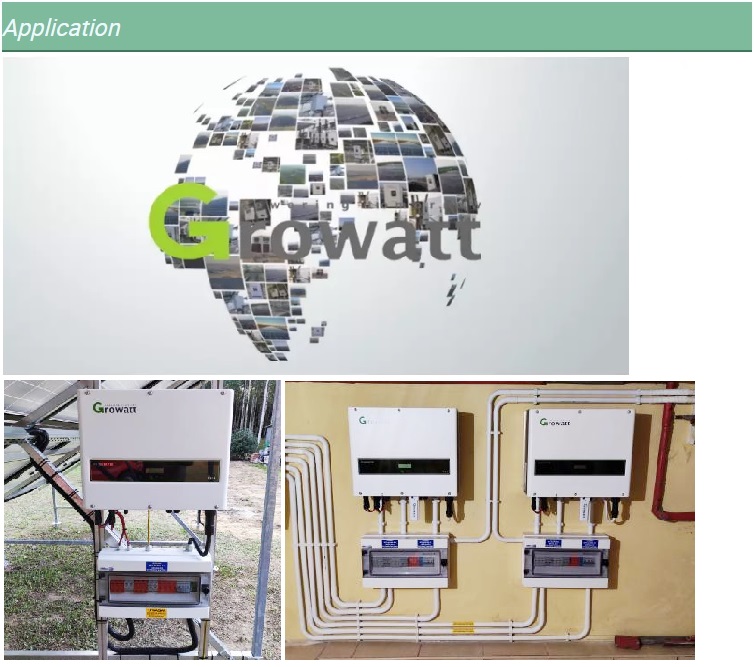

GROWATT 12000~15000TL3-S 3 phase grid-tied inverter for residential or small commercial rooftop application. Fanless design, compact and easy for installation.
GROWATT 12000~15000TL3-S 3 phase grid-tied inverter for residential or small commercial rooftop application. Fanless design, compact and easy for installation.
Warranty :
5years( 10years op)Certificate :
ALLSize :
480/448/200mmOutput Type :
ThreeGROWATT Solar Inverter 12000~15000TL3-S
* Maximum efficiency 98.4%
* Dual MPP trackers
* Supports export limitation
* Max DC voltage 1000VDC
* Natural cooling
|
Growatt 12000TL3-S ~ 15000TL3-S
|
|||
|
Datasheet
|
Growatt 12000TL3-S
|
Growatt 13000TL3-S
|
Growatt 15000TL3-S
|
|
Input data
|
|||
|
Max. recommended PV power (for module STC)
|
14400W
|
15600W
|
18000W
|
|
Max. DC voltage
|
1000V
|
1000V
|
1000V
|
|
Start Voltage
|
160V
|
160V
|
160V
|
|
PV voltage range
|
160V-1000V
|
160V-1000V
|
160V-1000V
|
|
Nominal voltage
|
600V
|
600V
|
600V
|
|
MPP voltage range at Full Power
|
480V-850V
|
480V-850V
|
520V-850V
|
|
Max. input current
|
20A/10A
|
20A/10A
|
20A/10A
|
|
Number of independent MPP trackers/ strings per MPP tracker
|
2/2+1
|
2/2+1
|
2/2+1
|
|
Output (AC)
|
|||
|
Rated AC output power
|
12kW
|
13kW
|
15kW
|
|
Max AC apparent power
|
13.2kVA
|
14.3kVA
|
16.5kVA
|
|
Max. output current
|
19A
|
20.6A
|
23.8A
|
|
AC nominal voltage; range
|
230V/400V
320-478V
|
230V/400V
320-478V
|
230V/400V
320-478V
|
|
AC grid frequency
|
50/60Hz ±5Hz
|
50/60Hz ±5Hz
|
50/60Hz ±5Hz
|
|
Power factor
|
0.8leading - 0.8laging
|
0.8leading - 0.8laging
|
0.8leading - 0.8laging
|
|
THDi
|
<3%
|
<3%
|
<3%
|
|
AC grid connection type
|
3W+N+PE
|
3W+N+PE
|
3W+N+PE
|
|
Efficiency
|
|||
|
Max.efficiency
|
98.4%
|
98.4%
|
98.4%
|
|
Euro - eta
|
97.8%
|
98%
|
98%
|
|
MPPT efficiency
|
99.5%
|
99.5%
|
99.5%
|
|
Protection Devices
|
|||
|
DC reverse polarity protection
|
yes
|
yes
|
yes
|
|
DC switch
|
yes
|
yes
|
yes
|
|
Output over current protection
|
yes
|
yes
|
yes
|
|
Output AC overvoltage Protection - Varistor
|
yes
|
yes
|
yes
|
|
Ground fault monitoring
|
yes
|
yes
|
yes
|
|
Grid monitoring
|
yes
|
yes
|
yes
|
|
Integrated all-pole sensitive leakage current monitoring unit
|
yes
|
yes
|
yes
|
|
General Data
|
|||
|
Dimensions(W/H/D)
|
480/448/200 mm
|
480/448/200 mm
|
480/448/200 mm
|
|
Weight
|
23.5kg
|
23.5kg
|
23.5kg
|
|
Operating temperature range
|
-25 °C ... +60 °C
|
-25 °C ... +60 °C
|
-25 °C ... +60 °C
|
|
Noise emission (typical)
|
≤35 dB(A)
|
≤35 dB(A)
|
≤35 dB(A)
|
|
Altitude
|
3000m
|
3000m
|
3000m
|
|
Self-consumption night
|
< 0.5W
|
< 0.5W
|
< 0.5W
|
|
Topology
|
Transformerless
|
Transformerless
|
Transformerless
|
|
Cooling concept
|
Natural
|
Natural
|
Natural
|
|
Environmental Protection Rating
|
IP65
|
IP65
|
IP65
|
|
Relative humidity
|
0~100%
|
0~100%
|
0~100%
|
|
Features
|
|||
|
DC connection
|
H4/MC4(opt)
|
H4/MC4(opt)
|
H4/MC4(opt)
|
|
AC connection
|
Screw terminal
|
Screw terminal
|
Screw terminal
|
|
Display
|
LCD
|
LCD
|
LCD
|
|
Interfaces:RS232/RS485/RF/Ethernet/Wi-Fi Warranty:5 years/10 years
|
yes/yes/opt/opt/opt
yes/opt
|
yes/yes/opt/opt/opt
yes/opt
|
yes/yes/opt/opt/opt
yes/opt
|
|
Certificates
|
CE, IEC 62109-1/2, VDE 0126-1-1, Greece, VFR 2014, VDE-AR-N4105, G83, EN50438, CEI 0-21, AS4777, IEC 61727, IEC 62116, CQC
|
||
