![](/storage/uploads/images/202205/12/481bfe717d3e18970498c03e43a4ba4c.jpg)
Technical features
|
|
|
|
|
![](/storage/uploads/images/202205/12/89b0dc963db43dfa9db284b8bc0dd265.jpg)
|
|
![](/storage/uploads/images/202205/12/0c83c6174181939d2f856e3b101e2025.jpg)
|
|
![](/storage/uploads/images/202205/12/fabb9642a33fc6df77ef7fb604be6195.jpg)
|
Anti-high temperature performance
|
|
Unique performance
|
|
Higher power saving
|
Reinforced anti-high temperature ABS container and cover to endure the global increasing high temperature situation
|
|
Special positive additive to Improve battery performance & 3 Nano-Carbon enhanced for Improved durability
|
|
25% electricity power saving & up to 100% of cost saving of air conditioner
|
|
|
|
|
|
![](/storage/uploads/images/202205/12/0aae800e60e8533739bd7d9de4a2da06.jpg)
|
|
![](/storage/uploads/images/202205/12/8feba897fcf97d019965eab3dfc50bbc.jpg)
|
|
![](/storage/uploads/images/202205/12/d8571f55f50a54eae969fefb90c46148.jpg)
|
Wide operating temperature range
|
|
High reliability
|
|
Long service life
|
-40°C to +80°C
|
|
UL recognized components & heavy duty insert copper terminals increased safety
|
|
12-15 years service life at 35°C, sustainable at average global temperature
|
|
|
|
|
|
![](/storage/uploads/images/202205/12/9676df9f5440207d75748bf53dca4df5.jpg)
|
|
![](/storage/uploads/images/202205/12/8bfad6b7988524d42f7abf6f68cd79d3.jpg)
|
|
![](/storage/uploads/images/202205/12/7f9bfaaed8aec3d267e78a1909b901ae.jpg)
|
Long warranty
|
|
Assured quality
|
|
Reduced operational cost
|
5years replacement warranty even at temperature up to + 60°C
|
|
UL 1989, CE certificates as well as IEC60896, IEC61427 test report approval
|
|
Less Capex & Opex with HTB batteries than conventional batteries
|
|
|
|
|
|

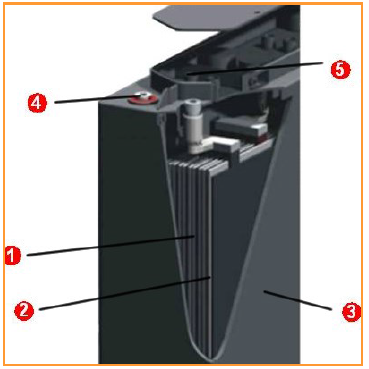

Internal structure
![](/storage/uploads/images/202205/12/dde992f83fec6d6683d65b4067d4948e.jpg)
|
1) Plates: High Tin Pb alloy, optimized for high corrosion resistance.
2) Separator: Highly porous glass micro-fiber separator, optimized for low internal resistance, for maximum absorption of the electrolyte and for electrical separation of the positive and negative plates.
3) Standard Housing: Reinforced special high temperature resistant ABS container and cover adopted.
4) Terminals: Silver plated Copper female insert for easy and safe assembly and maintenance free connection with excellent conductivity.
5) Valves: Release gas in case of excess pressure and protects the cell against atmosphere.
|
Applications
● Telecom; ● Switchgear; ● Uninterruptible power supply (UPS); ● Standby power supply; ● Emergency lighting; ● Microwave; ● Photovoltaic/Solar;
![](/storage/uploads/images/202205/12/7c267232473b4e63bbc95234635e1979.jpg)
Factory
![](/storage/uploads/images/202205/12/666344e5383994f9c4db46311fee9622.jpg)
