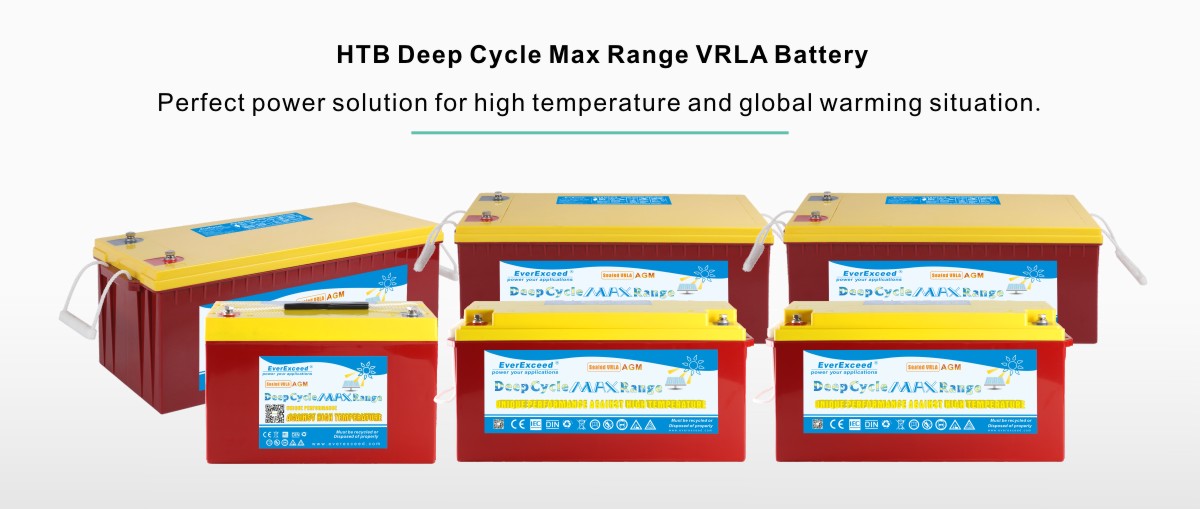

EverExceed top terminal Deep Cycle MAX Range provides high performance and reliability in long duration cycling applications. Our development team combines the market demand with design optimization, precision component selection and state of the art manufacturing process to produce the most cost effective battery solution for today applications.
Rated voltage(V) :
12VRated capacity(Ah) :
20AH-300AHModel :
DM-1220/DM-12300OEM/ODM Service :
Yes, customizedCertificates :
UL1989; IEC61427;IEC60896; CEUsage :
Solar /Photovoltaic; Wind generation; Power wheelchair; Water pumping;Communications;Cathodic Protection;Microwave;Signaling;Broadband;
Technical features
Anti-high temperature performance
Unique performance
Higher power saving
Reinforced anti-high temperature ABS container and cover to endure the global increasing high temperature situation
Special positive additive to Improve battery performance & 3 Nano-Carbon enhanced for Improved durability
25% electricity power saving & up to 100% of cost saving of air conditioner
Wide operating temperature range
High reliability
Long service life
-40°C to +80°C
UL recognized components & heavy duty insert copper terminals increased safety
12-15 years service life at 35°C, sustainable at average global temperature
Long warranty
Assured quality
Reduced operational cost
5years replacement warranty even at temperature up to + 60°C
UL 1989, CE certificates as well as IEC60896, IEC61427 test report approval
Less Capex & Opex with HTB batteries than conventional batteries
Internal structure
1) Plates: High Tin Pb alloy, optimized for high corrosion resistance and deep cycle use.
2) Separator: Highly porous glass micro-fiber separator, optimized for low internal resistance, for maximum absorption of the electrolyte and for electrical separation.
3) Standard housing: Reinforced special high temperature resistant ABS container and cover adopted.
4) Terminals: Silver plated Copper female insert for easy and safe assembly and maintenance free connection with excellent conductivity.
5) Valves: Release gas in case of excess pressure and protects the cell against atmosphere.
Applications
• Solar /Photovoltaic; • Wind generation; • Power wheelchair; • Water pumping
• Communications; • Cathodic Protection; • Microwave; • Signaling; • Broadband;
