Surface Mount, Right-Angle, 3.00mm Stacking Height, 2 Circuits
Surface Mount, Right-Angle, 3.00mm Stacking Height, 2 Circuits
Flexi-Mate 3.70mm Pitch Board-to-Board plug, PCB mount
Board-to-board, wire-to-board and terminator options
Space savings and easy mating/unmating
Ensures reliable electrical connection
Used in LED TVs, LCD panels etc
Datasheet of PCB terminal block:
|
Model Number: |
OL3700/T/2Y/3701R/3702P | ||
|
Brand Name: |
FZOLINK |
Type: |
PCB to PCB /PCB to Wire connector |
|
Rated Current: |
2A DC.AC |
Use: |
Power/Signal/Electric |
|
Pin spacing: |
3.7mm/0.146in |
Diameter of pin: |
2P |
|
Applicable Wire: |
AWG 26#-30# |
Terminal: |
Phosphor bronz |
|
Housing: |
Nylon66 UL94V-0 |
Wafer: |
LCP UL94V-0 |
drawing of PCB terminal block:
Our PCB mount connectors can replace for Molex connector's part no as following:
503471-0200 5034710200
503473-0200 5034730200
503469-0200 5034690200
Connection Type of pcb to pcb connector:
*For wire-to-board connection, the plastic shell needs to process terminals and wires
*For more information, please contact us by email or through any contact information on the webpage.
37001R+3702P (PCB to PCB)

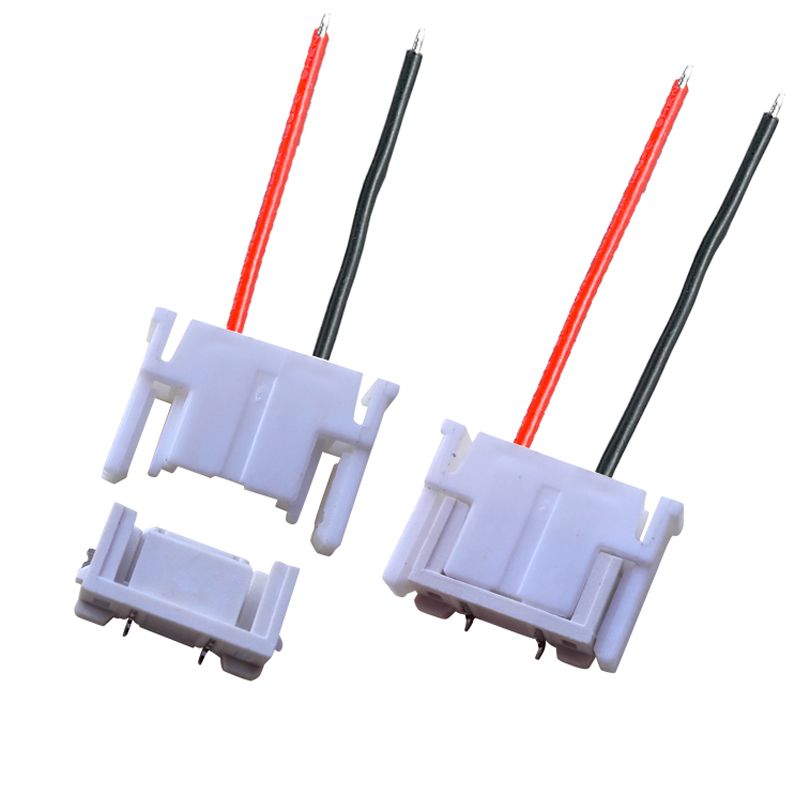

3700-T+2Y+3702P (Wire to PCB)
