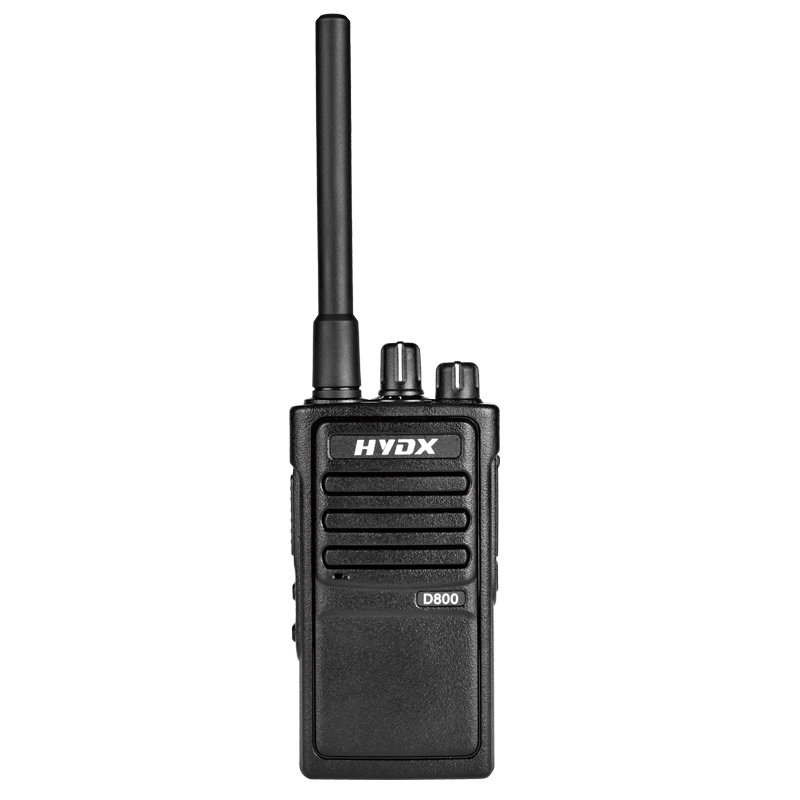

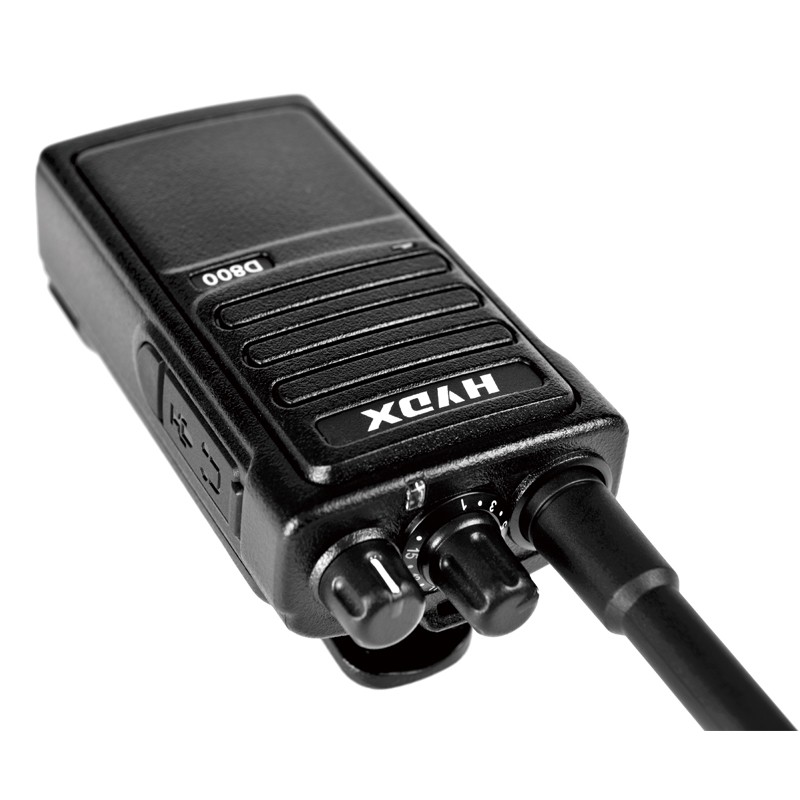

D800 Digital walkie talkie with 1600mAh 32channels 1024 digital contacts dual capacity direct mode and repeater
D800 Digital walkie talkie with 1600mAh 32channels 1024 digital contacts dual capacity direct mode and repeater
DMR Digital Amateur Long Range Two Way Radio
Product Description：
·5W/1W Selectable.The HYDX D800 is a commercial handheld radio with a compact design, featuring high-low power selectable among 5W/1W and 1024 DMR contacts storage, allowing bulk import via software.
·Works Well with Repeater.This solid and rugged radio works on simplex (radio to radio direct), as well as work in conjunction with a hotspot device or repeaters.
·Dual Capacity Direct Mode.It allows monitoring both the DMR community and stay in touch with your friends on the local analog repeaters at the same time. Promiscuous mode enables it to hear all talk groups.
·Large Battery & Crystal Sound.Come with a 1600mAh large battery, the HYDX D800 support 5-7 hours of continuous working time and 36-48 hours of standby time. At the same time, it is with a crystal-clear audio sound when transmitting and receiving.
Main Functions
1.Stored 32 Channels
2.1024 Digital Contacts
3.Private/Group/All Call
4.Dual Capacity Direct Mode and Repeater
5.SMS(PC Editable and Check)
6.Call Records
7.Scanning and Auto Scanning Function
8.Call Alert
9.VOX
10.TOT
11.Power Save/Lower Power Indicator
12.Talkaround
13.Chinese/English/Korean
Technical Specification
|
GENERAL |
|
| Frequency Range |
UHF:400-470MHz VHF:136-174MHz |
| RF Output Power | H:≤5W L:≤1W |
| Channels | 32 |
| Channel Spacing | Wide:25KHz Narrow:12.5KHz |
| CTCSS/DCS | 50 CTCSS / 105 DCS |
| Antenna Impedence | 50Ω |
| Operating Temperature | -20℃+50℃ |
| Operating Voltage | DC 7.4V |
| Battery Type | 1600mAh |
| Dimension(Excluding antenna) | 132(H)×62(W)×40(D)mm |
| Weight(Battery,Antenna Including) | About 270g |
|
TRANSMITTER |
|
| Output Power |
H:≤5W L:≤1W |
| FM Noise |
≥ 35 dB@12.5KHz |
| Transmit Spurious Emission | ≤ -30 dB@1GHz-4GHz |
| Rated Audio Distortion | ≤ 5% |
| Adjacent Channel Power | ≤ -60 dB@12.5KHz |
| RECEIVER | |
| Reference Sensitivity | ≤ -120 dBm@12.5K |
| Adjacent Channel Selectivity | ≥ 65 dB |
| Inter-modulation response immunity | ≤ -55 dB |
| Block |
≤ -84 dB |
| S/N | ≥35 dB@12.5K |
| Rated Output Power | ≤1000mW |
| Rated Audio Distortion | ≤5% |
Packing&Delivery
Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.
* 1 x HYDX D800
* 1 x Antenna
* 1 x Battery
* 1 x Charger
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
* 1 x Adapter
