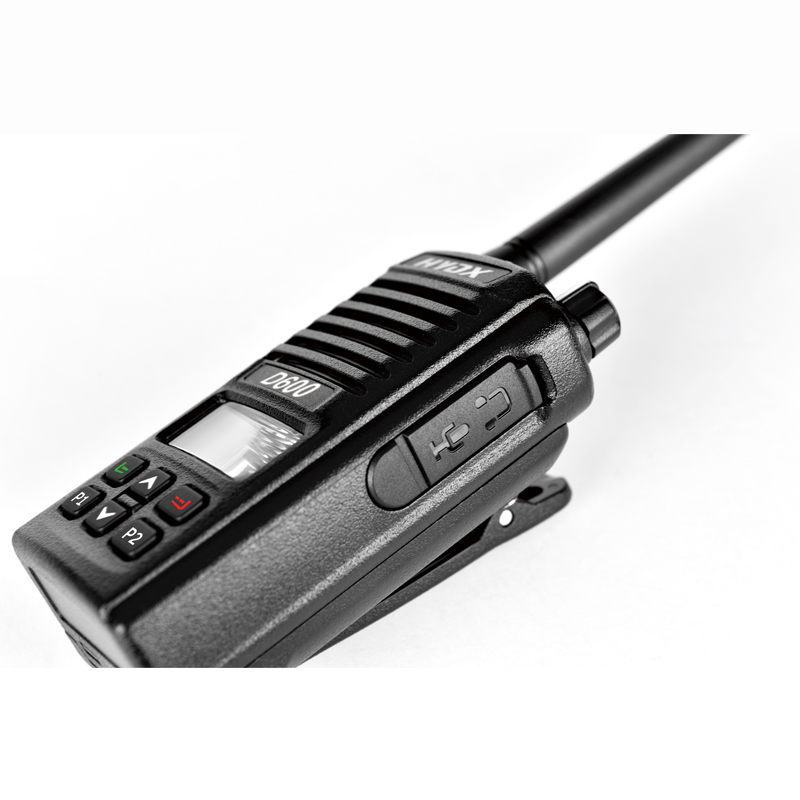

UHF Digital Long Range DMR Ham Radio
Product Description：
·5 Watts strong penetration high power walkie-talkie and long antenna guarantee the stability of the communication process. High mode provides strong penetrating power between the construction area. Low Mode saves battery life and long use.
Left Side PTT allows you to make "direct calls" to the same channel members. GROUP PTT allows you to talk to other people simultaneously even they are not on the same channel. Ideal for on-site business applications, help work crews connect, coordinate and collaborate to get the job done right. Suitable for hotel front desk, retail, restaurants, grocery. Security guard, Supermarket, Construction area, Field, School, Church, Policy Office, Wedding.
Add private CDCSS code in 32 channels to prevent irrelevant signals from interfering with your conversation. Rotate the channel knob easy to switch the channel, adjustable volume level keeps sounds clarity without noise and distortion. The backlit LCD display can easily read the status of the channel and setting. A built-in speaker and mic. Communicate effortlessly in noisy areas like carnivals parties and concerts.
With a large-capacity 1600mAh Li-ion rechargeable battery. Working Time: 8-12 hours, Standby Time: 36-48 hours. Less than 5h to be fully charged quickly. Anti-drop two-way radio can withstand harsh environments. Support program to be compatible with other brands' radios. ( Software only support PC, not Mac) The frequency range is UHF 400-470MHz/136-174MHz.
Main Functions
1.Stored 32 Channels
2.1024 Digital Contacts
3.Private/Group/All Call
4.Dual Capacity Direct Mode and Repeater
5.SMS(PC Editable and Check)
6.Call Records
7.Scanning and Auto Scanning Function
8.Call Alert
9.VOX
10.TOT
11.Power Save/Lower Power Indicator
12.Talkaround
13.Chinese/English/Korean
Technical Specification
|
GENERAL |
|
| Frequency Range |
UHF:400-470MHz VHF:136-174MHz |
| RF Output Power | H:≤5W L:≤1W |
| Channels | 32 |
| Channel Spacing | Wide:25KHz Narrow:12.5KHz |
| CTCSS/DCS | 50 CTCSS / 105 DCS |
| Antenna Impedence | 50Ω |
| Operating Temperature | -20℃+50℃ |
| Operating Voltage | DC 7.4V |
| Battery Type | 1600mAh |
| Dimension(Excluding antenna) | 133(H)×62(W)×40(D)mm |
| Weight(Battery,Antenna Including) | About 270g |
|
TRANSMITTER |
|
| Output Power |
H:≤5W L:≤1W |
| FM Noise |
≥ 35 dB@12.5KHz |
| Transmit Spurious Emission | ≤ -30 dB@1GHz-4GHz |
| Rated Audio Distortion | ≤ 5% |
| Adjacent Channel Power | ≤ -60 dB@12.5KHz |
| RECEIVER | |
| Reference Sensitivity | ≤ -120 dBm@12.5K |
| Adjacent Channel Selectivity | ≥ 65 dB |
| Inter-modulation response immunity | ≤ -55 dB |
| Block |
≤ -84 dB |
| S/N | ≥35 dB@12.5K |
| Rated Output Power | ≤1000mW |
| Rated Audio Distortion | ≤5% |
Packing&Delivery
Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.
* 1 x HYDX D600
* 1 x Antenna
* 1 x Battery
* 1 x Charger
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
* 1 x Adapter
