Xiamen Hanin Electric Technology Co., Ltd.

Desktop direct thermal label printer

iDPRT 2inch desktop direct thermal label printer is suitable for office printing, retail printing, catering printing and supermarket printing, etc.

Request A Quote

Product Details

Product Information:

Model: SP210 desktop direct thermal label printer

Product Features：

In fashion and compact design;
Supports triple types of inner core diameter of label rolls:0.5"(12.7mm), 1"(25.4mm), 1.5"(38.1mm);
Easy for the printhead replacement, quite convenient for after-sale service;
Fully-covered gear box design, which protect the printer well away from the dust;
Easy for the paper roll loading;
Support big label roll is supported with optional external label holder;
The black mark sensor is movable, supports various label paper;
With design of front paper-out, water resistant;
Equipped with Bartender label design software & Seagull Windows Driver;

Product Advantage:

Large motor, large gear, extremely stable

SP210 direct thermal label printer is with fully enclosed gear protection design, which provents the dust from entering, and greatly reduce frequency of motor maintenance.

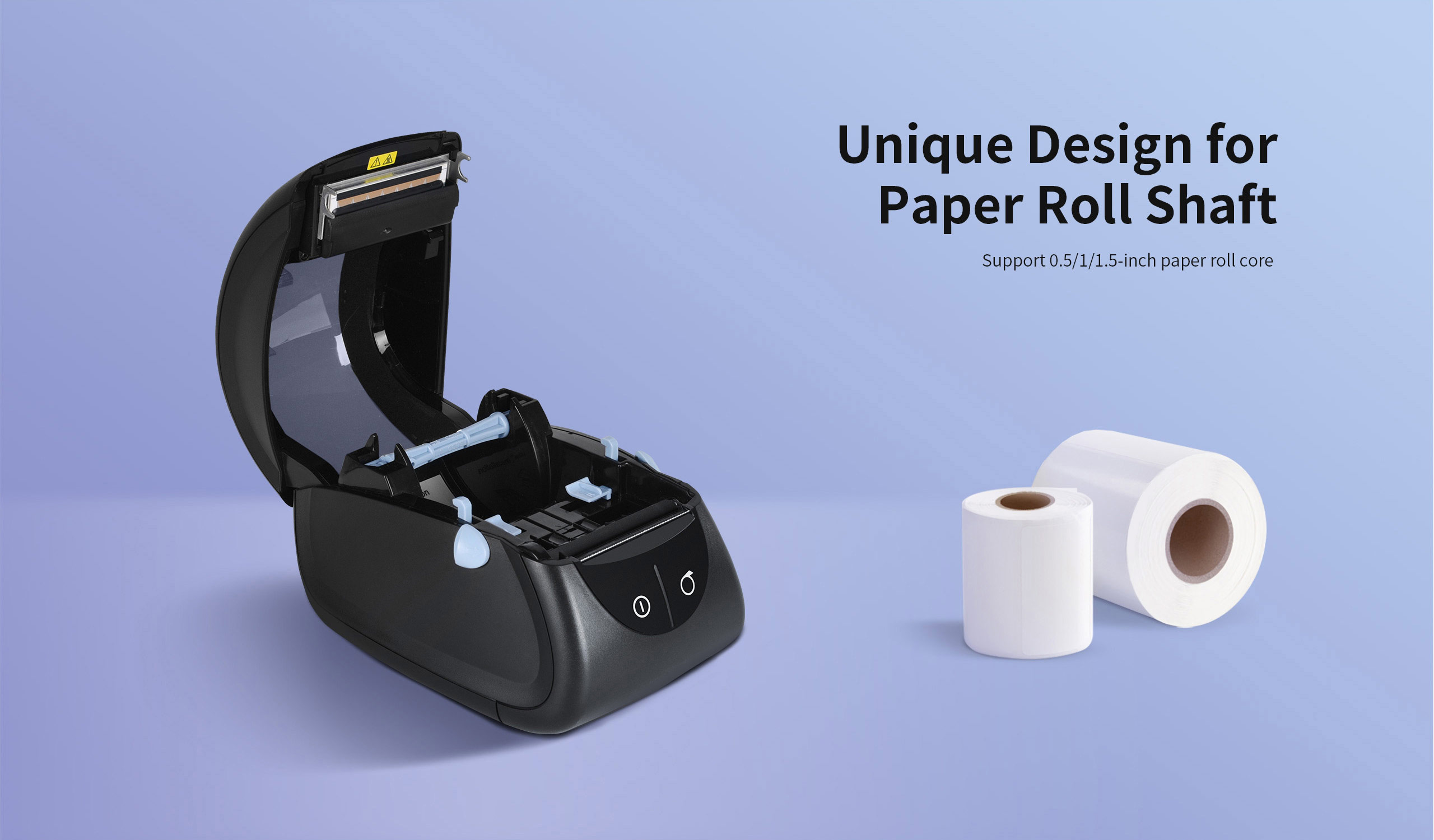

Unique design for paper roll shaft

2inch label printer SP210 support 0.5inch, 1inch and 1.5inch paper roll core.

Product Specification:

Model		SP210
Printing	Printing Method	Direct thermal printing
	Resolution	203dpi(8dots/mm)
	Printing Speed	76mm/s Max
	Printing Width	56mm Max
	Printing Length	400mm
Processor		32-bit RISC CPU
Memory	RAM	2 MB
Memory	Flash	2 MB
Detection	Sensors	Out of paper detection, Gap detection, Notch detection, Black mark detection, TPH temperature detection
Media	Types	Fan-fed or Roll-fed, Die-cut or Continuous label
	Width	1"(25mm) ~ 2.44"(62mm)
	Thicknes	0.003"(60um) ~ 0.007"(180um)
	Label Roll Diameters	90mm
	Core Diameter	0.5"(12.7mm), 1"(25.4mm), 1.5"(38.1mm)
Programming Language		TSPL Simulation
Software	Label Design	Bartender Ultralite, iDPRT Label Designer
Software	Driver	Windows 2000/XP/Vista/7/8/8.1/10, Linux, macOS
Resident Fonts	Bitmap Fonts	6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable and 10 times expandable in horizontal and vertical directions
Barcode	1D	Code 39, Code 93, EAN-8/13 (add on 2 & 5), UPC-A/E (add on 2 &5), I 2 of 5 & I 2 of 5 with Shipping
		Bearer Bars,Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart,
		Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar,
		German Post Code, Planet 11 & 13 digit, Japanese Postnet, I2 of 5 with human readable check digit,
		Standard 2 of 5, Industrial 2 of 5,Logmars, Code 11, Code 49, Cadablock
	2D	PDF417, Data Matrix, Maxi Code, QR Code, Micro PDF417, Micro QR Code, Aztec
Interfaces		USB, RS232C
Control Panel		Tri-color status LED, Power and Feed button
Power Adapter	Power Input	AC100V ~240V 50/60Hz 1.5A
Power Adapter	Power Supply	DC12V/2A
Environment	Operation	5°C~50°C, relative humidity 25% ~ 85%, no condensing
Environment	Storage	-40°C~60°C, relative humidity 10% ~ 90%, no condensing
Physical	Dimension	186(L)133(W)128(H)mm
Characteristics	Weight	805g, excluding consumables
Optional Accessories		External label roll holder
Agency Approvals		CCC, FCC, CE
