Home office printer

iDPRT small home office printer helps you to manage all the label printing activities like mobile PDF printing, office address printing, household catagory label printing, retail label printing, etc.

Request A Quote

Product Details

Product Information

Model: SP310 Home office printer

Product Features

In compact size and nice design
Supports the media with three types of roll diameter, 0.5'', 1'' and 1.5'';
Easily printhead replaced design, end-user can make it easily;
The whole gear box is covered inside, no need to worry dust go inside;
Easy to place the label roll or paper roll inside;
Optional external paper holder is availale for bigger paper rolls;
Adjustable black mark sensor which allows for more paper rolls;
With paper-out in front and water-proof design;
FOC Bartender Ultralite version and iDPRT label designer;

Product Advantages

Mobile PDF printing

The affordable SP310 office label printer is available with Free iDPRT Hilabel Software, which allows the user to crop, rotate, and print shipping labels, barcodes, and a variety of label content from your mobile device.

Compact and Fashionable Design

With the fashinable and compact design, SP310 is the best choice for small office printing. At the same time, it is equipped with large gear and large motor to ensure the stable printing performance.

ESC/POS and TSPL Languages

As one of the top small office printers, SP310 supports both ESC/POS and TSPL protocol, which allows the user to use both receipt paper and labels.

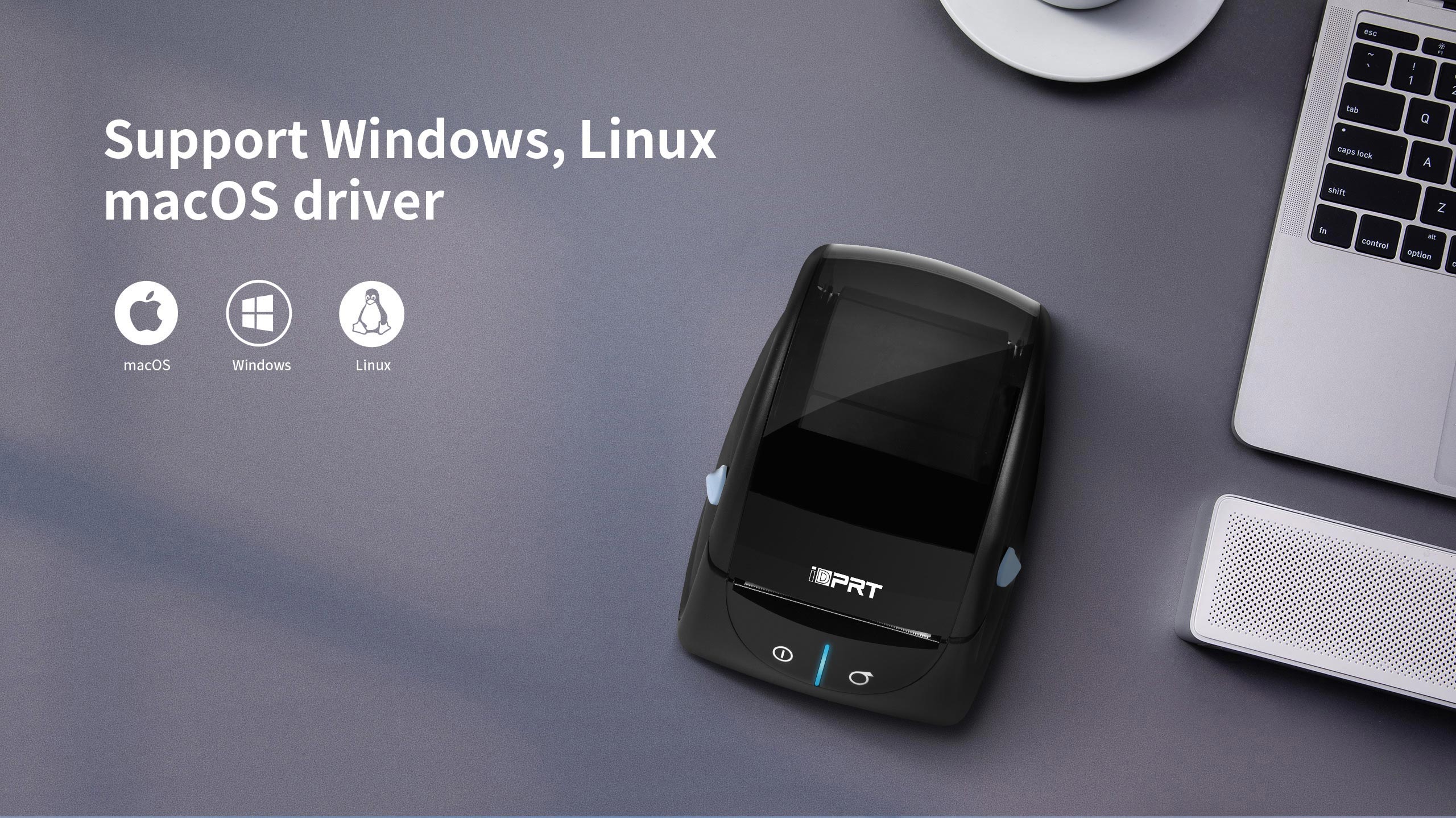

Compatible with OS of Windows, MacOS, Linux

iDPRT offer the drivers for SP310 Home and small office printers with Windows, MacOS and Linux, which can meet all your label editting requirements.

Product Specification

Model		SP310
Printing	Printing Method	Direct thermal printing
	Resolution	203dpi(8dots/mm)
	Printing Speed	102mm/s Max
	Printing Width	80mm Max
	Printing Length	300mm
Processor	32-bit RISC CPU
Memory	RAM	2 MB
Memory	Flash	2 MB
Detection	Sensors	Out of paper detection, Gap detection, Notch detection, Black mark detection, TPH temperature detection
Media	Types	Fan-fed or Roll-fed, Die-cut or Continuous label
	Width	1"(25mm) ~ 3.35"(85mm)
	Thicknes	0.003"(60um) ~ 0.007"(180um)
	Label Roll Diameters	90mm
	Core Diameter	0.5"(12.7mm), 1"(25.4mm), 1.5"(38.1mm)
Programming Language	TSPL Simulation

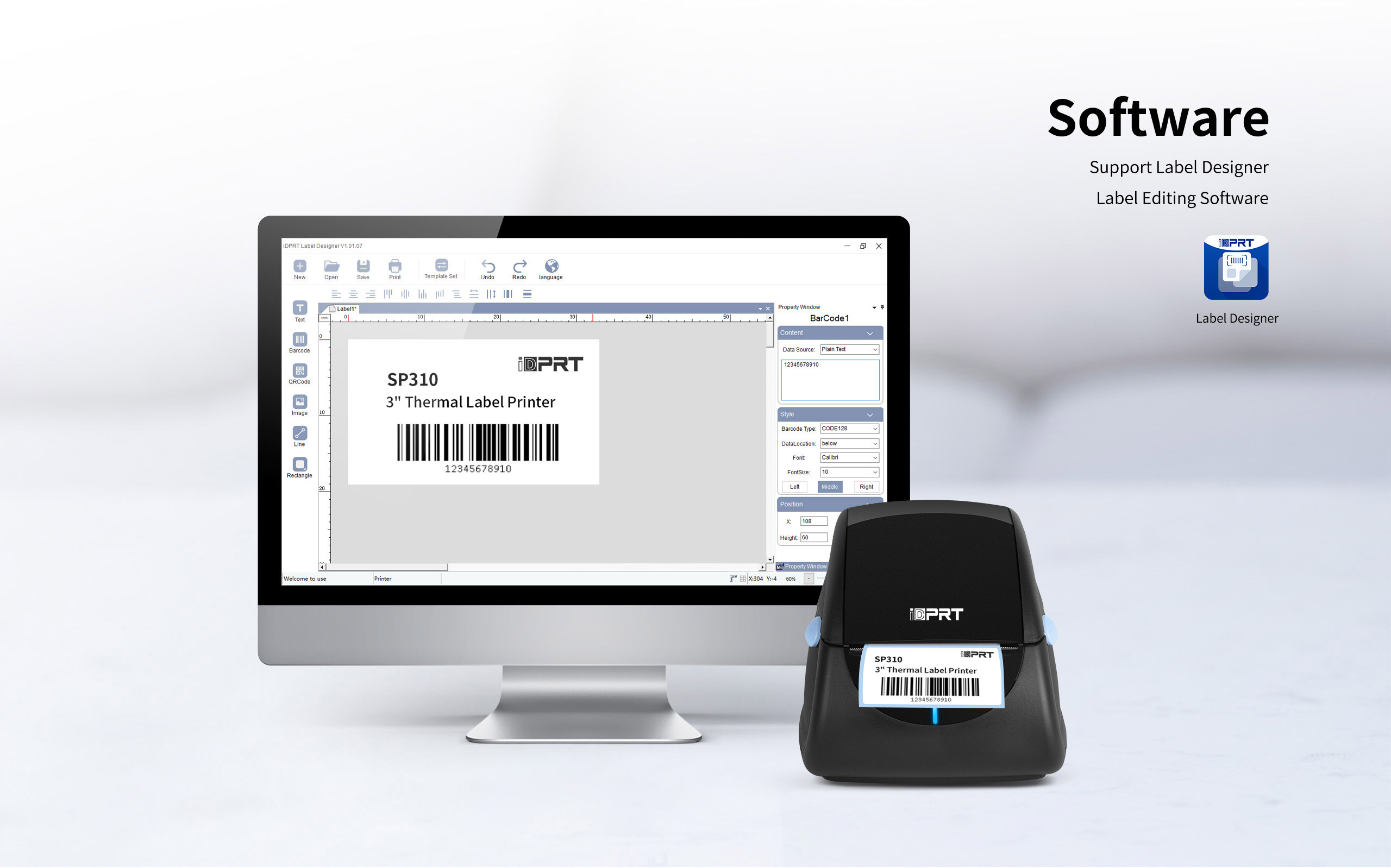

Software	Label Design	Bartender Ultralite, iDPRT Label Designer
Software	Driver	iDPRT Driver：Windows XP, Vista, 7, 8, 10, Linux ,MacOS
Resident Fonts	Bitmap Fonts	6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable and 10 times expandable in horizontal and vertical directions
Barcode	1D	Code 39, Code 93, EAN-8/13 (add on 2 & 5), UPC-A/E (add on 2 &5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars,Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5,Logmars, Code 11, Code 49, Cadablock
Barcode	2D	PDF417, Data Matrix, Maxi Code, QR Code, Micro PDF417, Micro QR Code, Aztec
Interfaces	USB, RS232C
Control Panel	Tri-color status LED, Power and Feed button
Power Adapter	Power Input	AC100V ~240V 50/60Hz 1.5A
Power Adapter	Power Supply	DC12V/2A
Environment	Operation	5°C~50°C, relative humidity 25% ~ 85%, no condensing
Environment	Storage	-40°C~60°C, relative humidity 10% ~ 90%, no condensing
Physical	Dimension	188(L)134(W)150(H)mm
Characteristics	Weight	880g, excluding consumables

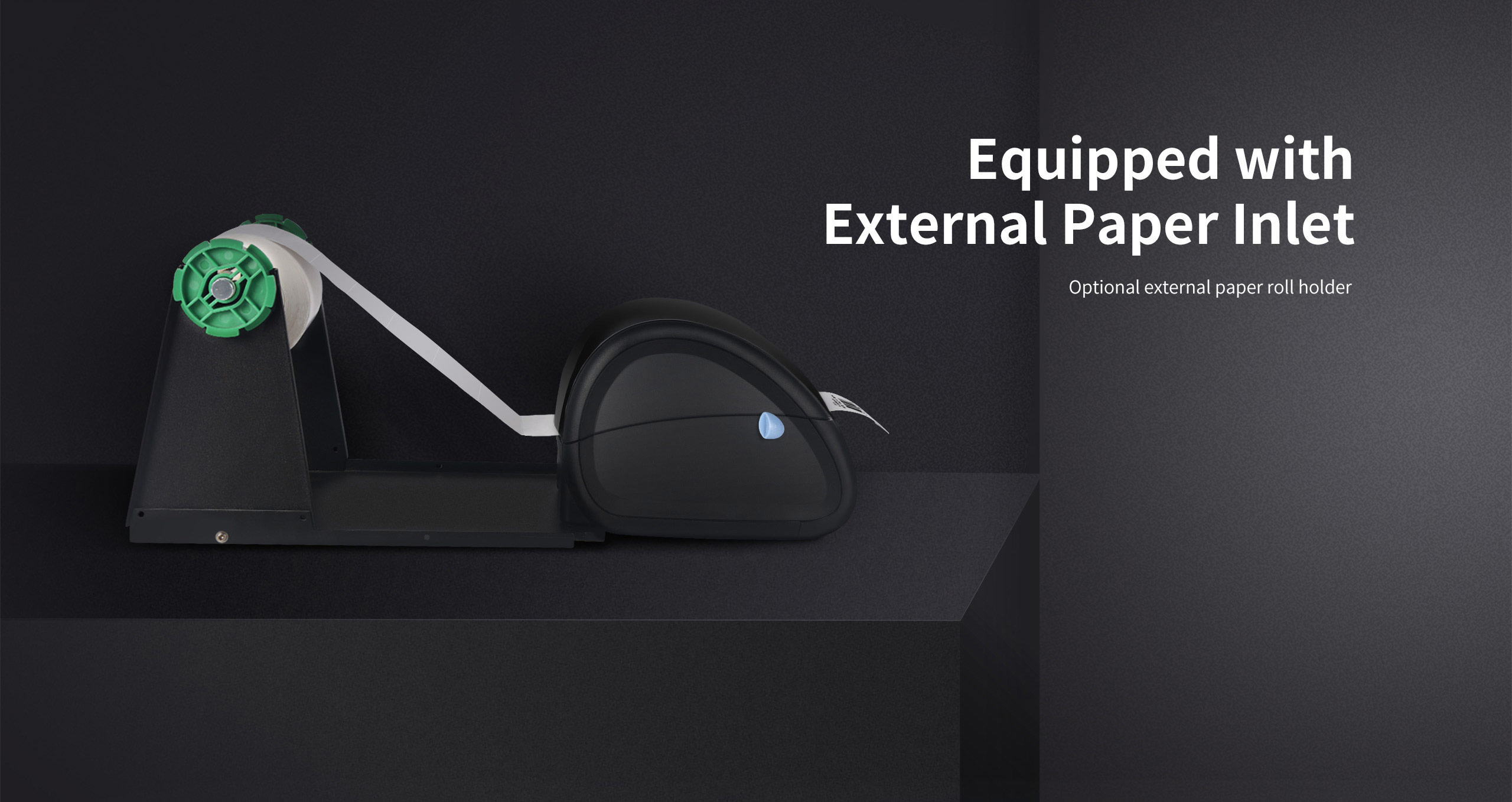

Optional Accessories	External label roll holder
Agency Approvals	CCC, FCC, CE
