Desktop Direct Thermal Barcode Printer

iDPRT Professional desktop thermal barcode label printer iD4P, thermal barcode printer featured with high printing speed, big memory, multi interfaces and ZPL protocol, DPL protocol, EPL protocol,TSPL protocol supported.

Request A Quote

Product Details

Product Information:

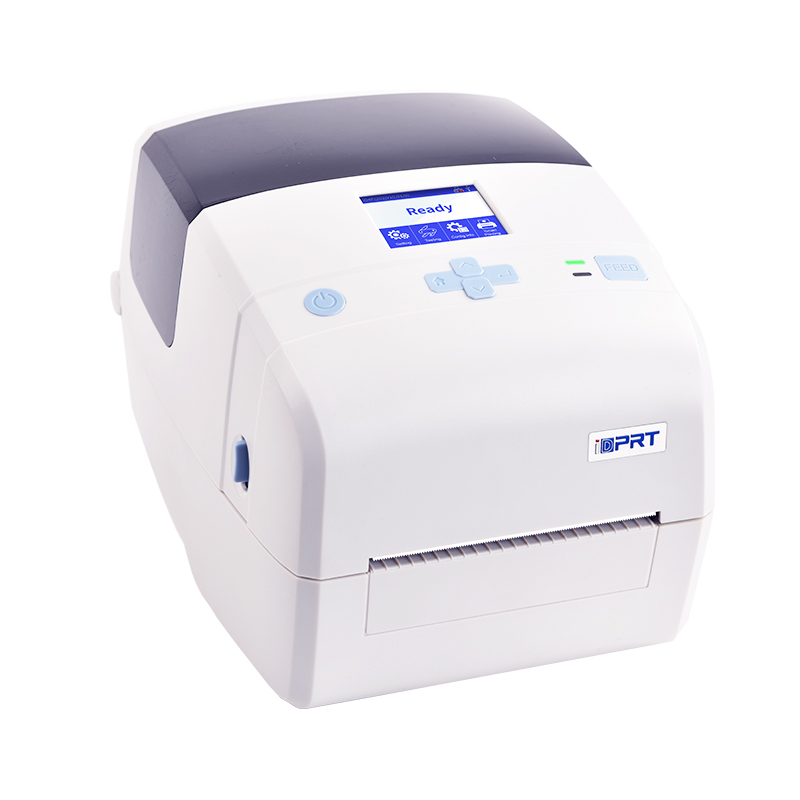

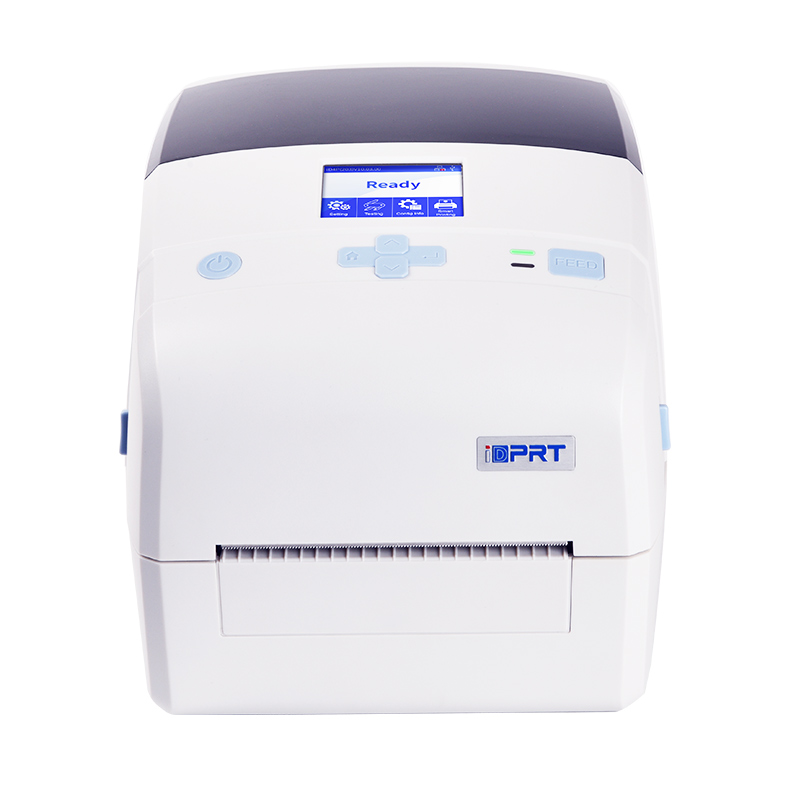

Model: iD4P,4 inch desktop thermal barcode label printer

Product Features：

Max.Printing Speed: 8 ips (203dpi) / 6 ips(300dpi);
Super Memory: RAM 128MB, Flash 256MB;
203 dpi and 300 dpi fully auto detect and auto print speed adjustment;
Multi-language: ZPL-II,TSPL, EPL2 and DPL Emulation;
Use-friendly control panel and 2.4-inch color TFT display

Product Advantages:

Print speed up to 8 ips.
The modular design of printer head makes the disassembly and assembly easy.
With the function to automatically identify the printer head with 203 dpi and 300dpi and automatically configure the printer without PC settings.
With super large storage, DDR2 RAM 128 MB,Flash 256 MB.
Support multiple interfaces, USB HOST, serial interface, B-type USB, Ethernet port for standard, Wi-Fi and Bluetooth module for optional.

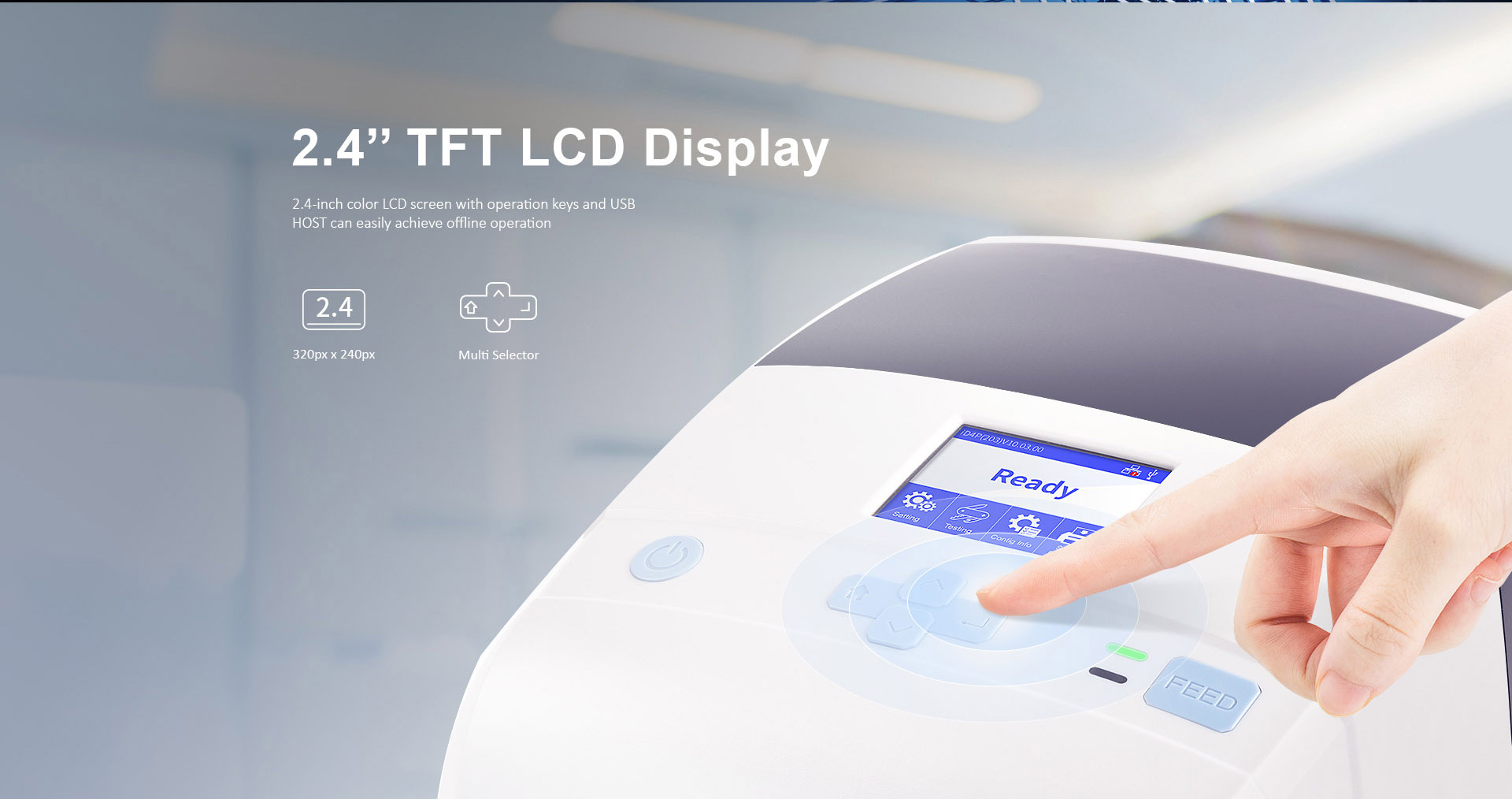

2.4-inch color LCD screen with operation keys and USB HOST can easily achieve offline operation.
With free label editing software Bartender to make the label editing convenient and easy.
Simple housing with clamshell structure, with external paper roll holder optional supported

Product Specification:

Model		iD4P	iD4S
	Printing Method	Direct thermal	Direct thermal
	Resolution	203dpi/300dpi	203dpi / 300dpi
		8 ips (203dpi)	5 ips (203dpi)
		8 ips (203dpi)	5 ips (203dpi)
	Max. Printing Speed	6 ips (300dpi)	4 ips (300dpi)
Printing	Max. Printing Width	108mm(203dpi),106mm(300dpi)	108mm(203dpi),106mm(300dpi)
	Max. Printing Length	2,286mm(203dpi),1,524mm(300dpi)	2,286mm(203dpi),1,524mm(300dpi)
Memory	RAM	128 MB	128 MB
Memory	Flash	256 MB	256 MB
Detection	Sensor	Print Frame Open Detect, Paper Out Detect, TPH	Print Frame Open Detect, Paper Out Detect, TPH
		Over Heating Detect, 2 Fixed Position See-through	Over Heating Detect, 2 Fixed Position See-through
		sensor, Full Range Reflective Sensor	sensor, Full Range Reflective Sensor
Media	Types	Continuous Paper, Gap, Black Mark,	Continuous Paper, Gap, Black Mark,
	Types	Punched Hole Label	Punched Hole Label
	Width	1''(25.4)-4.65''(118mm), include the liner	1''(25.4)-4.65''(118mm), include the liner
	Thickness	0.002''(60um)-0.01''(250um)	0.002''(60um)-0.01''(250um)
	Label Roll Diameter	5''(127mm) Max	5''(127mm) Max
	Core Diameter	0.5''(12.7mm), 1''(25.4mm). 1.5''(38mm)	0.5''(12.7mm), 1''(25.4mm). 1.5''(38mm)
	Label Design Software	Bartender Ultralite, iDPRT Label Designer	Bartender Ultralite, iDPRT Label Designer
Software	Driver	Seagull Driver：Windows7,8,10	Seagull Driver：Windows7,8,10
Software	Driver	iDPRT Driver：Windows XP, Vista, 7, 8, 10, Linux ,MacOS	iDPRT Driver：Windows XP, Vista, 7, 8, 10, Linux ,MacOS
Resident Fonts	Bitmap fonts	6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270°	6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270°
		rotatable and 10 times expandable in	rotatable and 10 times expandable in
		horizontal and vertical directions	horizontal and vertical directions
	TTF fonts	Monotype CG Triumvirate™. 0°, 90°, 180°,	Monotype CG Triumvirate™. 0°, 90°, 180°,
	TTF fonts	270° rotatable	270° rotatable
Download Fonts	Bitmap fonts	90°, 180°, 270° rotatable and 10
			90°, 180°, 270° rotatable and 10
		times expandable in horizontal
			times expandable in horizontal
		and vertical directions
			and vertical directions
	Asian fonts
		16x16, 24x24. Traditional Chinese, Simplified	16x16, 24x24. Traditional Chinese, Simplified
		Chinese,Japanese, Korean, 90∘,180∘,270∘,	Chinese,Japanese, Korean, 90∘,180∘,270∘,
		rotatable and 8 times expandable in horizontal	rotatable and 8 times expandable in horizontal
		and vertical directions	and vertical directions
	TTF fonts	90°, 180°, 270° rotatable	90°, 180°, 270° rotatable
Barcodes	1D	Code 39, Code 93, EAN 8/13 (add on 2 & 5),	Code 39, Code 93, EAN 8/13 (add on 2 & 5),
		UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5	UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5
		with Shipping Bearer Bars, Codabar, Code	with Shipping Bearer Bars, Codabar, Code
		128 (subset A, B, C), EAN 128, RPS 128, UCC	128 (subset A, B, C), EAN 128, RPS 128, UCC
		128, UCC/EAN-128 K-Mart, Random Weight,	128, UCC/EAN-128 K-Mart, Random Weight,
		Postnet, ITF 14, China Postal Code, HIBC, MSI,	Postnet, ITF 14, China Postal Code, HIBC, MSI,
		Plessey, Telepen, FIM, GS1 DataBar, German	Plessey, Telepen, FIM, GS1 DataBar, German
		Post Code,Planet 11 & 13 digit, Japanese	Post Code,Planet 11 & 13 digit, Japanese
		Postnet, I 2 of 5 with human readable check	Postnet, I 2 of 5 with human readable check
		digit, Standard 2 of 5, Industrial 2 of 5 ,	digit, Standard 2 of 5, Industrial 2 of 5 ,
		Logmars, Code 11, Code 49, Cadablock	Logmars, Code 11, Code 49, Cadablock
	2D	PDF417, Data matrix code, Maxi Code,	PDF417, Data matrix code, Maxi Code,
		QR code, Micro PDF417, Micro QR code,	QR code, Micro PDF417, Micro QR code,
		Aztec code	Aztec code

Code Page		850, 852, 437, 860, 863, 865, 857, 861, 862,	850, 852, 437, 860, 863, 865, 857, 861, 862,
		855, 866,737, 851, 869, WINDOWS 1250,	855, 866,737, 851, 869, WINDOWS 1250,
		1251, 1252, 1253, 1254,1255, 1257,UTF-8,	1251, 1252, 1253, 1254,1255, 1257,UTF-8,
		UTF-16BE, UTF-16LE,DBCS 932 (JIS), 936(GBK),	UTF-16BE, UTF-16LE,DBCS 932 (JIS), 936(GBK),
		949(Koran), 950(BIG5)	949(Koran), 950(BIG5)
Graphics		Resident graphic file types are BMP and
			Resident graphic file types are BMP and
		PCX, other graphic formats are converted by
			PCX, other graphic formats are converted by

		the software download
			the software download
Interfaces	Standard	USB Type B,USB HOST, Serial Port, Ethernet	USB Type B
Interfaces	Optional	Wi-Fi and Bluetooth	Wi-Fi and Bluetooth
Control Panel		Power switch button, FEED button, 2 indicating LEDs	Power switch button, FEED button, 2 indicating LEDs
LCD Display		2.4" TFT LCD with Navigation Button	N/A
RTC Function		Equipped	N/A
Power Supply			External AC/DC switching power adapter, AC
		External AC/DC switching power adapter, AC
			100V-240V/DC 24V/2A
		100V-240V/DC 24V/2.5A/60W,Peak 9A
Environment	Operation	5 to 50℃@ humidity 25% to 85% non-condensing	5 to 50℃@ humidity 25% to 85% non-condensing
Environment	Storage	-40 to 60℃@ humidity 10% to 90% non-condensing	-40 to 60℃@ humidity 10% to 90% non-condensing

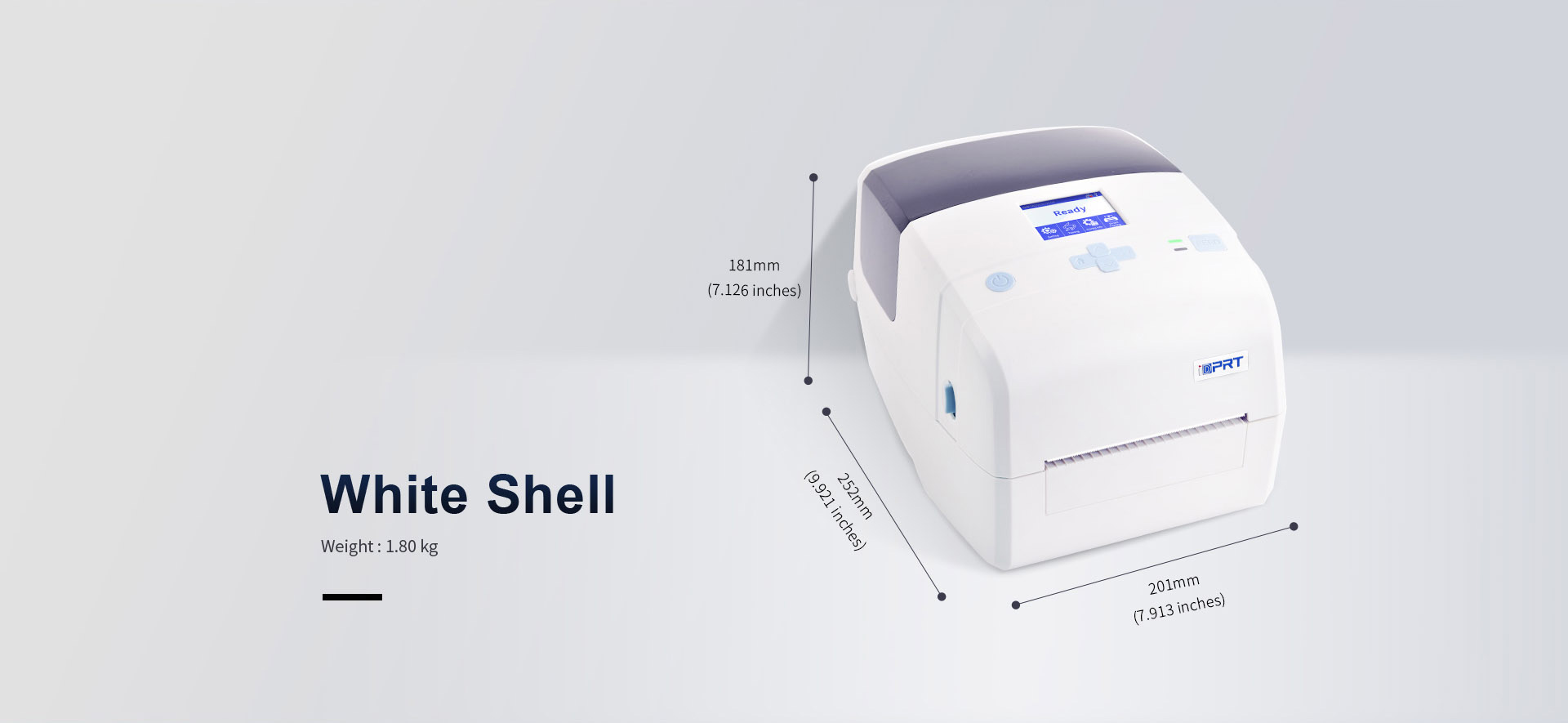

Physical	Dimension(L×H×W)	203×252×181mm	203×252×181mm
	Dimension(L×H×W)	203×252×181mm	203×252×181mm
Characteristic	Weight	1.8 kg	1.8 kg
Options & Accessory			Peeler Module, Cutter Module, External
		Peeler Module, Cutter Module, External
			Label Roll Holder
		Label Roll Holder
Agency Approval		CE EMC(55022 Class B), FCC EMC(Class A), CCC, RoHS	CE EMC(55022 Class B), FCC EMC(Class A), CCC, RoHS
