5KW Single Phase Hybrid Inverter On Grid
Corigy single phase hybrid inverter on grid for residential and small commercial battery storage and solar PV systems.
|
Model No. |
CP-5K-U2048370LP1-EU |
|
Battery Input Data |
|
|
Battery Type |
Lead-acid or Lithium-ion |
|
Battery Voltage Range (V) |
40~60 |
|
Max. Charging Current (A) |
120 |
|
Max. Discharging Current (A) |
120 |
|
Charging Curve |
3 Stages / Equalization |
|
External Temperature Sensor |
Yes |
|
Charging Strategy for Li-Ion Battery |
Self-adaption to BMS |
|
PV String Input Data |
|
|
Max. DC Input Power (W) |
6500 |
|
Rated PV Input Voltage (V) |
370 (125~500) |
|
Start-up Voltage (V) |
125 |
|
MPPT Range (V) |
150-425 |
|
Full Load DC Voltage Range (V) |
300-425 |
|
PV Input Current (A) |
13+13 |
|
Max. PV ISC (A) |
17+17 |
|
Number of MPPT / Strings per MPPT |
2/1+1 |
|
AC Output Data |
|
|
Rated AC Output and UPS Power (W) |
5000 |
|
Max. AC Output Power (W) |
5500 |
|
Peak Power (off grid) |
2 times of rated power, 10 S |
|
AC Output Rated Current (A) |
22.7 |
|
Max. AC Current (A) |
25 |
|
Max. Continuous AC Pass Through (A) |
35 |
|
Power Factor |
0.8 leading to 0.8 lagging |
|
Output Frequency and Voltage |
50/60Hz; L/N/PE 220/230Vac (single phase) |
|
Grid Type |
Single Phase |
|
Current Harmonic Distortion |
THD<3% (Linear load<1.5%) |
|
Efficiency |
|
|
Max. Efficiency |
97.60% |
|
Euro Efficiency(PV-AC) |
96.50% |
|
Euro Efficiency(battery-AC) |
95.70% |
|
MPPT Efficiency |
99.90% |
|
Protection |
|
|
PV Input Lightning Protection |
Integrated |
|
Anti-islanding Protection |
Integrated |
|
PV String Input Reverse Polarity Protection |
Integrated |
|
Insulation Resistor Detection |
Integrated |
|
Residual Current Monitoring Unit |
Integrated |
|
Output Over Current Protection |
Integrated |
|
Output Shorted Protection |
Integrated |
|
Output Over Voltage Protection |
Integrated |
|
Surge Protection |
DC Type II / AC Type II |
|
Certifications and Standards |
|
|
Grid Connection Standard |
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 |
|
Safety EMC / Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
|
General Data |
|
|
Operating Temperature Range (℃) |
-45~60℃, >45℃ Derating |
|
Cooling |
Natural cooling |
|
Noise (dB) |
<30 dB |
|
Communication with BMS |
RS485; CAN |
|
Weight (kg) |
14 |
|
Size (mm) |
366W×470H×260D |
|
Protection Degree |
IP65 |
|
Installation Style |
Wall-mounted |
|
Warranty |
5 years |
● MPPT efficiency up to 99.9%
● Parallel and split phase connection
● Power-saving mode, reducing no-load loss
● ON/OFF rocker switch for AC output control
● Complete protections for short circuit, overload, etc

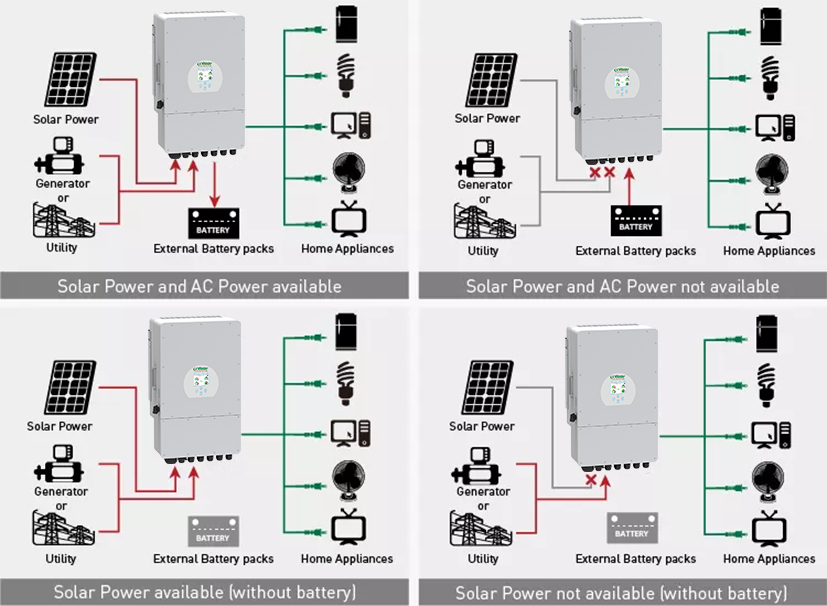

● AC bypass and inverter output. Uninterrupted power supply
● Charging modes: Solar only/priority, Grid Priority and Hybrid
● LED/LCD Display for showing monitoring&instantaneous data
● Activation functions for AC Li-ion battery&PV, support lead-acid&Li-ion battery
● Intelligent adjustable speed span for high heat dissipation and longer working time
● Full digital closed-loop control of current. Advanced SPWM Technology with pure sine wave output.
