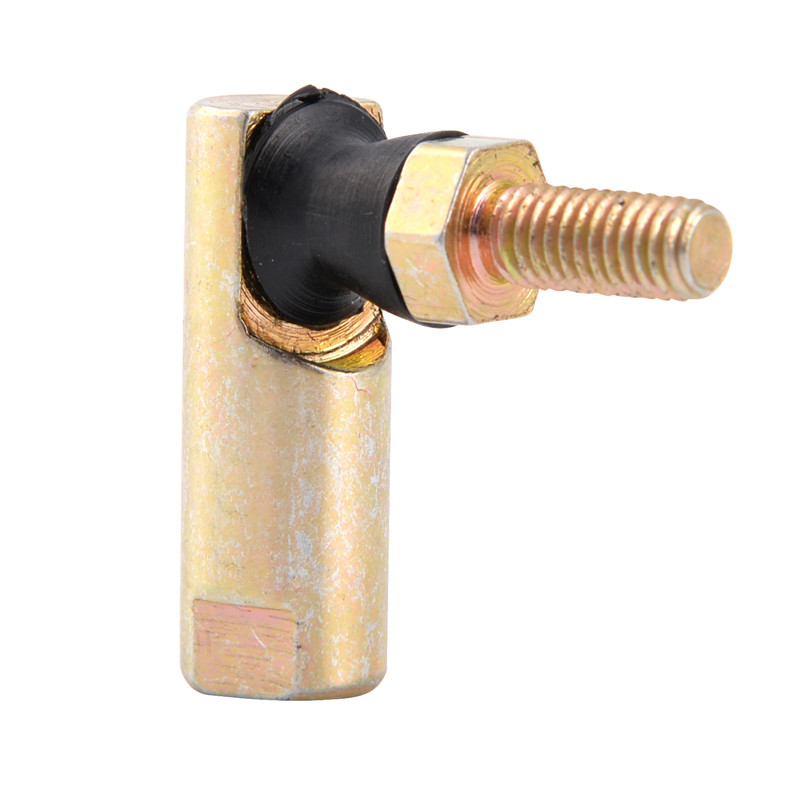

Ball Joint With Rubber Grommet,
SAEJ 490/Type G/Style 2
Bearing No. | Dimensions(inch/mm) |
tensile
shear
stength (Pounds)
|
force
to
remove
ball stud
(Pounds)
|
||||||||||||
A
UNF
|
B | c | D | E | F | G | H | I | J | K | M | L | |||
R103G | 10-32 | 1-1/16 | 7/8 | 7/16 | 7/16 | 7/16 | 1/8 | 1/16 | 5/16 | 0.172 | 3/8 | 8 | 6 | 295 | 690 |
R103G | 10-32 | 26.98 | 22.2 | 11.1 | 11.1 | 11.1 | 3.175 | 1.6 | 7.94 | 4.37 | 9.52 | 8 | 6 | 295 | 690 |
R107G | 1/4-28 | 1-7/32 | 31/32 | 1/2 | 15/32 | 9/16 | 1/8 | 3/32 | 3/8 | 0.193 | 7/16 | 8 | 6 | 882 | 1005 |
R107G | 1/4-28 | 30.95 | 24.6 | 12.7 | 11.9 | 14.28 | 3.175 | 2.38 | 9.5 | 4.9 | 11.1 | 8 | 6 | 882 | 1005 |
R108G | 5/16-24 | 1-13/32 | 1-1/8 | 9/16 | 17/32 | 11/16 | 5/32 | 3/32 | 7/16 | 0.232 | 1/2 | 10 | 7 | 1587 | 1282 |
R108G | 5/16-24 | 35.71 | 28.58 | 14.28 | 13.5 | 17.46 | 4 | 2.38 | 11.1 | 5.8 | 12.7 | 10 | 7 | 1587 | 1282 |
R109G | 3/8-24 | 1/11/16 | 1-3/8 | 3/4 | 11/16 | 7/8 | 3/16 | 3/32 | 1/2 | 0.287 | 5/8 | 13 | 8 | 2437 | 1900 |
R109G | 3/8-24 | 42.86 | 34.9 | 19.05 | 17.46 | 22.2 | 4.76 | 2.38 | 12.7 | 7.29 | 15.88 | 13 | 8 | 2437 | 1900 |
I3-316 | 3/8-24 | 1/11/16 | 1-3/8 | 3/4 | 11/16 | 5/8 | 3/16 | 3/32 | 1/2 | 0.287 | 5/8 | 13 | 8 | 2437 | 1900 |
I3-316 | 3/8-24 | 42.86 | 34.9 | 19.05 | 17.46 | 15.88 | 4.76 | 2.38 | 12.7 | 7.29 | 15.88 | 13 | 8 | 2437 | 1900 |
R110G | 7/16-20 | 2-3/8 | 1-15/16 | 1-1/8 | 7/8 | 1-1/8 | 1/4 | 1/8 | 5/8 | 0.412 | 3/4 | 16 | 10 | 3390 | 2700 |
R110G | 7/16-20 | 60.32 | 49.2 | 28.58 | 22.22 | 28.58 | 6.35 | 3.17 | 15.88 | 10.46 | 19.05 | 16 | 10 | 3390 | 2700 |
R111G | 1/2-20 | 2-3/8 | 1-15/16 | 1-1/8 | 7/8 | 1-1/8 | 1/4 | 1/8 | 5/8 | 0.412 | 3/4 | 16 | 10 | 3390 | 2700 |
R111G | 1/2-20 | 60.32 | 49.2 | 28.58 | 22.22 | 28.58 | 6.35 | 3.17 | 15.88 | 10.46 | 19.05 | 16 | 10 | 3390 | 2700 |
Ball stud: Low carbon steel heat treated, Zinc plated yellow dichromate treated.
Body: Low carbon steel, Zinc plated yellow dichromate treated.
NOTE:
This series is also available in male to male and female to female configuration.
Consult factory.
