P18-Q airport, metro, bus, subway ticket terminal validator, it also supports wireless, contactless or cashless payments, rfid nfc.
P18-Q airport, metro, bus, subway ticket terminal validator, it also supports wireless, contactless or cashless payments, rfid nfc.
13.56MHz Bus Card Validator With RFID Reader/GPS/GPRS/ for Bus Payment P18-Q
P18-Q bus validator enables rapid fare collection through smart card, nfc processing and qr code ticketing. Its system integration capabilities allow connection to devices, such as GPS tracker and mobile payment, to obtain the vehicle location and route data for fare collection.
Features:
Application scenario: Bus, subway, expressway, station, retail store, payment, canteen, campus
|
Physical Specifications |
|
|
Case Color |
Black |
|
Processor |
KunT11,4Cores Cortex-A53,2.0Ghz |
|
Operating System |
Android 9.0 |
|
Memory |
LPDDR4 2GB eMMC 16 GB TF 1* |
|
Power |
|
|
Supply Voltage |
9-48 V DC |
|
Supply Current |
Max. 2A |
|
Over Voltage Protection |
Supported |
|
Over Current Protection |
Supported |
|
Connectivity |
|
|
RS232 |
2 RS232 interface |
|
Ethernet |
Built-in 10/100-base-T with RJ45 connector |
|
USB |
2 USB 2.0 Host Full Speed |
|
USB TypeC |
OTG interface |
|
WiFi |
IEEE 802.11 b/g/n/ac |
|
GPS |
Supported |
|
Bluetooth (Optional) |
BT4.0 + BR/EDR + BLE |
|

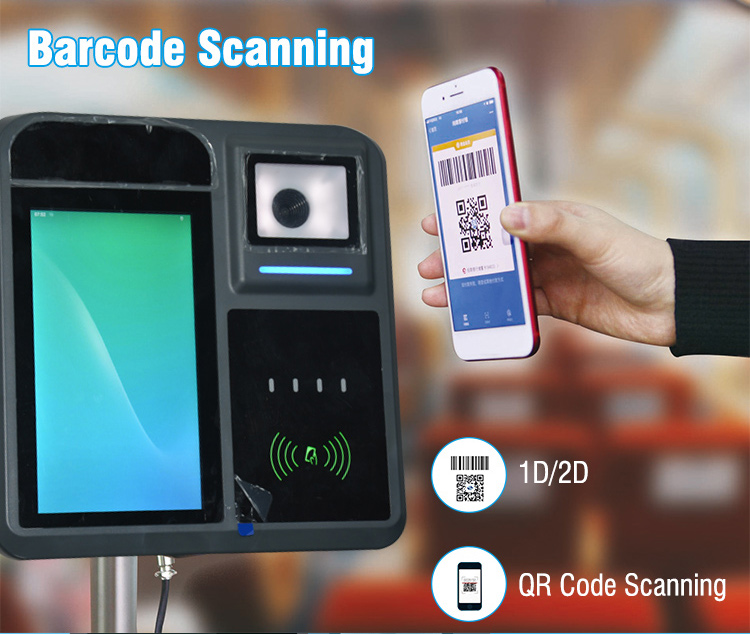

Barcode Scanner |
1D Barcode Scanning |
|
2D Barcode Scanning |
|
|
QR Code Scanning |
|
|
Contactless Smart Card Interface |
|
|
Standard |
ISO-14443 A & B part 1-4 |
|
Protocol |
Mifare® Classic Protocols, T=CL |
|
Operating Distance |
Up to 50 mm |
|
Operating Frequency |
13.56 MHz |
|
SAM Card Interface |
|
|
Number of Slots |
4 ID-000 slots |
|
Card Connector Type |
Contact |
|
SIM |
1* |
|
Standard |
ISO/IEC 7816 Class A, B (5V, 3V, 1.8V) |
|
Protocol |
T=0 or T=1 |
|
Firmware Upgradeable through |
OTA |
|
Built-in Peripherals |
|
|
LCD Display |
600×1024 TFT LCD display with backlight, 6.95 inch (optional touchscreen) |
|
Speaker |
Supported |
|
Buzzer |
Supported |
|
LED Status Indicators |
4 LEDs for indicating status (from left most: blue, yellow, green, red) |
|
Other Features |
Real Time Clock |
|
Work Conditions |
Temperature: -40°C~80°C Humidity: 5% to 93%, non-condensing |
|
Certifications/Compliance |
QPBOC L1, qPBOC L2, CE/FCC, RoHS, CCC, Contactless EMV L1/L2, IP54, Visa-VCTKS, Mastercard-Paypass |
