Operating system

Android 5.1/7.1

CPU model

Qualcomm Quad-Core ARM Cortex-A7 Processor

CPU Clock Range

1.1GHz

RAM

RAM:1GB  EMMC:8GB

LCD Screen

5.0 inch Display Resolution: 480*854

Fingerprint collection

module(optional)

Spatial resolution :508 DPI

Active sensor area :12.8mm*18.0mm

(In compliance with FBI)

Communication

4G/3G/2G/Hot spot/Bluetooth

GPS

Built-in GPS

USB

USB 2.0 HS,TYPE-C,Mini USB serial port

Camera

Rear camera:5 Mega-pixel | Front camera:0.3 Mega-pixel

Support 1D / 2D scanning

Card Slot

SIM ×1; SAM×2; microSD×1

Touch Screen

Capacitive touch screen, support the electronic signature

Printer

Built-in high speed thermal printer,58mm print paper

Magnetic card

Support 1/2/3 track, Bi-directional swiping

Contact IC card

Support type A(5.0V),type B(3.0V) or type C(1.8V)

(In compliance with EMV and PBOC)

NFC card

Support ISO/IEC14443 Type A&B, Mifare1

(In compliance with EMV and PBOC,with card reading indicator)

GPS

Built-in GPS

Multimedia

Support for recording, voice broadcast

Support video play back/recording

Password keyboard

Built-in password keyboard (virtual);

Support DES, 3 DES, RSA, SHA - 256 and AES;algorithm

Battery

Lithium battery, 2800mAh, 7.4V

Power adapter

Input:110V to 240V AC/50 ~ 60Hz

Output: 5 v DC / 2 A General Type-C interface

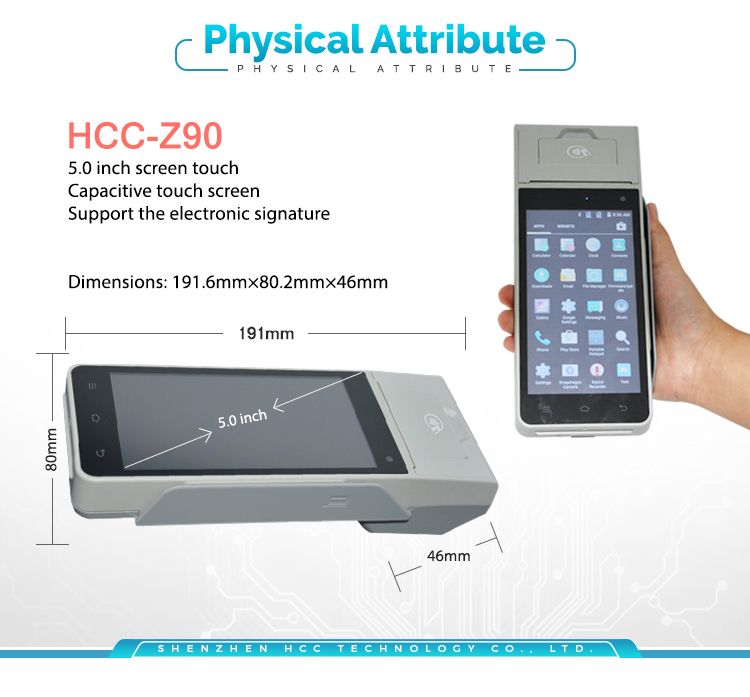

Dimension and weight

191.6mm×80.2mm×46mm,424g

Standard Accessories

1pc power adaptor,

1pc User Manual,

1pc Warranty card,

1pc USB cable,

Roll 58mm thermal paper,

1pc desk top charger(optional)

1pc silicone protecting case(optional)

Certificate

Unionpay Terminal Safety Certification

Unionpay POS Terminal Safety Assessment

EMV Contact Terminal L1&L2

EMV Contactless Terminal L1

PCI 5.x, PBOC3.0 L1&L2

QUICS, FCC,CE, 3C,

FBI(Fingerprint module)
