Android Smart POS Terminal, support MSR, smart card and NFC card, with 5MP camera, 4G, 3 G and 2 G network, and Wifi+Bluetooth, with 58mm printer O/S is Android 7.0
Android Smart POS Terminal, support MSR, smart card and NFC card, with 5MP camera, 4G, 3 G and 2 G network, and Wifi+Bluetooth, with 58mm printer O/S is Android 7.0
Android Restaurant Ordering Payment Touch Mobile Paytm Card Machine with 58mm Printer

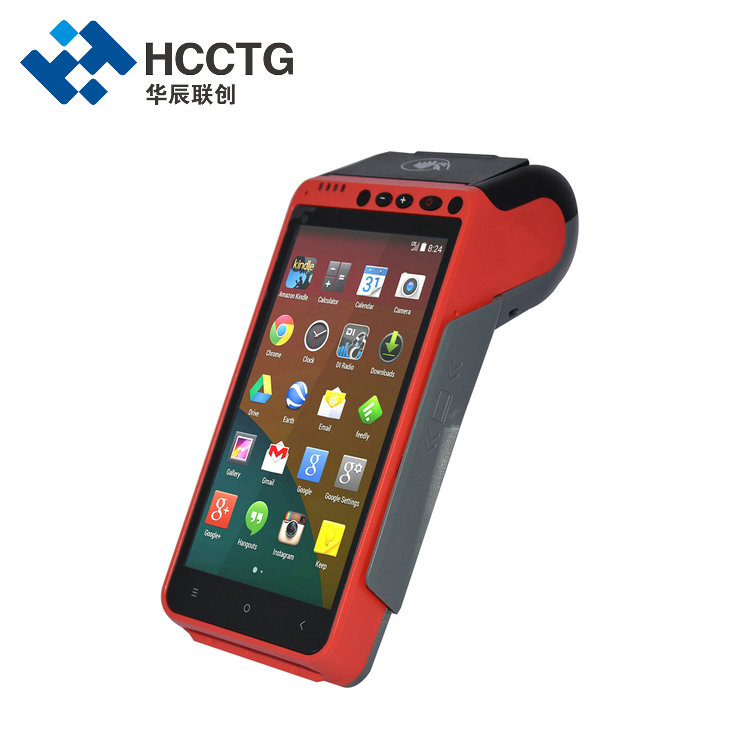

The HCC-Z100 is the cutting-edge secure electronic payment terminal powered by safe-Android 7.0 or 5.1 operation system. It comes with a 5.5 inch high definition colorful display, industrial level thermal printer and flexible configuration for various barcode scanner scenarios. A wide range of advanced connectivity options are supported for global 2G/3G/4G network, as well as inbuilt NFC contactless, BT4.0 and WIFI.
Empowered by Quad-core CPU and massive memory, HCC-Z100enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.
Safe droid OS, Android 7.0 (5.1 at optional)

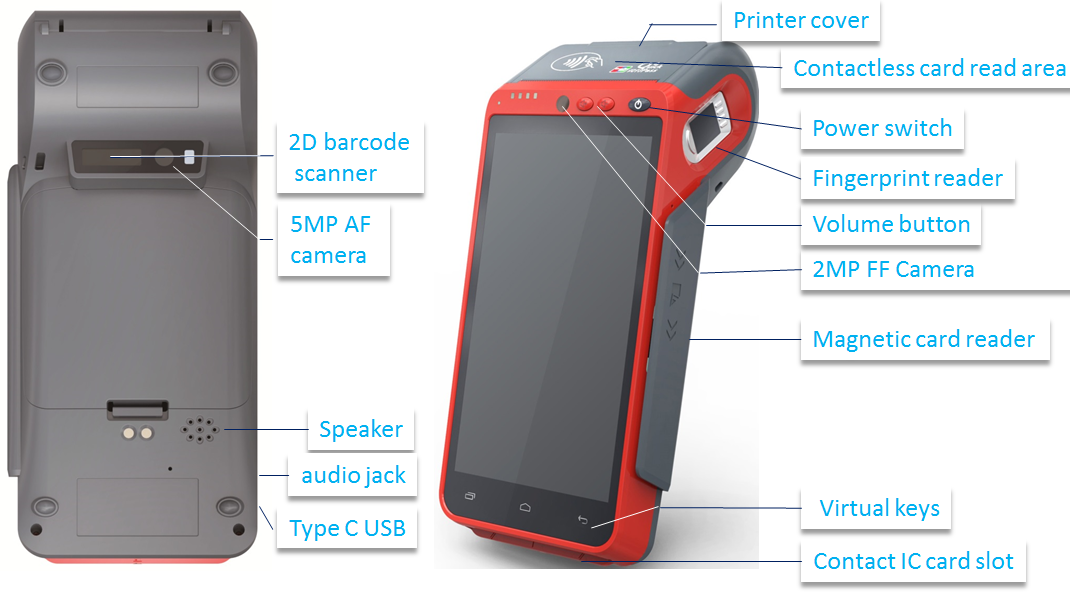

Dual camera for quickly QR code scan & Symbol 2D scanner as option
Specifications
|
Basic Characteristics |
OS |
Safedroid OS (based on Android 7.0) |
|
CPU |
Quad-Core 1.35GHZ |
|
|
ROM |
8GB ROM EMMC |
|
|
RAM |
1G RAM LPDDR3 |
|
|
Display |
5.5 inch TFT IPS LCD resolution 1280*720 |
|
|
Panel |
Ultra-sensitive capacitive touch screen, can work with gloves and wet fingers |
|
|
Dimensions |
206mm*84mm*32mm (max 56mm) |
|
|
Weight |
530g(Battery included) |
|
|
Keys |
3 Physical keys:1 ON/OFF KEY,2 Shortcut keys 3 Virtual keys: Menu, Home, Back |
|
|
Input |
Chinese/English ,and supports handwriting and soft keyboard |
|
|
Radio Communication |
WIFI |
IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ |
|
Bluetooth |
BT 4.0 LE +EDR |
|
|
4G |
TD-LTE:Band38, Band39, Band40, Band41 FDD-LTE:Band1,Band3,Band7,Band8,Band20 |
|
|
3G |
UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5 TD-SCDMA:Band34,Band39 |
|
|
2G |
GSM/GPRS/EDGE:850/900/1800/1900MHZ |
|
|
Payment |
Magnetic Card reader |
Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional |
|
Smart Card reader |
Supports ISO7816 standard |
|
|
Contactless Card reader |
Supports 14443A / 14443B |
|
|
Expansion and peripherals |
Printer |
High-Speed Thermal Printer 58mm printing paper 40mm paper roll; |
|
Camera |
5MP camera with LED flash and auto-focus function |
|
|
Satellite Positioning |
GPS, Supports A-GPS |
|
|
Audio |
Speaker,Microphone, Earphone |
|
|
Interfaces |
Micro SD Card Slot |
1 PCS |
|
SIM Card Slot |
2 PCS MICRO SIM |
|
|
PSAM Card Slot |
2 PCS Conforms to ISO7816 standard |
|
|
USB Port |
1PCS USB TYPE C |
|
|
Power |
Battery |
Li-ion battery, 2600mAh 7.4V |
|
Charging Port |
USB Type C,5V 2A |
|
|
Environment |
Operating Temperature |
-10°C to 50°C |
|
Storage Temperature |
-20°C to 70°C |
|
|
Humidity |
5% to 95% Relative Humidity, Non-Condensing |
|
|
Certification |
Electromagnetic |
CE,RoHS,FCC |
|
Payment |
PCI PTS 5.X,EMV L1&L2,Paypass, Paywave |
|
|
Anti-tamper |
Without Anti-tamper function |
|
|
Optional |
Fingerprint |
Semiconductor capacitance 18mm x 12.8mm imaging area
256 x 360 pixel array 508dpi |
|
Front camera |
2 Megapixel Fixed Focal Camera |
|
|
Barcode Scanner |
Honeywell 2D Image Engine, Support 1D and 2D symbologies |
|
|
Positioning |
GLONASS, Bei-Dou satellite navigation system |
|
|
Fiscal Module |
Russian format |
|
