Android 9 Wireless Data Terminal Handheld PDA with Printer Barcode Scanner

Android 9 system Sticker one-piece printing 5.5-inch HD Durable large Display
Product Details

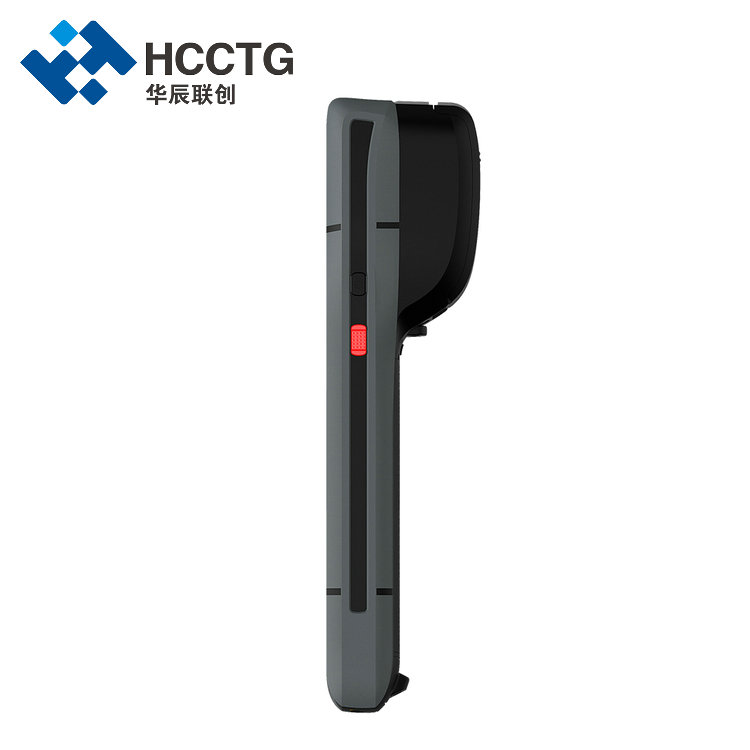

Android 9 Handheld Terminal offline machine for money transfer HCC-S60

HCC-S60 is a smart payment terminal machine, perform well just like receipt printer, scanner and camera. It has good performance, small size, wireless design, easy to carry, and very convenient to use. Besides, this PDA product comes with Android 9, which runs smoothly and stably. Very suitable for warehouse management and small businesses.






Specifications

Performance

CPU

Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor

RAM+ROM

2GB+16GB Supports up to 3GB+32GB

Expand memory

Micro SD(TF) Supports up to 128GB

System

Android 9

Data communication

WLAN

Dual-band 2.4GHz / 5GHz,

Supporting IEEE 802 a/b/g/n/ac protocol

WWAN

2G:GSM (850/900/1800/1900mhz)

3G:WCDMA (850/900/1900/2100mhz)

4G:FDD:B1/B3/B4/B7/B8/B12/B20

    TDD:B38/B39/B40/B41

Bluetooth

Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS

Transmission distance 5-10 meters

GNSS

Support Gps, Galileo, Glonass, Beidou

Data collection

Barcodescanning(Optional)

2D

Imagerscanner

Newland EM3090

Honeywell N3603

Honeywell N6603

2D

Symbologies

PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,

QR Code,Micro QR Code,Maxicode,Hanxin Code,etc.

Thermal sticker printer

Printing speed

70mm/s

Print points

384 dots

Paper width

58mm

Paper diameter

35mm

Paper type

Support for Sticker / label Black mark printing

Camera

Rear camera

13MP HD camera,Support auto focus,

Flash, Anti-shake, Macro shooting

Front camera

2MP color camera

NFC (optional)

Frequency

13.56MHz

Protocol

Support ISO14443A/B, 15693 agreement

Distance

2cm-5cm

Language/input method

Input

English,Pinyin,Five strokes,Handwriting input,Support soft keypad

Language

Language packs in Simplified Chinese,

Traditional Chinese, English, Korean, Japanese, Malaysian,etc.

Physical parameter

Dimensions

177mm×72mm×(23.7-48.8)mm

Weight

<500g

(Depends on device function configuration)

Display

5.5 inch IPS color display with resolution 720*1440

TP

Corning gorilla glass, Supports multi-touch

Supported gloves and wet hands

Battery capacity

Rechargeable polymer battery (3.8V5200mAh) removable

Standby time >350 hours

Working time > 12 hours

Charging time 3-4H, Using standard power

adapter and data cable

Expansion

Card slot

PSAM x 2,Nano SIM card x 1 , TF card × 1

Communication interface

Type-C USB x 1, OTG

Audio

Speaker (mono), Microphone, Earpiece

Keypad

Silicone button: Power button, Volume +/- button,

Scan button × 2

Sensors

Gravity sensor, Light sensor, Proximity sensor,

Vibration motor

User environment

Operating temperature

-20℃ - 55℃

Storage temperature

-40℃ - 70℃

Environment humidity

5%RH--95%RH(no condensation)

Drop specification

6 sides Supports 1.2 meters drops and 30 times

to the concrete within the operating temperature

Rolling test

500×0.5m rolling for 6 sides

Sealing

IP54

Accessories

Standard

Adapter, Data cable, Protective film,

Instruction manual
