All In One Restaurant Ordering Machine Free SDK Crypto Payment Terminal Z100

HCC-Z100 Handheld EPOS Terminal Simple design easy to handle left or right hand, with good ergonomic experience and for your information, we only sell hardware.


.

Product Details

CE ROHS Crypto Payment Android POS Terminal with 58mm Printer POS Hardware Only

HCC-Z100 is robust and durable and it is a performance monster with 3G/4G, WIFI, 2 or 4 SIM, NFC, 40mm printer, etc. Smart POS Z100 is highly scalable and can be used in retail, dining, and QR code payments

Features

  • Safe droid OS, Android 7.0 (5.1 at optional)
  • 5 inch TFT IPS LCD, resolution 1280*720;
  • Built-in high speed 58mmthermal printer , with over 50Km print life
  • Full bands for global coverage: 4G/3G/2G,WLAN,VPN
  • Authentec,508dpi fingerprint module for biometric identification
  • Dual camera for quickly QR code scan & Symbol 2D scanner as option








Specifications

Basic

Characteristics

OS

Safedroid OS (based on Android 7.0)

CPU

Quad-Core 1.35GHZ

ROM

8GB ROM EMMC

RAM

1G RAM LPDDR3

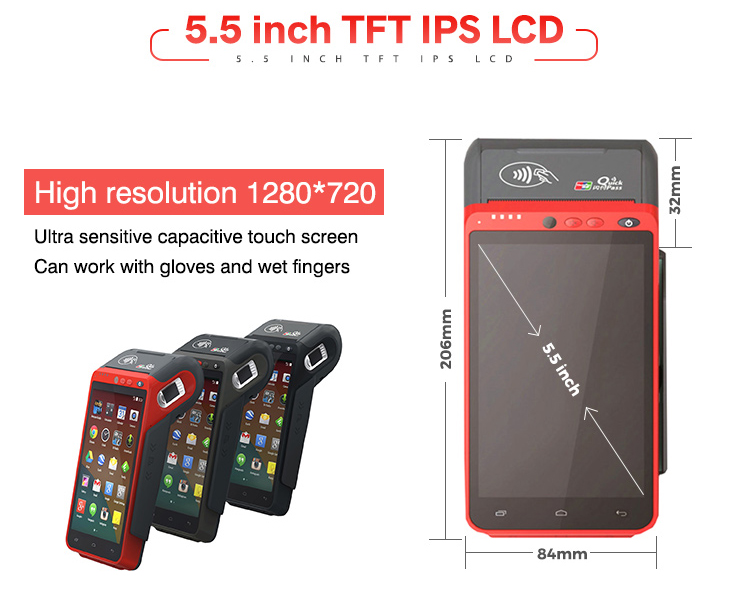

Display

5.5 inch TFT IPS LCD resolution 1280*720

Panel

Ultra-sensitive capacitive touch screen, can work with gloves and wet fingers

Dimensions

206mm*84mm*32mm (max 56mm)

Weight

530g(Battery included)

Keys

3 Physical keys:1 ON/OFF KEY,2 Shortcut keys

3 Virtual keys: Menu, Home, Back

Input

Chinese/English ,and supports handwriting and soft keyboard

Radio Communication

WIFI

IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ

Bluetooth

BT 4.0 LE +EDR

4G

TD-LTE:Band38, Band39, Band40, Band41

FDD-LTE:Band1,Band3,Band7,Band8,Band20

3G

UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5

TD-SCDMA:Band34,Band39

2G

GSM/GPRS/EDGE:850/900/1800/1900MHZ

Payment

Magnetic Card reader

Supports ISO7811/7812/7813, and supports triple

track (tracks 1/2/3), bi-directional

Smart Card reader

Supports ISO7816 standard

Contactless Card reader

Supports 14443A / 14443B

Expansion and peripherals

Printer

High-Speed Thermal Printer

58mm printing paper

40mm paper roll;

Camera

5MP camera with LED flash and auto-focus function

Satellite Positioning

GPS, Supports A-GPS

Audio

Speaker,Microphone, Earphone

Interfaces

Micro SD Card Slot

1 PCS

SIM Card Slot

2 PCS MICRO SIM

PSAM Card Slot

2 PCS Conforms to ISO7816 standard

USB Port

1PCS USB TYPE C

Power

Battery

Li-ion battery, 2600mAh 7.4V

Charging Port

USB Type C,5V 2A

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Humidity

5% to 95% Relative Humidity, Non-Condensing

Certification

Electromagnetic

CE,RoHS,FCC

Payment

PCI PTS 5.X,EMV L1&L2,Paypass, Paywave

Anti-tamper

Without Anti-tamper function

Optional

Fingerprint

Semiconductor capacitance

18mm x 12.8mm imaging area

256 x 360 pixel array
Crossmatch FBI certified

508dpi

Front camera

2 Megapixel Fixed Focal Camera

Barcode Scanner

Honeywell 2D Image Engine, Support 1D and 2D symbologies

Positioning

GLONASS, Bei-Dou satellite navigation system

Fiscal Module

Russian format
