The Z500 is powered by safe-Android 11.0 operation system, quad-core CPU and massive memory, one-stop payment of MSR/ICCR/NFC, it is your smart choice for one-stop payment and service.

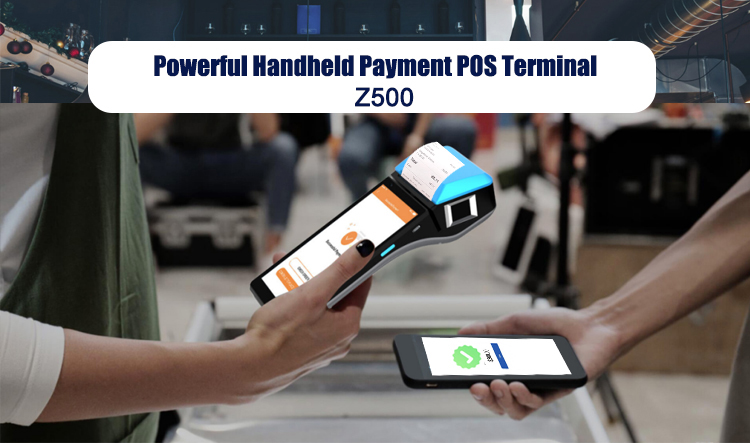

NFC 4G Bluetooth Handheld Android POS Machine With 2D Barcode Scanner Z500
Z500 comes with a 6.0 inch TFT IPS LCD display capacitive touch screen, industrial level thermal printer and flexible configuration for various scenarios. Besides, it also enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module.
Features
Specifications
|
Basic Characteristics |
OS |
Safedroid OS (based on Android 11.0) GMS certified |
|
CPU |
1.8GHz Quad-Core ARM Cortex-A53 |
|
|
ROM |
16GB ROM EMMC |
|
|
RAM |
2GB RAM LPDDR |
|
|
Display |
6.0 inch TFT IPS LCD, resolution 1440*720 |
|
|
Panel |
Ultra sensitive capacitive touch screen, can work with gloves and wet fingers |
|
|
Dimensions |
224mm X 84mm X 18mm (max 51mm) |
|
|
Weight |
410g (Battery included) |
|
|
Keys |
Physical keys: Power on/off, Volume + /-, Scan |
|
|
Input |
Chinese/English, and supports handwriting and soft keyboard |
|
|
Radio Communication |
WIFI |
IEEE 802.11 a/b/g/n/ac, support 2.4GHz and 5GHz |
|
Bluetooth |
BT 5.0 and earlier |
|
|
4G |
European version(Default): FDD-LTE: B1/B3/B7/B8/B20/B28 TDD-LTE: B38/B40/B41 |
|
|
3G |
European version(Default): WCDMA: B1/B8 |
|
|
2G |
European version(Default): GSM/GPRS/EDGE: 900/1800MHz |
|
|
Payment |
Magcard reader |
Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional |
|
Smart Card reader |
Supports ISO7816 standard |
|
|
Contactless Card reader |
Supports 14443A/ 14443B |
|
|
Expansion and peripherals |
Printer |

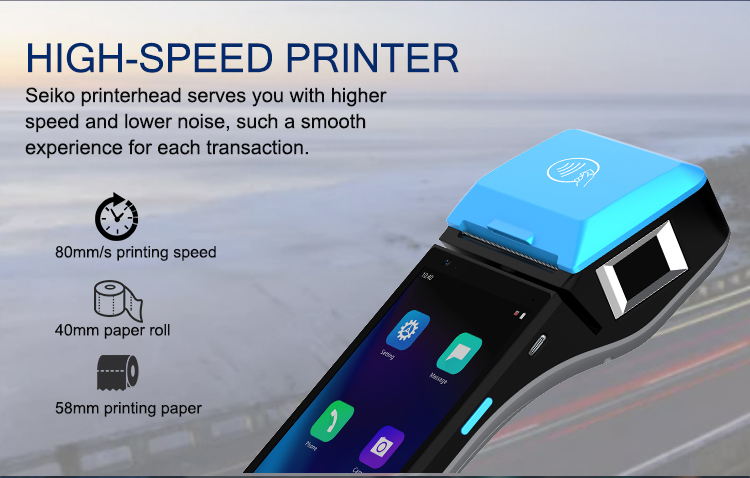

High-Speed Thermal Printer; 58mm printing paper ; 40mm paper roll |
|
Rear Camera |
5MP camera with LED flash and auto-focus function |
|
|
Satellite Positioning |
Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo |
|
|
LEDS |
3 colors are used to indicate |
|
|
Audio |
Speaker, Microphone, Buzzer |
|
|
Interfaces |
Micro SD Card Slot |
1 Pcs |
|
SIM Card Slot |
1 Pcs Micro SIM |
|
|
PSAM Card Slot |
2 Pcs Conforms to ISO7816 standard |
|
|
USB Port |
1 Pcs Type C USB |
|
|
Power |
Battery |
Li-ion battery, 7.6V/2600mAh |
|
Charging Port |
Type C USB Port, 5V DC/2A |
|
|
Environment |
Operating Temperature |
-10°C to 50°C |
|
Storage Temperature |
-20°C to 70°C |
|
|
Humidity |
5% to 95% Relative Humidity, Non-Condensing |
|
|
Certification |
Electromagnetic |
CE, RoHS, FCC |
