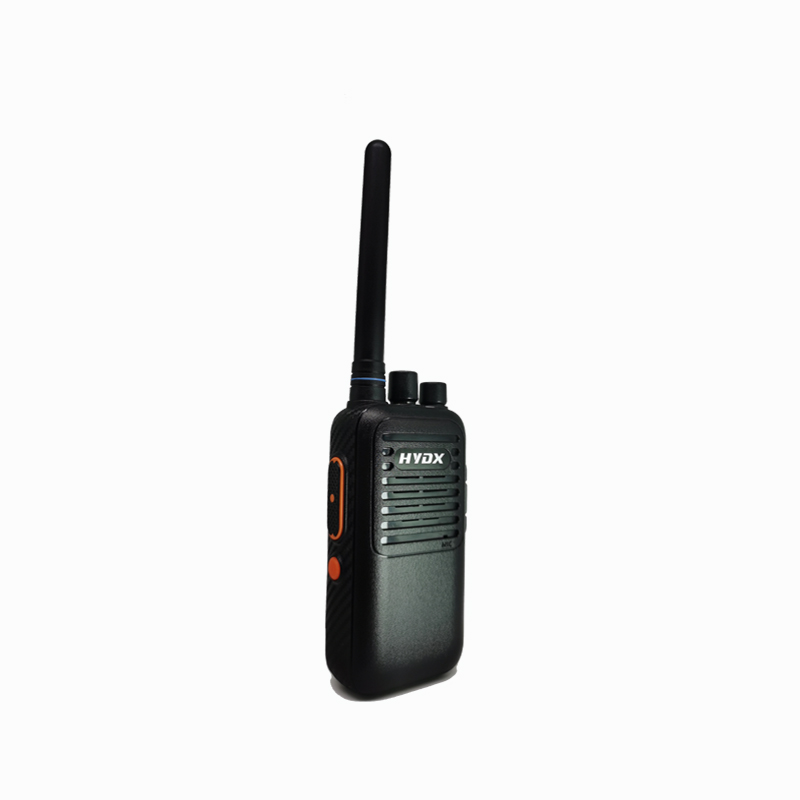

5W UHF Rugged Commercial Two Way Radio
Product Description：
·Portable and Simple Walkie Talkie; work out of the box; simple enough that adults use them comfortably.
·Durable 2 Way Radio; rugged enclosure; one meter free fall; the walkie-talkie has no damage and can continue to work normally; longer service life.
·Wide Range and Strong Penetrating Power; HYDX H5 walkie talkies can work in buildings and between concrete walls; provide you with good range and clear communication.
·Long Battery Life; with 1500 mAh large capacity Li-ion battery; usually takes 4-5 hours to fully charge; provides up to 24 hours of battery life; allows you to stay in communication through out the day.
Main Functions
1.400-470MHz/136-174MHz
2.Chinese/English voice report
3.High/Low Power Switchable
4.Compandor
5.Scrambler
6.16 Channels
7.VOX
8.CTCSS/DCS
9.Power Output 5W
10.Scanning
12.Wide/Narrow Bandwidth
13.Battery Save
Technical Specification
|
GENERAL |
|
| Frequency Range |
UHF:400-470MHz VHF:136-174MHz |
| RF Output Power | H:≤5W L:≤1W |
| Channels | 16 |
| Channel Spacing | Wide:25KHz Narrow:12.5KHz |
| CTCSS/DCS | 50 CTCSS / 105 DCS |
| Antenna Impedence | 50Ω |
| Operating Temperature | -30℃+60℃ |
| Operating Voltage | DC 7.4V |
| Battery Type | 1500mAh |
| Dimension(Excluding antenna) | 108(H)×58(W)×30(D)mm |
| Weight(Battery,Antenna Including) | About 230g |
|
TRANSMITTER |
|
| Output Power |
H:≤5W L:≤1W |
| Modulation Mode | F3E |
| Modulation Distortion | ≤ 5% |
| Spurious and Harmonics |
-65 dB |
| FM Noise | ≤ -45 dB |
| RECEIVER | |
| Reference Sensitivity | ≤ -123 dBm |
| Adjacent Channel Selectivity | ≤ -65 dB |
| Inter-modulation response immunity | ≤ -55 dB |
| S/N |
≥ 45 dB |
| Rated Output Power | ≤750mW |
| Rated Audio Distortion | ≤5% |
Packing&Delivery
Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.
* 1 x HYDX H5
* 1 x Antenna
* 1 x Battery
* 1 x Charger
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
