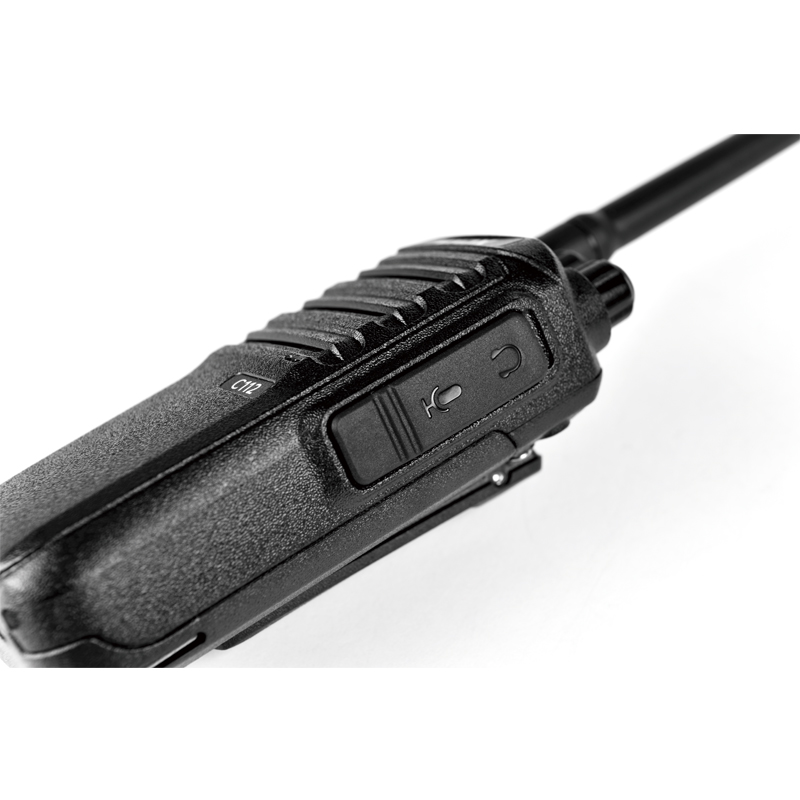

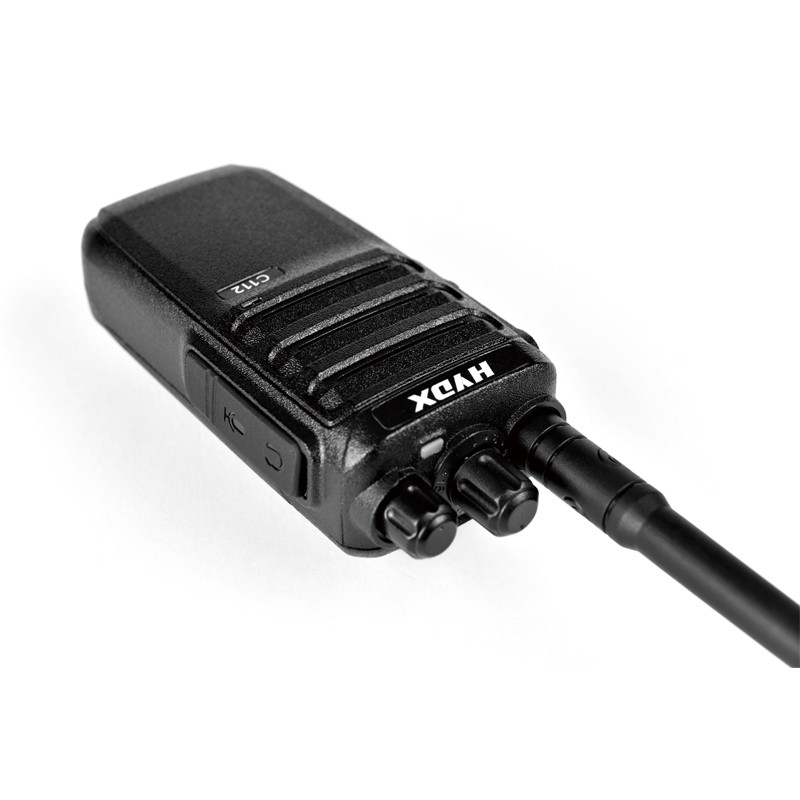

VHF UHF 2W Handheld Rugged 2 Way Radio
Product Description:
·Diversified functions,16 preset channels can be selected by rotating the knob on the 2 Way Radios to select any channel within the frequency range; you can program 50 CTCSS audio and 105 DCS audio on each programmed channel, The Two-Way Radios has the functions of VOX voice control, scanning, power save,etc
·Long-Range communication,walkie talkies long range can reach 2 miles in open areas such as rural areas, suburbs or seaside, etc. where there is no shelter. If in cities or towns, walkie talkies can reach 0.6-1.2 miles in most cases. The actual distance Depends on the obstruction of the current environment.
·Durable battery,The transmitting power is 2 watts. Under normal circumstances,walkie talkie can be used for 8-72 hours with a full charge, and up to 8-12 hours with continuous use. The actual time depends on the frequency of use;2-3 hours to fully charge a battery with 1200 capacity,long battery life.
·Suitable for multiple scenes.Hard and durable shell, drop-proof, this Handheld two way radio transmitters are suitable for hotel management, villas, restaurant kitchens,outings,Outdoor mountain climbing, construction sites, factory warehouses, car driving, cruise ships, school,churches, retail stores and supermarkets, security personnel, construction personnel, safety maintenance personnel.
Main Functions
1.400-470MHz/136-174MHz
2.Scrambler
3.Reverse Frequency/Offset
4.Compandor
5.SQL
6.Scan
7.DTMF/PTT ID
8.TOT
9.Tail Elimination
10.CTCSS/DCS
11.BCLO
12.Voice Report
13Programming Encryption
Technical Specification
GENERAL |
|
Frequency Range |
UHF:400-470MHz VHF:136-174MHz |
RF Output Power | 2W |
Channels | 16 |
Channel Spacing | Wide:25KHz Narrow:12.5KHz |
CTCSS/DCS | 50 CTCSS / 105 DCS |
Antenna Impedence | 50Ω |
Operating Temperature | -20℃+50℃ |
Operating Voltage | DC 3.7V |
Battery Type | 1200mAh |
Dimension(Excluding antenna) | 130(H)×61(W)×36(D)mm |
Weight(Battery,Antenna Including) | About 230g |
TRANSMITTER |
|
Output Power |
2W |
Modulation | F3E |
Spurious and Harmonics | -65 dB |
FM Noise | ≤-45 dB |
Audio Distortion |
≤5% |
RECEIVER | |
Reference Sensitivity | ≤ -123 dBm @25K |
Selectivity | ≤-65 dB |
Audio Distortion | ≤5% |
Intermodulation |
≤-55 dB |
S/N | ≥45 dB |
Rater Output Power | 750mW |
Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.
* 1 x HYDX C112
* 1 x Antenna
* 1 x Battery
* 1 x Charger
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
