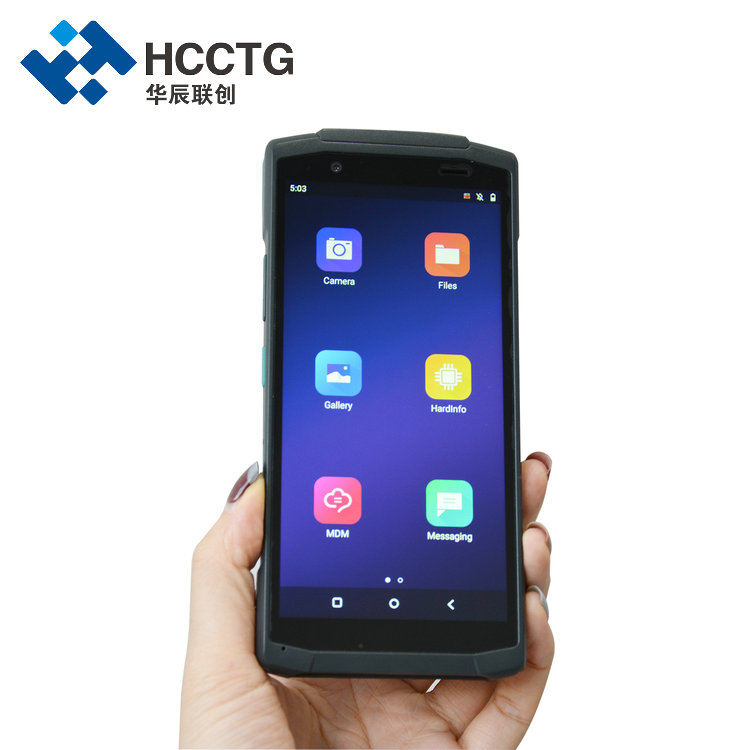

5.7 Inch Android 10.0 4G NFC POS Terminal HCC-CS20

HCC-CS20 is a newly handheld android pos terminal with 5.7 inch touch screen, full bands for global coverage: 4G/3G/2G, WLAN, Bluetooth and VPN.

Request A Quote

Product Details

Handheld Android 10.0 Rugged POS Terminal With Barcode Scanner HCC-CS20

CS20 is not only all about processing card payments but also recording transactions and printing receipts. Besides, handheld POS CS20 can also be used for maps, cameras, scanners, camera, mobile devices.

Features

Safedroid OS (based on Android 10.0)
Massive memory: 2G RAM + 16G ROM
5.7 inch TFT IPS LCD, resolution 1440*720;
Full bands for global coverage: 4G/3G/2G, WLAN, Bluetooth, VPN;
Dual camera for quickly QR code scan & Symbol 2D scanner as option;
The grand 4.35V/3500mAH battery + extraordinary power management design ensures a full day duration;
One-stop payment of MSR/IC/NFC,with PCI PTS 5.X, EMV L1&L2,Paypass,Paywave,Amex,TQM certified.
NFC for full scenarios such as transportation, logistic, and ID control.

Specification

Basic Characteristics	OS	Safedroid OS (based on Android 10.0)
	CPU	Qualcomm Octa-Core ARM Cortex-A53 1.8GHz
	ROM	16GB ROM EMMC
	RAM	2G RAM LPDDR3
	Display	5.7 inch TFT IPS LCD, resolution 720*1440
	Panel	Ultra sensitive capacitive touch screen, can work with gloves and wet fingers
	Dimensions	163mmX77mmX17.5mm (max 21.8mm)
	Weight	300g(Battery included)
	Keys	Physical keys: power on/off, Volume + /-, Scan1/ Scan2
	Input	Chinese/English, and supports handwriting and soft keyboard
Radio Communication	WIFI	IEEE 802.11 b/a/g/n,support dual Band 2.4GHZ and 5GHZ
	Bluetooth	BT 4.2 LE and earlier
	4G	European version(Default): FDD-LTE: B1/B3/B5/B7/B8/B20 TDD-LTE: B38/B39/B40/B41 American version(Optional): FDD-LTE: B2/B4/B5/B12/B13/B17/B25/B26 TDD-LTE: B41
	3G	European version(Default): WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39, CDMA 1x/EVDO: BC0 American version(Optional): WCDMA: B2/B4/B5, CDMA 1X/EVDO: BC1
	2G	GSM/GPRS/EDGE: 850/900/1800/1900MHZ
Payment	Magcard reader	Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional
	Smart Card reader	Supports ISO7816 standard
	Contactless Card reader	Supports 14443A / 14443B
	Camera	5MP camera with LED flash and auto-focus function
	Satellite Positioning	Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo
	NFC	13.56MHZ
	Audio	Speaker, Microphone,
Interfaces	Micro SD Card Slot	1 PCS support up to 128GB
	SIM Card Slot	1 PCS MICRO SIM
	PSAM Card Slot	2 PCS Conforms to ISO7816 standard
	USB Port	1PCS TYPE C USB
Power	Battery	Li-ion battery, 4.35V/3500mAH
Power	Charging Port	Type C USB Port, 5V DC/2A
Environment	Operating Temperature	-10°C to 50°C
	Storage Temperature	-20°C to 70°C
	Humidity	5% to 95% Relative Humidity, Non-Condensing
Certification	Electromagnetic	CE, Rohs, FCC, BIS, TQM
Certification	Payment	PCI PTS 5.X, EMV L1&L2, Paypass, Paywave
Optional	ESIM Card	Support
	Front camera	2 Megapixel Fixed Focal Camera
	Barcode Scanner	Symbol 4710 2D Image Engine, Support 1D and 2D symbologies
