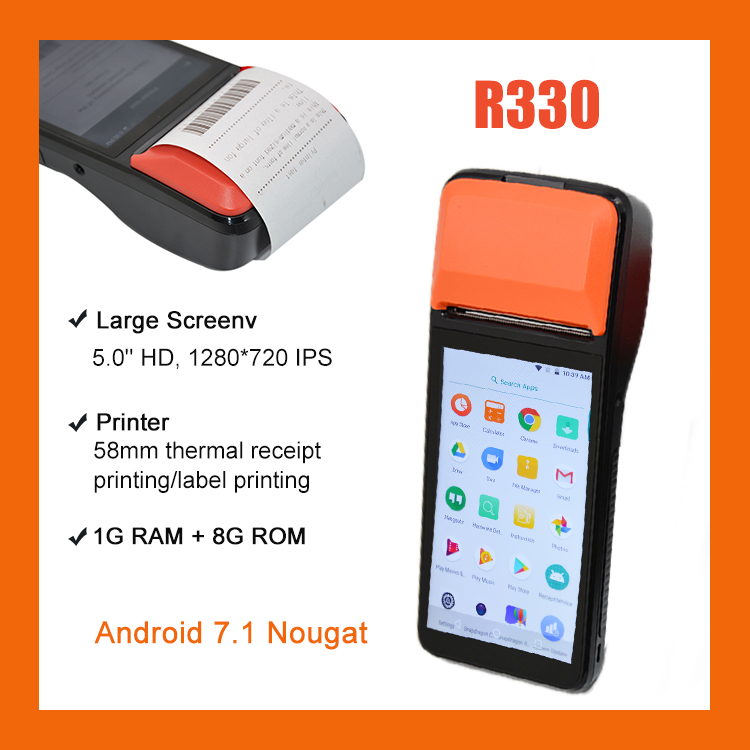

4G Bluetooth Android POS With 58MM Thermal Printer R330

R330 is intelligent payment terminal device, performs well as receipt printer and camera, compact size and wireless design, easy to carry around and convenient to use.


Product Details

5 Inch Bluetooth Android 7.1 Smart POS Terminal With Printer R330

R330 is User-friendly, smart POS terminal is very efficient in processing sales and suits for warehouse management and small business like cafeteria, boutique, bookstore, etc


Features:

  • Tablet configuration:  1.3GHz Quad-core CPU which supports the simultaneous operation of multiple utility easily. Android 7.1 Nougat OS with high compatibility and stability.
  • Screen:  5”HD+, 1280*720 IPS, capacitive multi-touch panel.
  • Built-in Printer:  58mm direct thermal printing, support roll diameter 40mm.
  • Built-in MSR(Optional):  Magnetic stripe card supported
  • Embedded NFC (Optional):  Contactless IC card supported.
  • QR code scanning head (Optional):  Includes decoder chip of QR code, support all barcodes types and common QR code.
  • Camera:  5.0MP, AF, rear-facing camera for scanning various barcodes and QR code, and it’s available for scanning payment code such as WeChat, Alipay etc.


Specification

Introduction

R330 Smart Handheld POS Terminal

Processor

Snapdragon 425, 1.4GHz, Quad-core, Cortex-A53

Memory

2GB RAM,16GB Flash

OS

Android 7.1

Display

5.0'' HD, 1280*720 IPS; G+FF multi-capacitive touch

Key PAD

Power on / off, Volume up / Scanner



Card Slot Support

SIM: 1*SIM Card ( 1.8v / 3.0 v )

Fiscal Module

Support 12C or UART interface 30.0±0.2*30.0±0.2*9.2±0.2 mm







Data Connect

Communication:4G(Full band)/3G/2G



WIFI: 2.4G/5GHz、Support IEEE802.11a/b/g/n



Bluetooth: Support 3.0/4.0, BLE, ibeacon

GPS

Built-in GPS, support A-GPS

Thermal Printer

High-speed 58mm line, 40 mm Roll, low noise, power saving



Camera

Rear Camera: 5.0 M, AF (automatic focus)



Front Camera(Optional): 0.3 M 3P, FF (Fixed-focus)

Battery

Two 18650 cell from samsung ( ICR 18650-26J ) 7.4v / 2600 mAh

Speaker

0.8 W / 85 dB

Earphone-jack

3.5mm standard, support external RFID reader via this connector

Interface

1*Micro USB connector, support OTG USB to RJ45 network

Adaptor

Input: AC 100~240v, 0.5 A, output: 5v / 2 A

Dimensions

198*79*48 (L*W*H) mm

Anti-Drop

1.2 meter

Certification

CE, ROHS

Optional

NFC: ISO/ICE14443, Type A/B, Mifare Card



Support 1D CCD barcode scanning and reading
