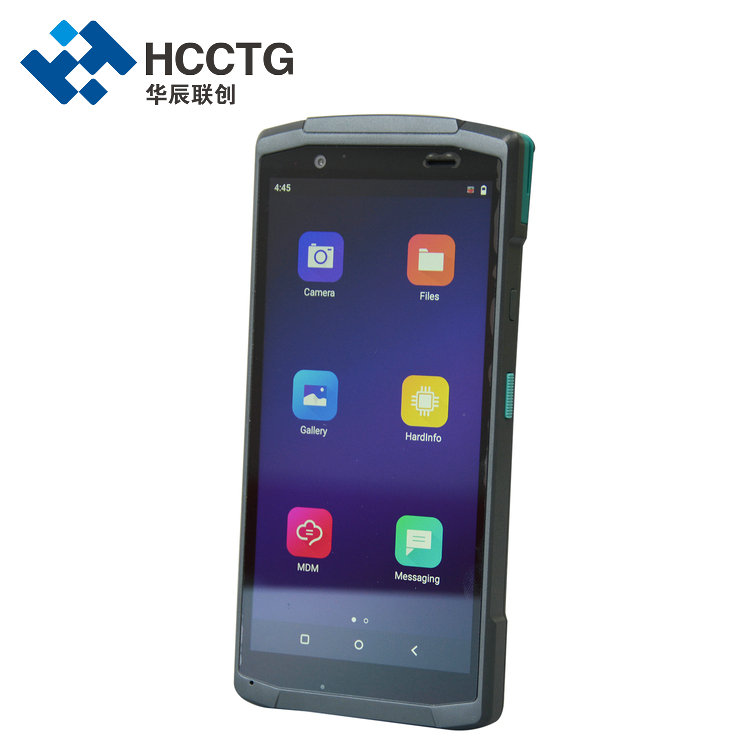

4G 5.7 Inch Barcode Auto Scanner Android POS Terminal With NFC HCC-CS20

HCC-CS20 supports one-stop payment of MSR/IC/NFC,with PCI PTS 5.X, EMV L1&L2,Paypass,Paywave,Amex,TQM certified.

Product Details

Bluetooth Handheld NFC Touch Screen POS Terminal With Barcode Scanner HCC-CS20

CS20 is With handheld technology designed for the restaurant environment, you can enable your team to spend more time with guests, accelerate service, and speed up checkout through tableside ordering and payments.

Features

  • Safedroid OS (based on Android 10.0)
  • Massive memory: 2G RAM + 16G ROM
  • 5.7 inch TFT IPS LCD, resolution 1440*720;
  • Full bands for global coverage: 4G/3G/2G, WLAN, Bluetooth, VPN;
  • Dual camera for quickly QR code scan & Symbol 2D scanner as option;
  • The grand 4.35V/3500mAH battery + extraordinary power management design ensures a full day duration;
  • NFC for full scenarios such as transportation, logistic, and ID control.

Specification

Basic

Characteristics

OS

Safedroid OS (based on Android 10.0)

CPU

Qualcomm Octa-Core ARM Cortex-A53 1.8GHz

ROM

16GB ROM EMMC

RAM

2G RAM LPDDR3

Display

5.7 inch TFT IPS LCD, resolution 720*1440

Panel

Ultra sensitive capacitive touch screen, can work with gloves and wet fingers

Dimensions

163mmX77mmX17.5mm (max 21.8mm)

Weight

300g(Battery included)

Keys

Physical keys: power on/off, Volume + /-, Scan1/ Scan2

Input

Chinese/English, and supports handwriting and soft keyboard

Radio Communication

WIFI

IEEE 802.11 b/a/g/n,support dual Band 2.4GHZ and 5GHZ

Bluetooth

BT 4.2 LE and earlier

4G

European version(Default):

FDD-LTE: B1/B3/B5/B7/B8/B20

TDD-LTE: B38/B39/B40/B41

American version(Optional):

FDD-LTE: B2/B4/B5/B12/B13/B17/B25/B26

TDD-LTE: B41

3G

European version(Default):

WCDMA: B1/B2/B5/B8

TD-SCDMA: B34/B39,

CDMA 1x/EVDO: BC0

American version(Optional):

WCDMA: B2/B4/B5,

CDMA 1X/EVDO: BC1

2G

GSM/GPRS/EDGE: 850/900/1800/1900MHZ

Payment

Magcard reader

Supports ISO7811/7812/7813, and supports triple

track (tracks 1/2/3), bi-directional

Smart Card reader

Supports ISO7816 standard

Contactless Card reader

Supports 14443A / 14443B

Camera

5MP camera with LED flash and auto-focus function

Satellite Positioning

Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo

NFC

13.56MHZ

Audio

Speaker, Microphone,

Interfaces

Micro SD Card Slot

1 PCS support up to 128GB

SIM Card Slot

1 PCS MICRO SIM

PSAM Card Slot

2 PCS Conforms to ISO7816 standard

USB Port

1PCS TYPE C USB

Power

Battery

Li-ion battery, 4.35V/3500mAH

Charging Port

Type C USB Port, 5V DC/2A

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Humidity

5% to 95% Relative Humidity, Non-Condensing

Certification

Electromagnetic

CE, Rohs, FCC, BIS, TQM

Payment

PCI PTS 5.X, EMV L1&L2, Paypass, Paywave

Optional

ESIM Card

Support

Front camera

2 Megapixel Fixed Focal Camera

Barcode Scanner

Symbol 4710 2D Image Engine, Support 1D and 2D symbologies
