2 pin green color screw type terminal block

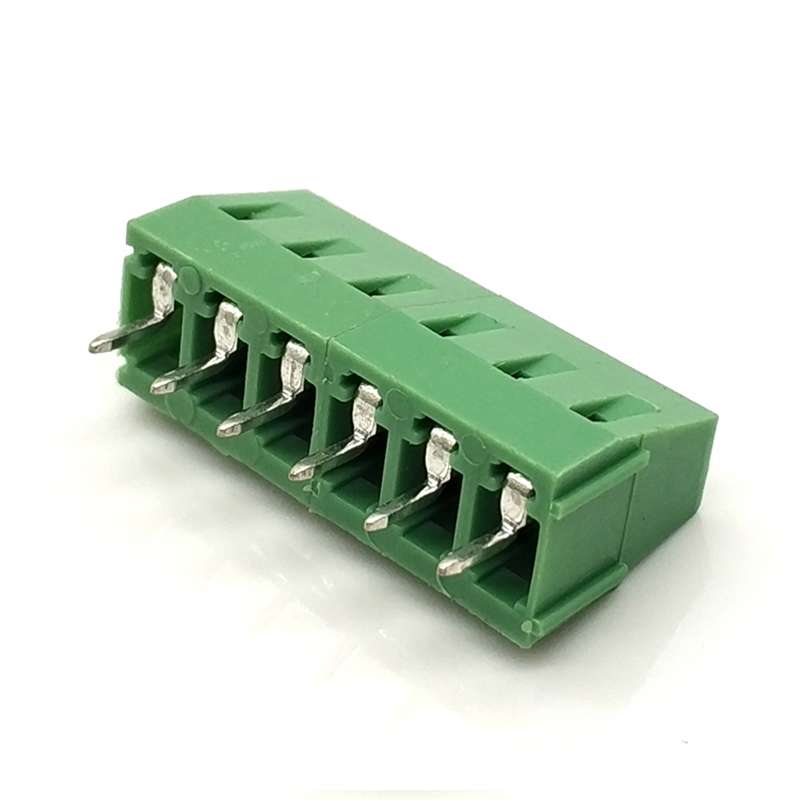

128-5.0-6P
128R-5.0-6P
Description of Screwfix terminal block
The PCB terminal block is an accessory product that realizes electrical connection, and is often used on a PCB. PCB terminal blocks can provide fast and simple connection points for one wire or multiple wires, and can also provide a variety of multi-level blocks to save space and optimize.
Drawing of 128-5.0 Screw type terminal blocks
128-5.0 (pitch 5.0mm DIP terminal block)
128R-5.0 (pitch 5.0mm DIP terminal block)
Specification of Green terminal block
| Product name: | Screw terminal block | Model: | 128(R)-5.0/5.08 |
| Certification: | UL, CE | Rated voltage: | 300V (UL), 250V (IEC) |
| Rated current: | 10A (UL), 24A (IEC) | Wire range: | 22-14 AWG (2.5mm²) |
| Withstand voltage: | AC 2000V/1 Min | Torque: | 0.4 Nm (3.5 Lb-in) |
|
Temperature range: |
-40℃ to +105℃ | Strip length: | 6.0-7.0 mm |
| Pitch: | 5.0/5.08 mm | Poles: | 2P 3P |
| Housing: | PA66 UL94V-0 | Pin header: | Brass, tin plated |
| Wire cage: | Brass, nickel plated | Screw: | M2.5 steel Zinc plated |
Feature of Terminal block 2 pin
Application of terminal blocks manufacturer
There are many types of screw terminal block, and they are mainly used in security, lighting, power supply, elevator, electrical, power and other industries etc.
