Screw terminal block can realize multi-wire connection and maximum contact pressure, with self-locking function.
Screw terminal block can realize multi-wire connection and maximum contact pressure, with self-locking function.
5mm pitch screw pcb terminal block 3 pin
Description of 5mm pitch terminal block
The PCB terminal block is an accessory product that realizes electrical connection, and is often used on a PCB. PCB terminal blocks can provide fast and simple connection points for one wire or multiple wires, and can also provide a variety of multi-level blocks to save space and optimize.

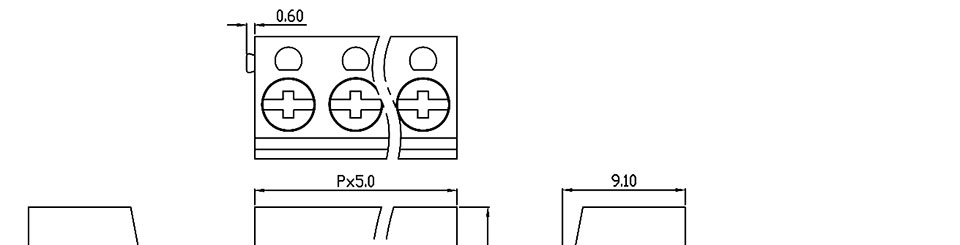

Drawing of 300-5.0 5mm pitch terminal block
Specification of Screw terminal block
| Product name: | Screw terminal block | Model: | 300-5.0 |
| Certification: | UL, CE | Rated voltage: | 300V (UL), 250V (IEC) |
| Rated current: | 16A (UL), 17A (IEC) | Wire range: | 22-14 AWG (1.5mm²) |
| Withstand voltage: | AC2000V/1Min | Torque: | 0.5Nm (4.4Lb-in) |
|
Temperature range: |
-30℃ to +120℃ | Strip length: | 4.5-5.0 mm |
| Pitch: | 5.0 mm | Poles: | 2P 3P |
| Housing: | PBT UL94V-0 | Pin header: | Brass, tin plated |
| Wire cage: | Phosphor bronze, nickel plated | Screw: | M3 steel Zinc plated |
| Pin dimensions: | 4.3 mm | PCB hole diameter: | 1.2 mm |
Feature of Screw terminal block
Application of 5mm pitch terminal block
There are many types of screw terminal block, and they are mainly used in security, lighting, power supply, elevator, electrical, power and other industries etc.
