UCP202 with inner standard size 15mm ,the bearing unit are produced with Chrome steel Gcr15 and cast iron housing and locked by setscrew.
UCP202 with inner standard size 15mm ,the bearing unit are produced with Chrome steel Gcr15 and cast iron housing and locked by setscrew.

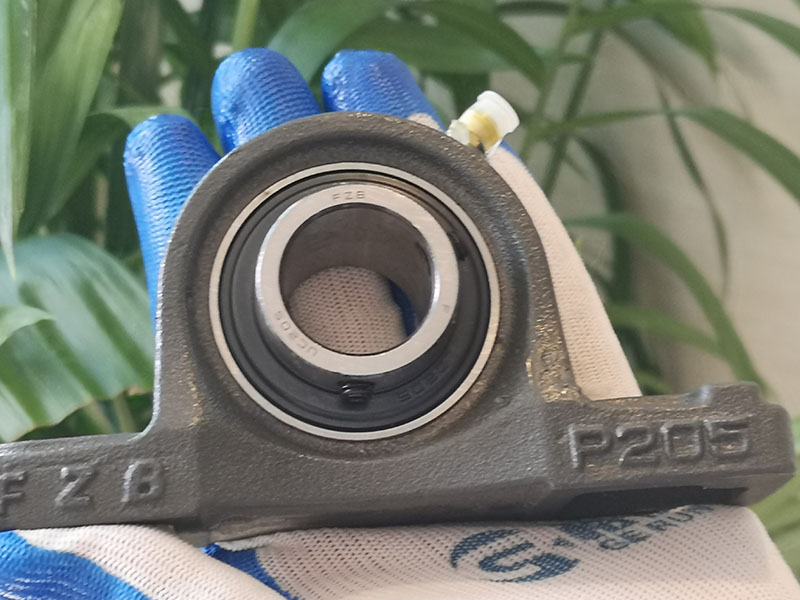

Pillow block bearings are housing combined with radial insert bearing. Most of the outer spherical bearings are made of a spherical surface The structure of bearing unit are various, and the versatility and interchangeability are good.
Mount Bearing UCP202 Specification :
Insert Bearing material :Chrome steel Gcr15 or stainless steel
Housing material : Cast iron
Dimension:
Shaft Dia (d):15 mm
Height (H):30.2mm
Length (L):95mm
Bolt Size:M10
Weight :0.5 kg
China Bearing housing are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments. There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).
The bearing unit is consist of pillow block and insert bearing ,the spherical bearing UC202 with pillow block P series,the new bearing nuit is UCP202. Due to the strong interchangeability of the spherical bearing with seat, the bearing core can be assembled freely in the bearing housing of the same specification and different shape,such as UCT202,UCF202,UCFL202.
Below Here is Mounted Radial Bearing Units No. For Your Reference :
Unit No.
Shaft Dia
Dimensions (mm)
Bolt Size
Weight
d
H
L
J
A
N
N1
H1
Ho
B
S
A3
(kg)
(in)
(mm)
UCWP201
12
30.2
125
95
32
13
18
13
57
27.4
11.5
-
M10
0.72
UCWP202
15
30.2
125
95
32
13
18
13
57
27.4
11.5
-
M10
0.66
UCWP203
17
30.2
125
95
32
13
18
13
57
27.4
11.5
-
M10
0.66
UCP201
12
30.2
127
95
38
13
19
14
61
31
12.7
-
M10
0.76
UCP201-8
1/2
30.2
127
95
38
13
19
14
61
31
12.7
-
M10
0.76
UCP202
15
30.2
127
95
38
13
19
14
61
31
12.7
-
M10
0.74
UCP202-9
9/16
30.2
127
95
38
13
19
14
61
31
12.7
-
M10
0.74
UCP202-10
5/8
30.2
127
95
38
13
19
14
61
31
12.7
-
M10
0.74
UCP203
17
30.2
127
95
38
13
19
14
61
31
12.7
-
M10
0.72
UCP203-11
11/16
30.2
127
95
38
13
19
14
61
31
12.7
-
M10
0.72
UCP204
20
33.3
127
95
38
13
19
14
64
31
12.7
46.4
M10
0.70
UCP204-12
3/4
33.3
127
95
38
13
19
14
64
31
12.7
46.4
M10
0.70
UCP205
25
36.5
140
105
38
13
19
15
71
34.1
14.3
48
M10
0.76
UCP205-14
7/8
36.5
140
105
38
13
19
15
71
34.1
14.3
48
M10
0.76
UCP205-15
15/16
36.5
140
105
38
13
19
15
71
34.1
14.3
48
M10
0.76
UCP205-16
1
36.5
140
105
38
13
19
15
71
34.1
14.3
48
M10
0.76
UCP206
30
42.9
160
121
44
17
21
16
82
38.1
15.9
52
M14
1.25
UCP206-17
1-1/16
42.9
160
121
44
17
21
16
82
38.1
15.9
52
M14
1.25
UCP206-19
1-3/16
42.9
160
121
44
17
21
16
82
38.1
15.9
52
M14
1.25
(mm)
We also can provide other brand bearing housing such as ASAHI Pillow Block Bearing.
UCP202 Bearing Can Be Widely Used In:
Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:
1)Agriculture,
2)Light textile,
3)Mining,
4)Food &beverage,
5)Pharmaceutical,
6)Chemical processing,
7)Printing,
8)Dyeing,
9)Various kinds of conveying and rolling devices.
