INA Pillow Block Bearings PME25-XL-N Bearing Block ME05 GRAE25-XL-NPP-B


Germany INA Housing Units PME25-XL-N with radial insert ball bearing GRAE25-XL-NPP-B with size 25*115*31mm ,the housing material is Cast iron ,and the insert bearing material is Chrome steel





Product Details

Housing units are the parts  ready-to-fit ,they are consist of cast iron  housings and the Chrome steel radial insert ball bearings,this new bearing housing can be work very well in reliability with all different operating environment, the bearings and housings are matched to each other. with the spherical outside surface of the bearing outer ring andthe concave housing bore, bearing housing is  for staticangular misalignment of the shaft .The units are used predominantly as locating bearings, and the suitableas non-locating bearings under low loads and speeds.The housings are screw mounted on the adjacent construction.


Original INA Bearing Unit PME25-XL-N Introduction :

Bearing number :PME25-XL-N

Type : Four-bolt flanged housing units

Match insert ball bearing : INA GRAE25-XL-NPP-B

Size :25*115*31mm

Material : housing with cast iron ,inset ball bearing with Chrome steel

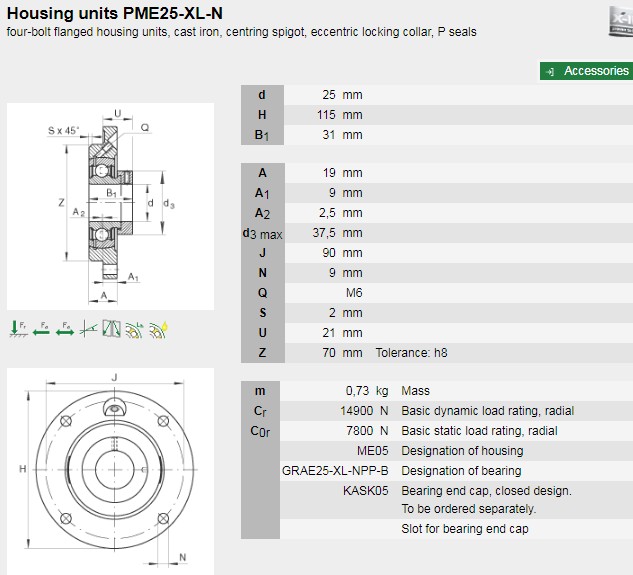

INA PILLOW BLOCK BEARING


INA Housing Unit PME Number For Your Reference :

Housing Units No.: d(mm) H(mm) B1(mm)
PME20-XL-N  20 100 31
PME25-XL-N  25 115 31
PME30-XL-N  30 125 35.8
PME35-XL-N  35 135 39
PME40-XL-N  40 145 43.8
PME45-XL 45 155 43.8
PME50-XL-N  50 165 43.8
PME55-XL 55 185 48.4
PME60-XL-N  60 195 53.1


INA Bearing Unit ,Bearing Housing ,And Radial Insert Ball Beaing March :

Units Housing  Radial insert ball bearing
PME20-N GG.ME04-N GRAE20-NPP-B
PME20-N GG.ME04-N GE20-KRR-B
TME20-N GG.ME04-N GE20-KTT-B
PMEY20-N GG.ME04-N GAY20-NPP-B
RMEY20-N GG.ME04-N GYE20-KRR-B
PME25-N GG.ME05-N GRAE25-NPP-B
PME25-N GG.ME05-N GE25-KRR-B
TME25-N GG.ME05-N GE25-KTT-B
PMEY25-N GG.ME05-N GAY25-NPP-B
RME25-N GG.ME05-N GYE25-KRR-B
PME30-N GG.ME06-N GRAE30-NPP-B
PME30-N GG.ME06-N GE30-KRR-B
TME30-N GG.ME06-N GE30-KTT-B
PMEY30-N GG.ME06-N GAY30-NPP-B
RME30-N GG.ME06-N GYE30-KRR-B
PME35-N GG.ME07-N GRAE35-NPP-B
PME35-N GG.ME07-N GE35-KRR-B
TME35-N GG.ME07-N GE35-KTT-B
PMEY35-N GG.ME07-N GAY35-NPP-B
RME35-N GG.ME07-N GYE35-KRR-B
PME40-N GG.ME08-N GRAE40-NPP-B
PME40-N GG.ME08-N GE40-KRR-B

We also can produe INA Ball Bearing spherical outer ring,location by eccentric locking collar,P seals on both sides as below series :

GRAE12NPPB,GRAE15NPPB,GRAE17NPPB,GRAE20NPPB,GRAE35NPPB,GRAE40NPPB,GRAE45NPPB,GRAE50NPPB

Bearing Series For shaft diameter in mm Features
GRAE..-NPP-B 12-60mm Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RAE..-NPP-B 12-50mm Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RALE..-NPP-B 20-30mm Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RA..-NPP-B 5/8''-1 1/2'' Spherical outer ring,location by eccentric locking collar ,P seals on both sides,inch size bore
GE..-KRR-B 17-120 Spherical outer ring,location by eccentric locking collar ,R seals on both sides


Application Of  INA Bearing Units  :


INA Bearing can be widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.


1. With high precision INA Bearing Unit can be use in  Auto wheel hub, Auto engine, Auto axle.

2. Agricultural machinery, Rotary plow bearings, Tractor, Water pump, Oil engine harvester, Seeder, Tricycle, Farm vehicle, Cultivator

3.Engineering machinery, Excavator, Dozer, Paver, Loader, Hoisting machinery, Piling soil machinery

4. Steel mill machinery, Oil field machinery, Motorship machinery

5. Hardware tool, Electric power tool, Household appliance industry

6. Electronic toys, Fitness equipment, Building machinery

7. Series Of Pumps, Antiseptic Pump, Water pump, Submersible pump, Sewage pump

INA Bearing Application
