100 MWH Ess Containerized Battery Power Storage Stock Systems，which includes a monitoring system, battery management unit, particular fire protection system, special air conditioner, energy storage converter, and isolation transformer developed for the needs of the mobile energy storage market.
Weight :
22 TonDimension :
12192mm(L)*2438mm( W)*2591mm(H)Rated frequency :
50HzVoltage range :
380±15%VRated capacity :
2500KWHRated Power :
1000KW
The cell adopts lithium iron phosphate battery-battery LFP FFH4D3, capacity 100Ah, nominal voltage 3.2V, operating voltage range 2.5-3.65V, battery monthly self-discharge rate ≤3%, The cell has passed the national strength test of GBT 31484-2015, GBT 31485-2015 and GBT 31486-2015, and its safety performance meets the national standard.
The standard energy storage module is composed of 24 single batteries, the specification is 2P12S, the power is 7.68kwh, the nominal voltage is 38.4V, the working voltage range is 30-43.8V, and the mass is about 75kg.
Energy Storage Container integrated design for easy delivery
Outdoor container standard shell, reliable and durable, suitable for complex weather conditions

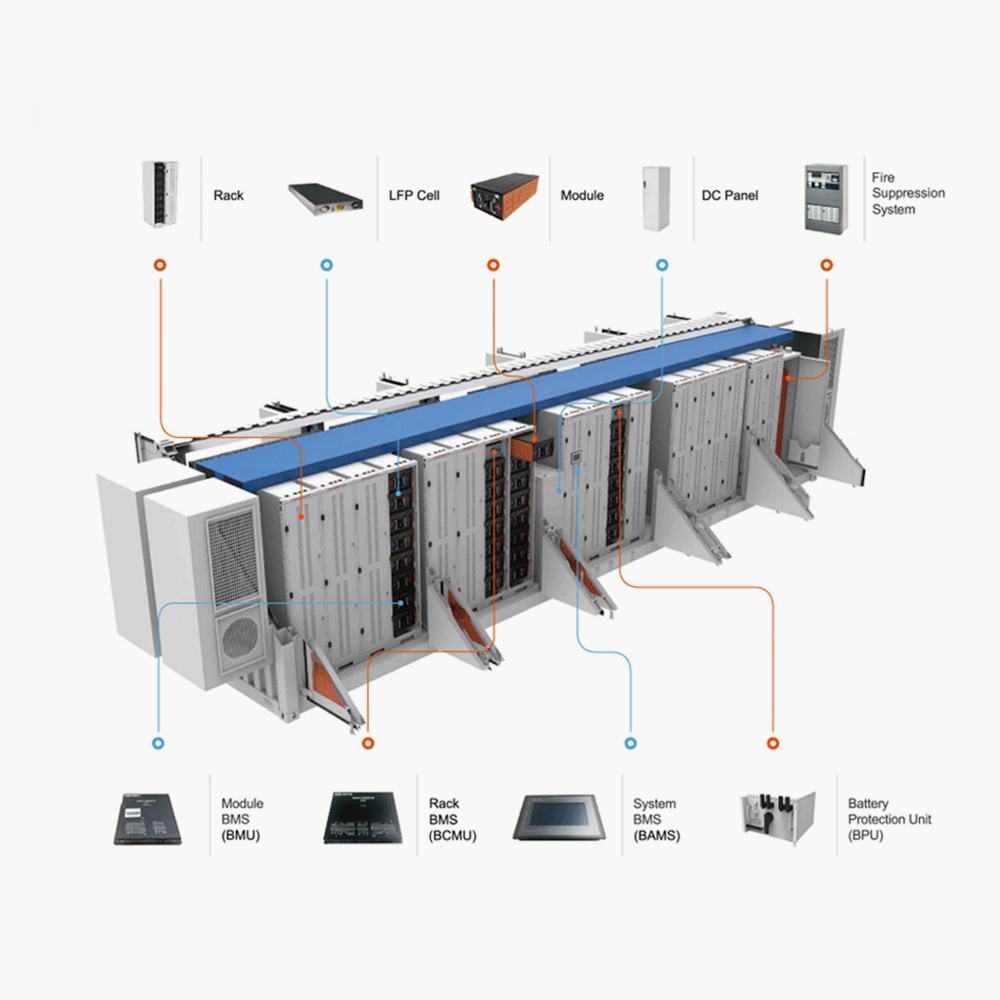

Energy Storage Container have complete fire Suppression system and power supply system (Rack, DC panel, Fire Suppression System, Module BMS, Rack BMS, System BMS, Battery Protection Unit, HVAC, Power Conversion System)
