The battery energy storage system (BESS) containers are based on a modular design. They can be configured to match the required power and capacity requirements of client’s application.
Weight :
22 TonDimension :
12192mm(L)*2438mm( W)*2591mm(H)Rated frequency :
50HzVoltage range :
380±15%VRated Power :
1000KWRated capacity :
2500KWH
The battery core adopts lithium iron phosphate battery-LFP 48173170E, the capacity is 120Ah, the nominal voltage is 3.2V, the working voltage range is 2.5~3.65V, the monthly self-discharge rate of the battery is ≤3%.
The energy storage standard module consists of 24 single cells, the specification is 2P12S, the power is 9.216kWh, the nominal voltage is 38.4V, the working voltage range is 33.6~43.2V, and the mass is about 85kg.
The battery cluster consists of 18 energy storage standard modules with a specification of 2P216S, a power of 165.888kWh, a nominal voltage of 691.2V, an operating voltage range of 604.8V-766.8V, and a total mass of approximately 1700kg.

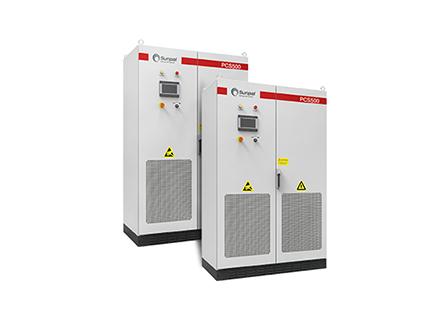

Bidirectional battery inverter 500KW, can be used alone or with solar charger and other accessories for different application scenario. Paralleling multiple units, Flexible Configuration, Programmable working mode, Support remote control of DG, Touchscreen LCD.
Our containerised energy storage system (BESS) is the perfect solution for large-scale energy storage projects. The energy storage containers can be used in the integration of various storage technologies and for different purposes.
