XS12 Micro Jack Connector Waterproof Connector

XS12 electric connector has small and beautiful appearance, and has two structures: push in steel ball locking and thread locking. It is suitable for AC and DC circuit connection of various instruments and electronic equipment
Product Details

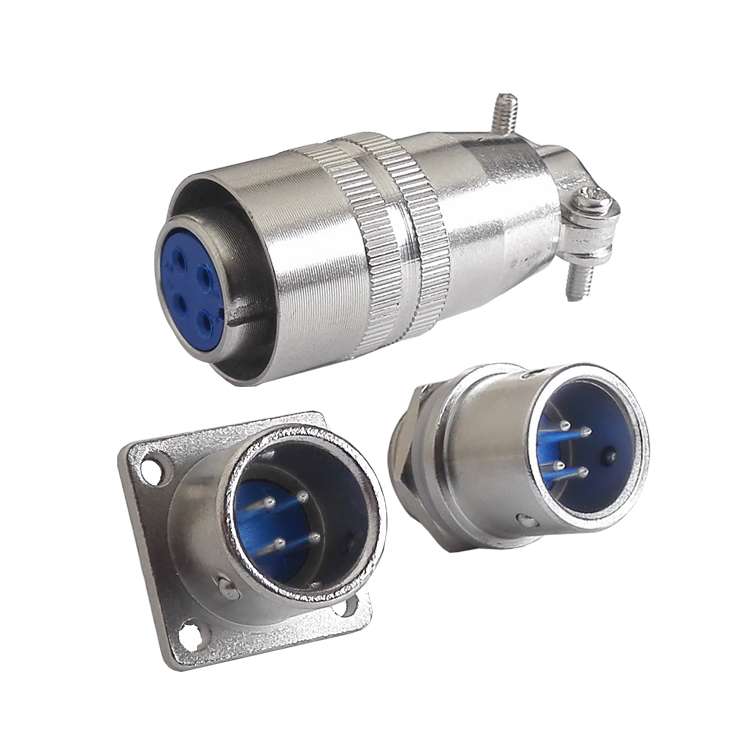

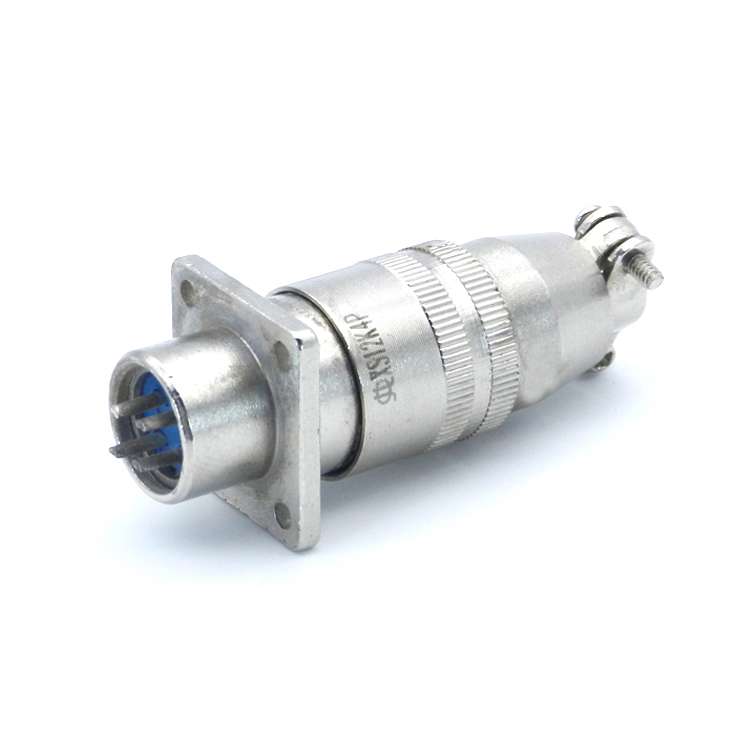

                                            XS12 Micro Jack Connector Waterproof Connector


The installation size of XS12 aviation plug is 12mm. The contact pair has 3 cores, 4 cores, 5 cores, 7 cores and 4 types. The outer shape is small and beautiful. The connection type is push-type steel ball locking, which is quick and convenient to insert and pull. The product is suitable for the connection of various instruments, electronic equipment and other AC and DC circuits, and the performance is stable.


Main technical performance :

Product name XS12 plug IP65 waterproof electric connector
Coupling Push-Pull
Shell material Zinc alloys with nikelplate
Contact material copper( silver/ gold plated)
Insert material bakelite
Rated current/voltage 5A-125V, 16A-200V
Cable diameter ≤Ф 7.5 mm~ ≤Ф 8.3 mm
Assemble way assemble board
Solder cup mouth aperture 0.9mm, 1mm
Solder inter diameter 1mm, 1.5mm
Operation limit voltage(AC.V.rms) 200V, 250V
Mating cycle 500
Temperature -20℃~+85℃
OEM Yes,we accept
Delivery time 3-45 days
