X series small circular electrical metal screw connector
Feature of small circular connector
Small size, light weight, reliable in contact, good in insulation, resistant to temperature and humidity
Wiring method: Screw connection
Two combination: male plug & female socket, or female plug & male socket
There are two installation methods: panel mount (4 hole flange type) and cable type.
Specification of X series metal connector
| Temperature range: |
-55℃~+100℃ |
Humidity: |
40±2℃ 90~95% |
| Connecting mode: | Screw connect |
Vibration: |
10-2000Hz, Acceleration 147m/s² |
|
Impact: |
Acceleration 490m/s² |
Constant Acceleration: |
Acceleration 294m/s² |
| Shock: |
Acceleration 490m/s² |
Mechanical life: |
500 times |
| Rated current: | 3A | Rated voltage: |
500V |
| Withstand voltage: | 1500V | Contact resistance: | ≤ 5mΩ |
| Insulation resistance: | ≥ 1000MΩ |
|
|
Ordering code of circular electrical connectors
| Number |
Classified features and contents |
Marks |
|
| 1 |
Circular connector type |
X | |
| 2 |
Matching diameter of socket and panel (mm) 12, 14, 22, 24, 30 |
Mark the Diameter size |
|
| 3 | Male | J | |
| Female | K | ||
| 4 | Contact number (3, 4, 5, 7, 10, 12, 19, 20, 26, 32, 42, 55) |
Mark the pin number |
|
| 5 | Plug | No marked | |
| Sealed Socket | sealed | M | |
| unsealed | A | ||
| 6 |
Cable sleeve form |
Straight | P |
|
Bending type |
R | ||
Eg: X14J7A- 14mm diameter, male, 7 pin, socket.
X14K7P- 14mm diameter, female, 7 pin, straight plug

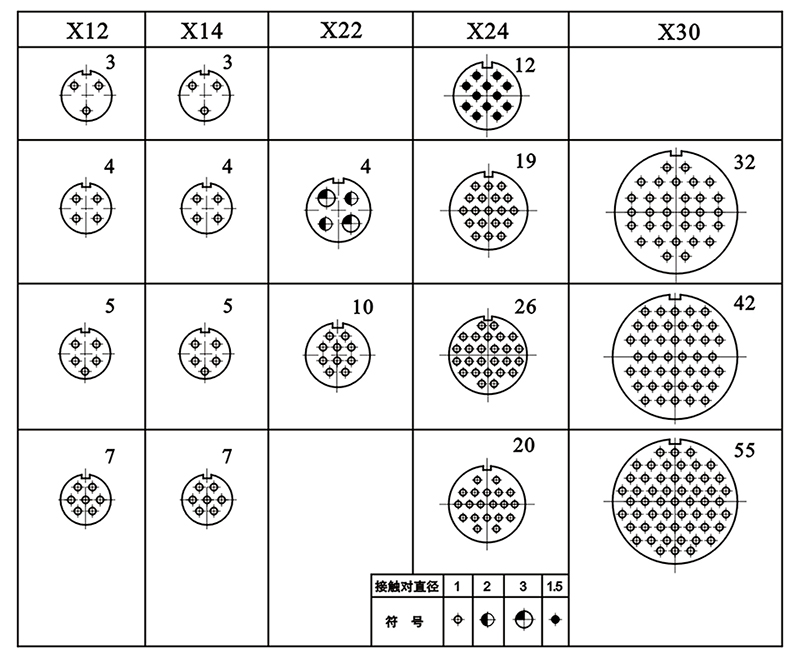

The hole place arrange (comply with the pin direction)
Dimension of metal screw connector
| Model | D | L1 | L2 | L3 | L4 | L | B | A | φ | D1 | D2 | d |
| X12 | M14x0.75 | 43 | 30 | 20 | 8 |
|
13 | 18 | 2.4 | φ12 | 18 | 6.5 |
| X14 | M16x1 | 53 | 40 | 23 | 9 | 69 | 17 | 24 | 3.5 | M14x1 left | 21 | 8.5 |
| X22 |
M24x1 |
62 | 48 | 24 | 9 | 87 | 23 | 30 | 3.5 |
M22x1 left |
29 | 14 |
| X24 |
M27x1.5 |
62 | 48 | 24 | 8 | 87 | 26 | 33 | 3.5 |
M24x1 left |
33 | 18 |
| X30 |
M33x1.5 |
62 | 48 | 24 | 8 | 87 | 31 | 38 | 3.5 |
M30x1 left |
39 | 24 |
 |
||||||||||||
*For more information, please contact us by email or through any contact information on the webpage.
