Wireless Handheld 2D Barcode Scanner For Small Business

It's suitable for various scenarios, such as POS, customer service desk, ticket windows, O2O and more!

Product Details

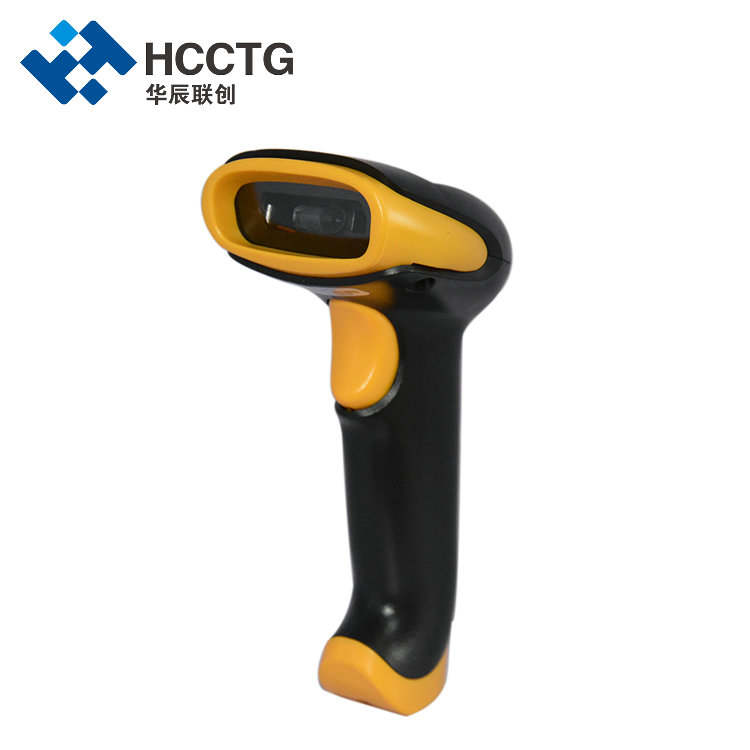

433MHz 2D Wireless Barcode Scanner handheld scanning gun HS-6412

Quickly identify the screen 1D/2D code
High-density lithium battery with low power consumption, long standby time
Base wireless inductive charging, support universal USB charging, mobile phone charger, computer USB interface
Stores nearly 5,000 (20 characters/bar) strips Code information
The transmission distance is 100m(Open Space)
Compatible with multiple systems

Specification

Performance parameter	Sensor	640×480 CMOS
	light source	Background light source: WhiteLED Positioning light source: RedLED
	Reading accuracy	≥4mil
	Scanningangle	Roll 360°,Pitch ± 55°,Skew ± 55°°
	Field of view	Level34°,ertical26°
	Reading code system 2D/1D	QR Code, Data Matrix, PDF417,Aztec, Maxicode,Chinese Sensilbe Code,EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,Interleaved 2 of 5, ISBN,ISSN, MSI-Plessey,TF-6,ITF-14, GS1 Databar,GS1 Composite Code,Code 11,Industrial 25,Standard 25,Plessey,Matrix 2 of 5
	Host size（LWH）	155mm65mm95mm
	Package Size（LWH）	200mm130mm105mm
	Shell material	ABS+PC
	LED indication	Red,Blue
	System interface	USB,RS232 ,Virtual serial port
Wireless parameter	Wireless working frequency band	433MHz ISM Frequency band
Wireless parameter	Transmission distance	100M(Open Space)With storage more than 10000+
Environmental parameters	Seismic resistance	100times/1M(wooden floor)
	Operating temperature	-10℃－50℃
	humidity	5%-95%(non-condensing)
	Ambient brightness	0-100.000LUX
Power parameter	power supply	Built-in 3.7V 2000mAh lithium battery
	Charging time	3-4hours
	Working current	180mA
	Working power	0.6W 170mA/3.7V
Typical Depth of Field	Bar code density4mil Code39 6.67mil PDF417 10mil Data Matrix 13milEAN-13 20milQR Code	Scan depth of field 40-90mm 30-130mm 50-90mm 50-200mm 25-240mm
