Weatherproof metal push button switch IP67 PCB mount
A 16mm push button switch is a momentary or self-locking switch which causes a temporary change in the state of an electrical circuit only while the switch is physically actuated.
Description of 16mm PushButton Switch
| Features of Stainless Steel Push Button |
Bold pin: 2.8*0.5 thick pin, more solid, not easy to damage when the plug is connected or soldered
All silver contacts: strong heat dissipation, good electrical conductivity, and long service life
Environmentally friendly flame-retardant: PC plastic is used, and no return material is rejected, V0-class flame-retardant
IP67 waterproof: built-in waterproof ring, made of medical silicone material, safe and reliable. IP67, IK10, dustproof, waterproof, anti-vandalism
| Specifications of Push Button Switch |
| Product Name: |
16mm push button switch with led |
Product Model: | 16QE |
| Switch Rating: | 5A/250V AC | Terminal Type: | 2.8x0.5 J pin terminal |
| Switch Function: | 1NO1NC, Momentary/Self-locking | Environment Temperature: | -20℃~+55℃ |
| Contact Resistance: | ≤50mΩ | Insulation Resistance: | ≥1000MΩ |
| Panel Thickness: | 1~10mm | Protection Grade: | IP65/IP67, IK10 |
| Contact Material: | Sliver Alloy | Button Material: | Stainless steel, Zn-Al alloy(any color) |
| Body Material: | Brass nickel plated, Stainless steel, Zn-Al alloy(any color) | Base Material: | PBT |
| Lamp Voltage: | 2V, 3V, 5V, 6V, 12V, 24V, 36V, 48V, 110V, 220V | Lamp color: | Red, Orange, White, Blue, Green, Yellow (dual-color led, tri-color led) |

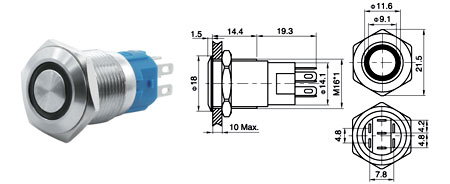

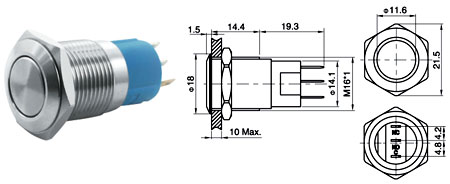

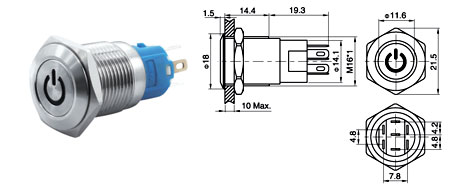

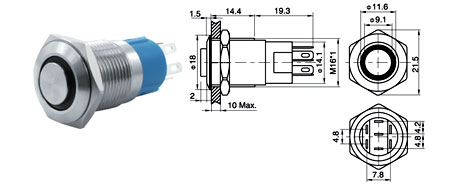

| Drawing of 120V Push Button Switch |
 |
|
 |
| 16QE-F11Z |
|
16QE-H11Z |
 |
|
 |
| 16QE-F11Z/E |
|
16QE-H11Z/V |
 |
|
 |
|
16QE-F11Z/EV |
|
16QE-H11Z/EV |
 |
|
 |
|
16QE-F11Z/V |
|
16QE-H11Z/V |
| Application of 16mm Push Button |
16mm push button switch can be applied to car motorcycle modification, electric equipment, appliance, machine, home Lamps etc.
