The 1000V DC solar fuse connector is simple and convenient to install on site, and the IP67 protection level ensures higher connection safety.
The 1000V DC solar fuse connector is simple and convenient to install on site, and the IP67 protection level ensures higher connection safety.
Rated Voltage :
1000V DCRated Current :
4 AmApplicable Cable O.D. :
2.5-6.0mm²

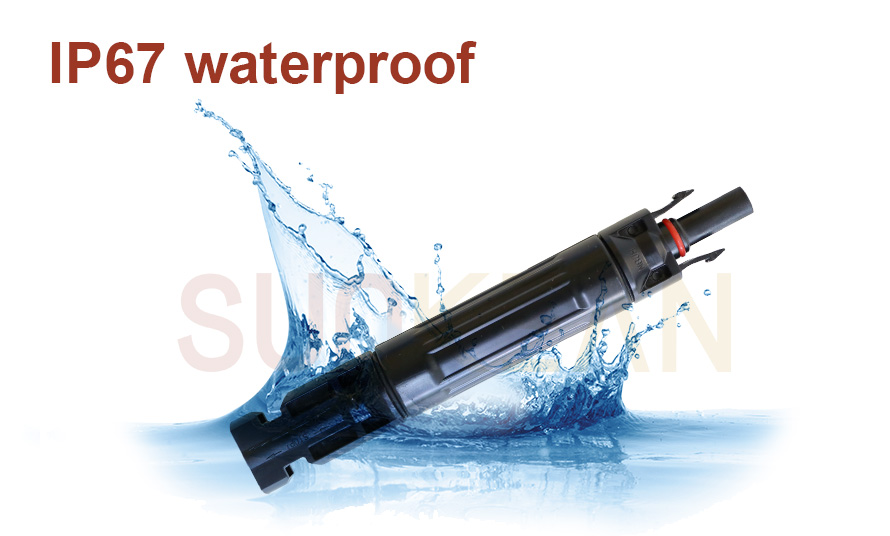

Waterproof high quality Solar DC PV fuse holder 4A PV solar fuse connector
Fuse Connector is compatible with MC4, and suitable to solar cable, 2.5mm, 4mm and 6mm. Advantage is the inline fuse can be replaced, quickly and reliable connection,UV resistance and IP67 waterproof, can be working outdoor for many years.
Product Information:
| Rated current |
4 Amp |
|
Applicable temperature range |
-40°C~+85°C |
|
Rated voltages |
1000V DC |
| Degree of protection | IP67 |
| Contact resistance |
≤0.5mΩ |
|
Contact material |
Copper with tin plated |
|
Insulation material |
PPO |
|
Locking system |
Snap-in (nur / only MC4) |
|
Flame class |
UL94-HB / UL94-V0 |
|
Applicable wire size |
2.5 to 6.0mm² |
|
Protection class |
II |
|
Application class |
Class A |
|
Diode/Fuse type |
Schottky PV fuse |
Product Features:
------Ease of Use
*Compatible with PV cables with different insulation diameters.
*Designed for a wide range of DC applications.
*Simple plug-and-play.
*Auto-lock equipment of male and female points render connections easy and reliable.
------Safe
*Waterproof – IP67 Class Protection.
*Insulation material PPO.
*High current-carrying capacity
*Protection Class II
*Connector adopts touch and insertion of reed with inner-knob type
Packing & Delivery:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, solar cables, solar extension cables , solar energy off grid, solar hot water panels, inverters etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
