Waterproof circular USB 2.0 connector a type

Waterproof usb connector is applicable to data-signal. There are many types, like usb 2.0, usb 3.0, usb with cable or with cable,etc.

Request A Quote

Product Details

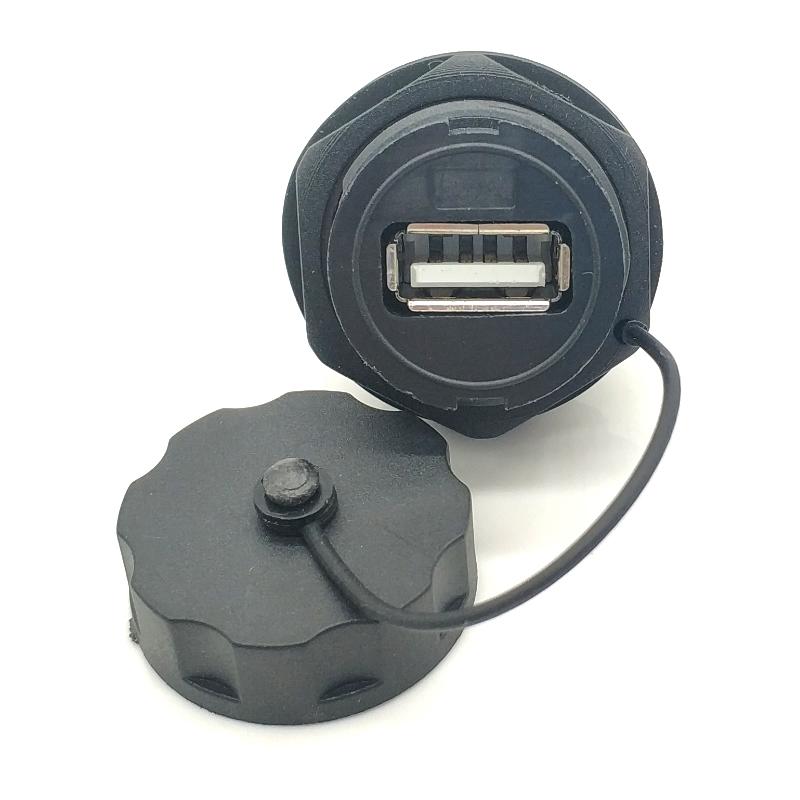

Waterproof circular USB 2.0 connector a type

Feature of Circular usb connector

Front nut installation method
IP67 protection level
Bayonet connection design
There are pin interface and USB female interface to choose

Specification of Circular usb connector

Product name:	USB 2.0 connector	Contact resistance:	30mΩ
Withstand voltage:	500V/AC	Insulation resistance:	500MΩ
Durability:	500 mating cycles	Cable OD.:	φ5.5mm~φ7mm
Rated current:	1.5A	Receptacle housing:	PBT, Black
Overmolding:	PVC, Black	Contact:	Copper Alloy
Coupling ring:	PA66, Black	Operating temperature:	-40℃ to 80℃
Performance:	USB 2.0 or 3.0	Industrial seal rating:	IP67

USB waterproof connector can be customized accessories

USB waterproof connector can choose ordinary male or rubber-coated male, the length of the cable can be customized.

Application of USB 2.0 waterproof connector

USB2.0 waterproof connector Because of its convenient connection and convenient use, it is widely used in data transmission of computers, external devices and other devices

*For more information, please contact us by email or through any contact information on the webpage.
